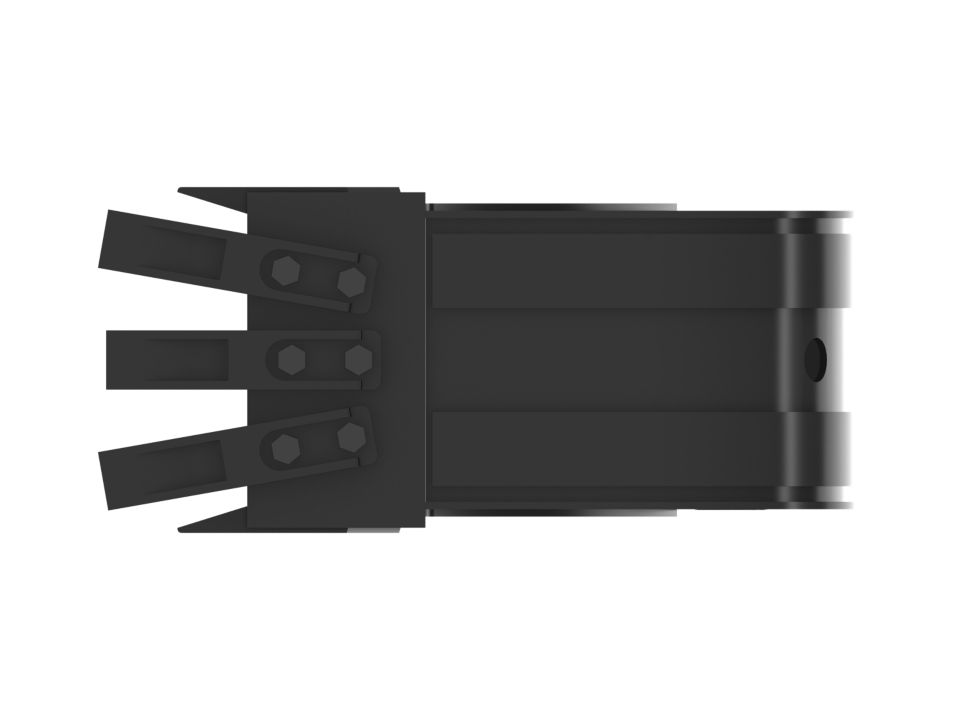

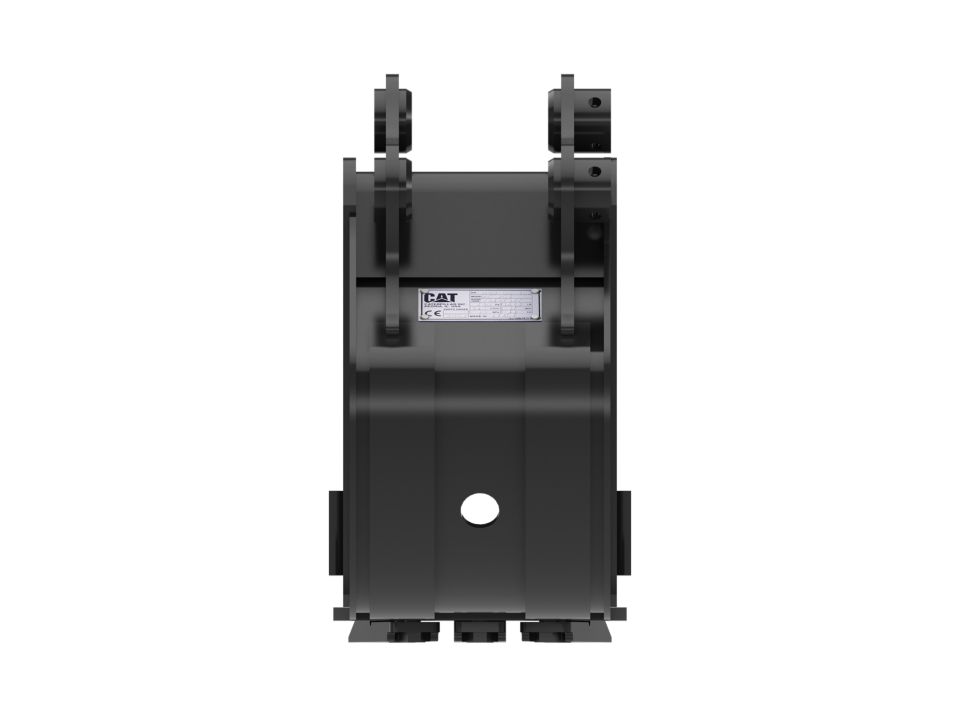

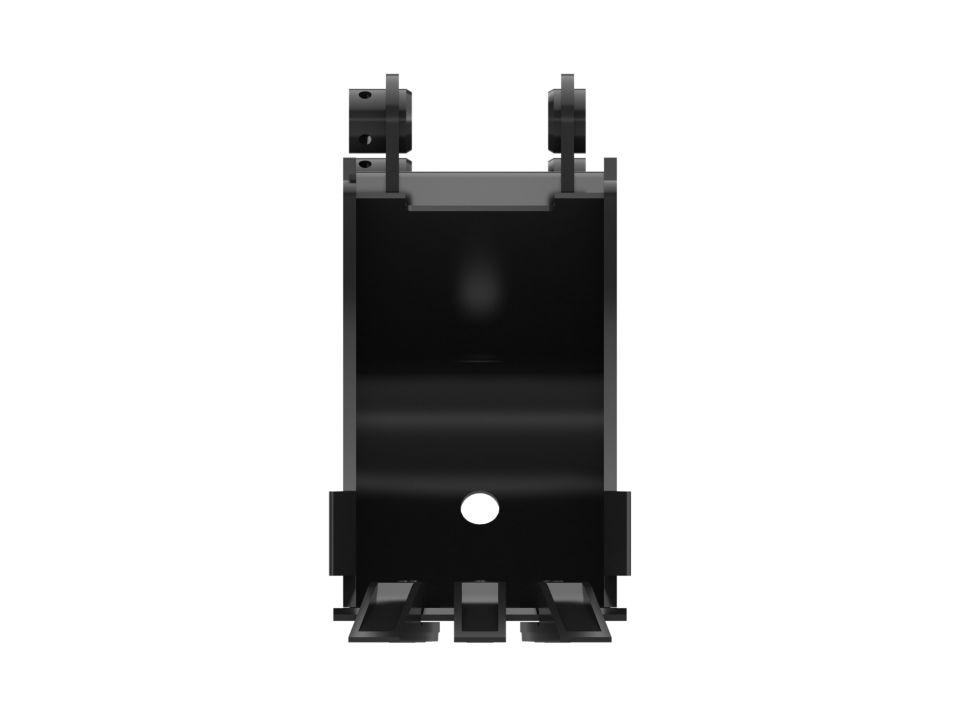

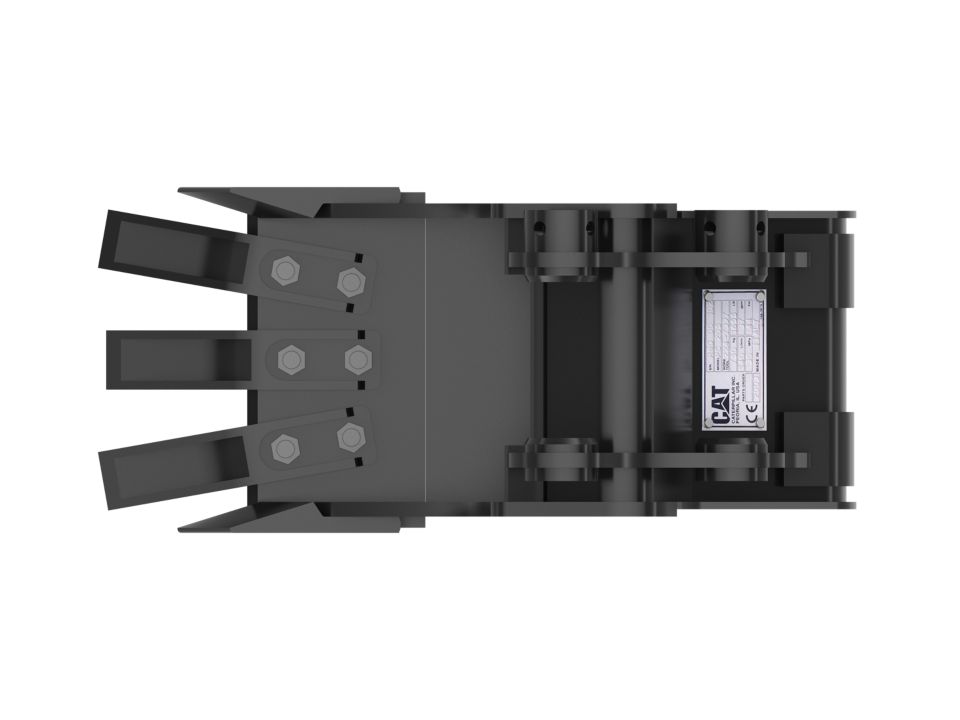

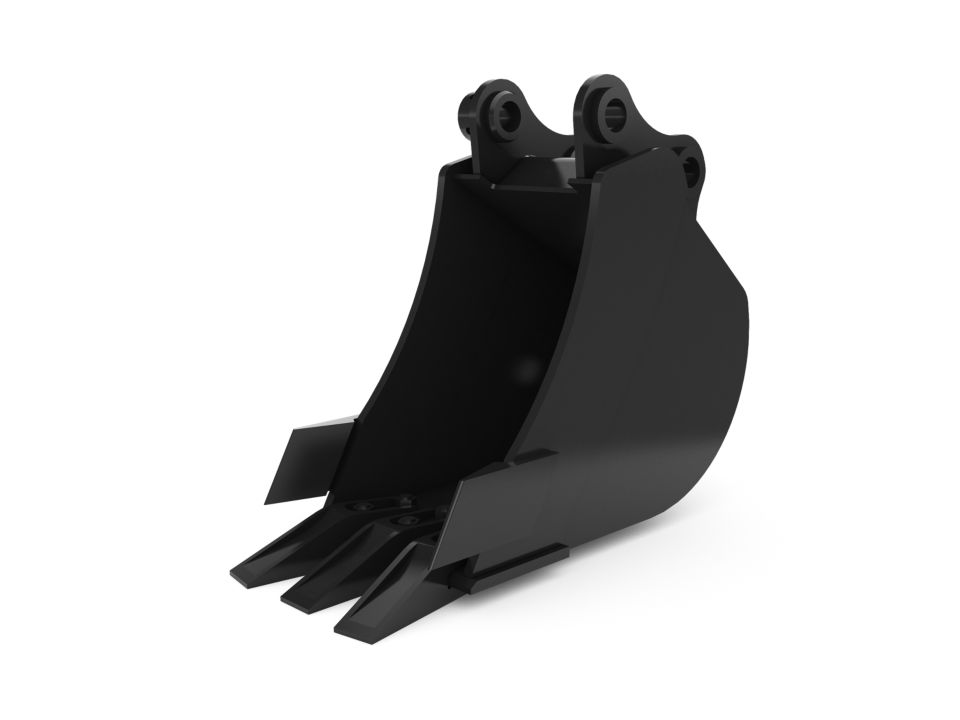

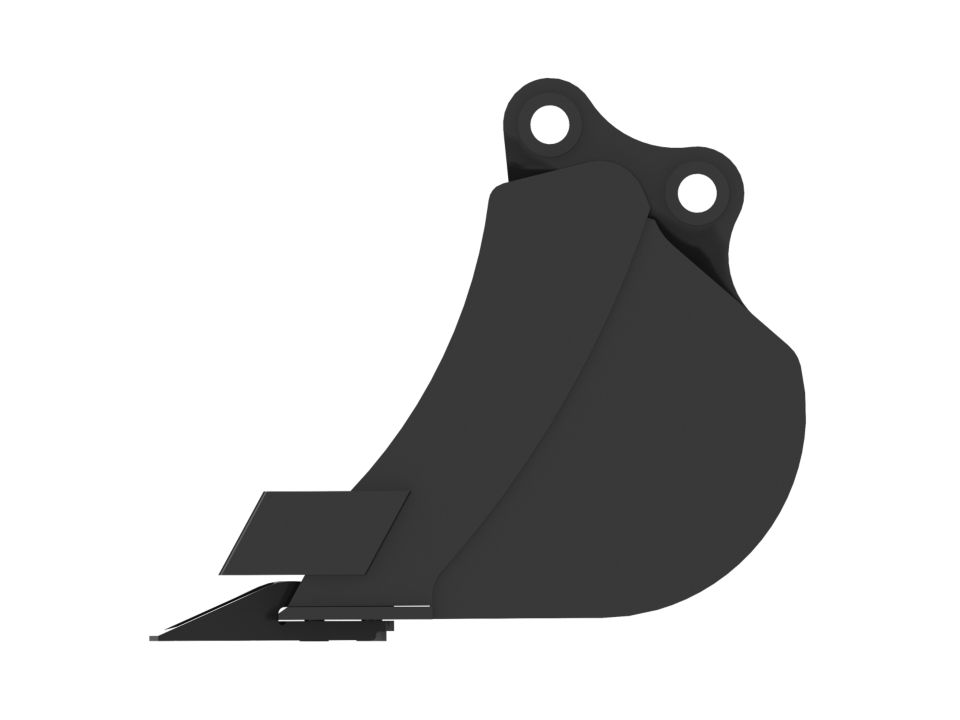

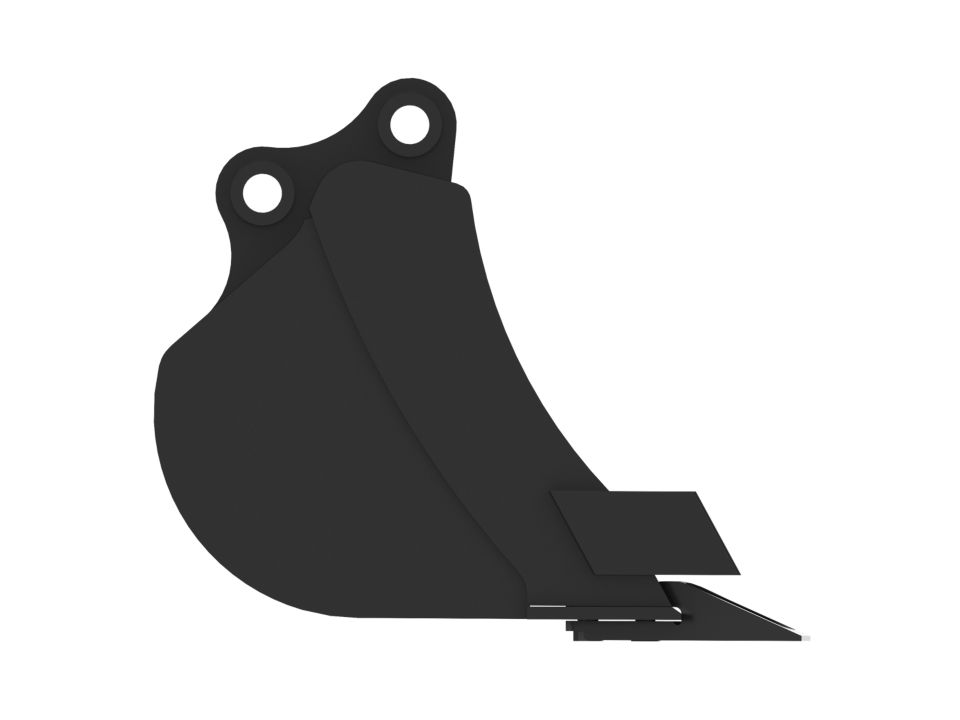

230 mm (9 in), 17 L (0.6 ft3), Pin On, Bolt-On Teeth

These buckets are ideal for utility trenching, general excavating and back-filling in soft to moderate ground.

Specifications

Width

9.1 in 230 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.1","MetricUnit":"mm","MetricValue":"230","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

0.6 ft³ 17 l
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft³","EnglishValue":"0.6","MetricUnit":"l","MetricValue":"17","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

64.8 lb 29.39 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"64.8","MetricUnit":"kg","MetricValue":"29.39","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Base Edge Thickness

0.4 in 10 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.4","MetricUnit":"mm","MetricValue":"10","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Tip Radius

20 in 508.5 mm
{"Name":"Tip Radius","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":"in","EnglishValue":"20","MetricUnit":"mm","MetricValue":"508.5","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Interface Type

Pin On
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}

Benefits

Designed for a wide variety of applications and materials.

Formed back wrapper design enhances bucket loadability and production.

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
