BP25, 12V or 24V

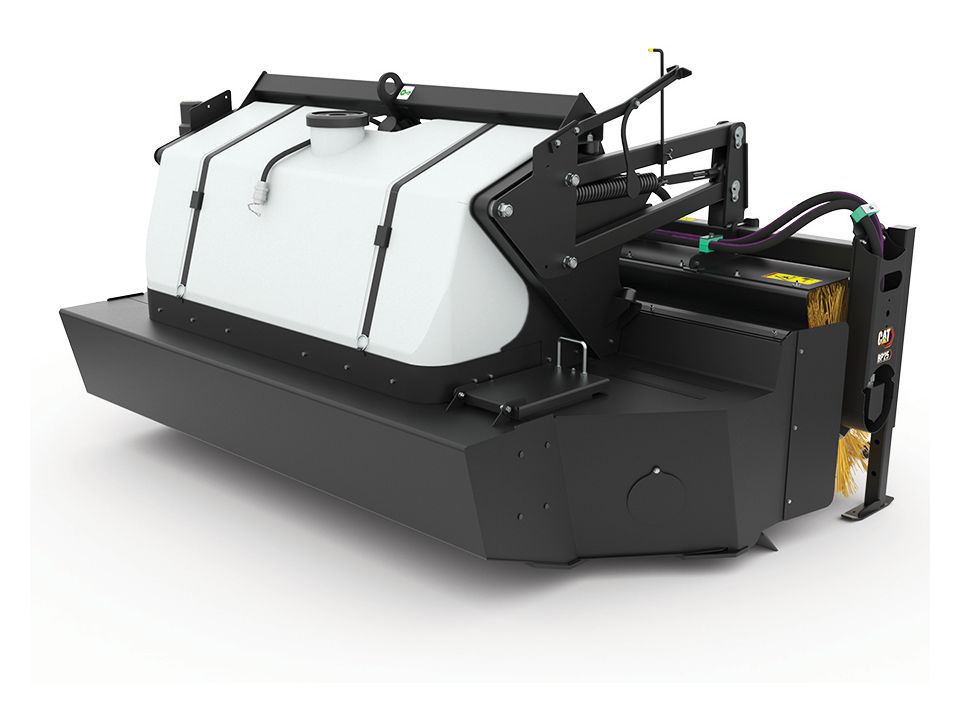

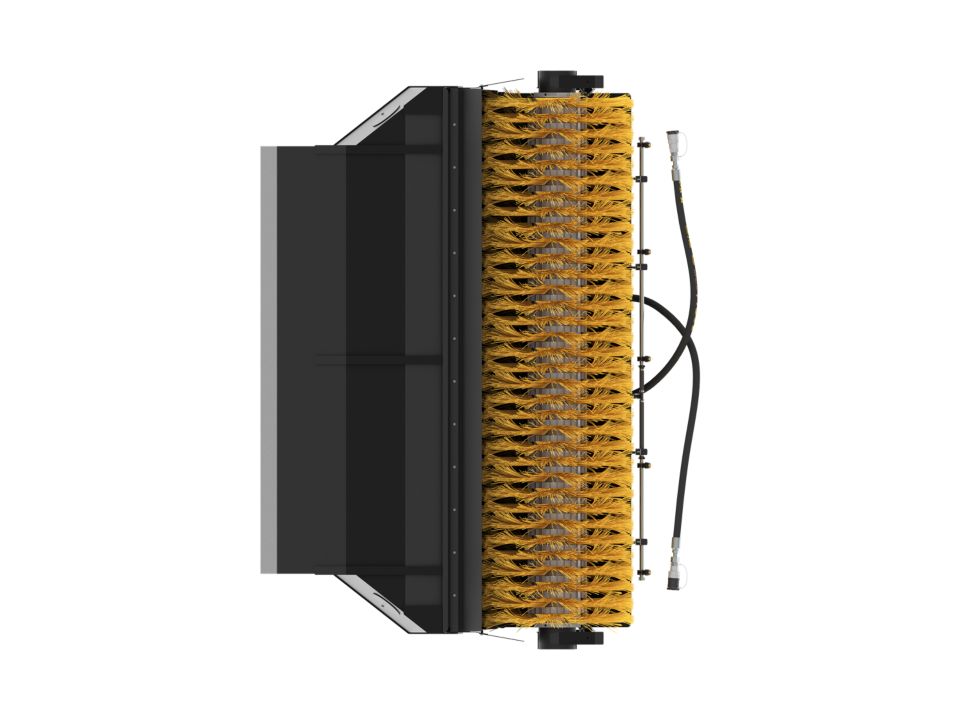

Pickup Brooms for Cat® Skid Steer Loaders, Backhoe Loaders, Integrated Toolcarriers, and Wheel Loaders sweep and deposit materials into an integrated hopper for easy removal and dumping.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

106.3 in 2700 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"106.3","MetricUnit":"mm","MetricValue":"2700","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Sweeping Width

98.4 in 2500 mm
{"Name":"Sweeping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"98.4","MetricUnit":"mm","MetricValue":"2500","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Brush Diameter

27.6 in 700 mm
{"Name":"Brush Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"27.6","MetricUnit":"mm","MetricValue":"700","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

3rd Valve
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"3rd Valve","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Height

51.2 in 1300 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51.2","MetricUnit":"mm","MetricValue":"1300","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

72 in 1830 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72","MetricUnit":"mm","MetricValue":"1830","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

1433 lb 650 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1433","MetricUnit":"kg","MetricValue":"650","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

40-150 L/min (11-40 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"40-150 L/min (11-40 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

150-260 bar (2176-3771 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"150-260 bar (2176-3771 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

11.9 in³/rev 195 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"11.9","MetricUnit":"cm³/rev","MetricValue":"195","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Brush Speed at Maximum Flow

385 RPM
{"Name":"Brush Speed at Maximum Flow","SpecificationId":null,"TextValue":"385 RPM","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Hopper Capacity

0.9 yd³ 0.66 m³
{"Name":"Hopper Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.9","MetricUnit":"m³","MetricValue":"0.66","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Voltage

12V and 24V
{"Name":"Voltage","SpecificationId":null,"TextValue":"12V and 24V","EnglishUnit":"lb","EnglishValue":"90.4","MetricUnit":"kg","MetricValue":"41","Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Drive Method

Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}
Interface Type

Requires Hook Group
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Requires Hook Group","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"21"}

Benefits

Protected Hydraulic Motors

The BP22 is powered by one hydraulic motor, the BP25 is powered by two hydraulic motors. Each motor is mounted to protect them from damage.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Unique Suspension System

Pickup Brooms incorporate a unique suspension system to eliminate the need for support wheels. This allows the broom to float freely over the work surface and ensures proper bristle contact from the initial setting.

Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Large Hopper

Pickup Brooms include a large hopper for greater productivity and easy removal and emptying.

Integrated Water Tank

The BP22 and BP25 both feature a 400 liter (106 gallon) capacity integrated water tank.

Water Sprinkler Kit

Water sprinkler kit helps reduce the amount of airborne dust during sweeping operations.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Full Set of Polypropylene Bristles

Cat® Pickup Brooms come standard with replaceable polypropylene sections. Convoluted bristle sections can be converted to all wire or 50/50 poly and wire for special applications.
