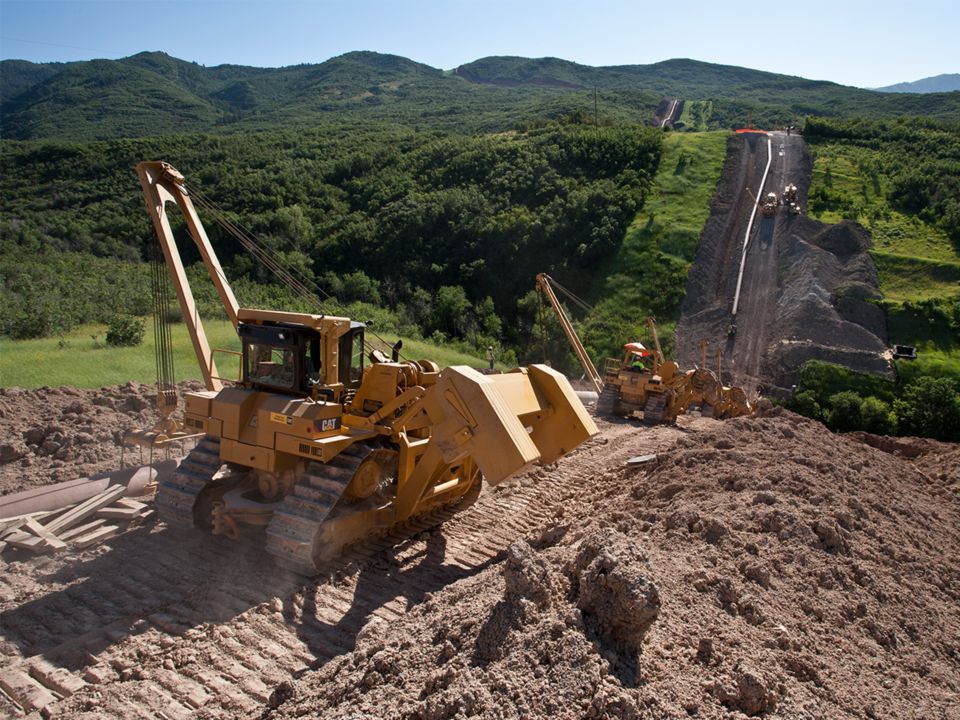

PL87

PL87

The full line of purpose-built Cat pipe layers is designed for performance, safety and serviceability. The experienced support of the Cat dealer network means your key pipe line equipment is available when and where you need it.

Book a Demo
Explore my deals
Air Conditioning System
  • Air Conditioning
    The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.
Components
  • Removable Counterweight (14 plates) Single Plate
    775 kg
  • Total Removable Counterweight*
    10844 kg
Dimensions
  • Width - Tractor - Standard Shoes
    3.86 m
Dimensions (Approximate)
  • Width - Tractor - Counterweight Extended
    6.34 m
  • Width - Tractor - Counterweight Retracted
    4.32 m
  • Width - Tractor - Counterweight/Boom Removed
    4.06 m
  • Machine Height - Top of Counterweight
    3.4 m
  • Height - Machine - Cab and ROPS
    3.53 m
  • Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom
    6.78 m
  • Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom
    8.02 m
  • Boom Height (at SAE 1.22 m [4 ft] Overhang) 8.5 m (28 ft) Boom
    9.25 m
Engine
  • Engine Model
    Cat C15
  • Flywheel Power
    238 kW
  • Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349
    238 kW
  • Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349 (DIN)
    323 mhp
  • Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349 (DIN)
    333 mhp
  • Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349
    245 kW
  • Emissions
    U.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA
  • Fuel Tank
    415 l
  • DEF Tank(1)
    17 l
  • Note (2)
    **Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
  • Note (4)
    ****Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Pipelaying Equipment
  • Lift Capacity
    97976 kg
Undercarriage
  • Track Gauge
    2.54 m
  • Length - Track on Ground
    3.72 m
  • Ground Contact Area
    6.4 m²
  • Width - Standard Shoes
    864 mm
Weights
  • Operating Weight
    55246 kg
  • Shipping Weight
    41096 kg

Built to Perform

  • Integrated power train with differential steering and updated hydraulic system work together to provide power and improved machine maneuverability for any pipelayer application.
  • Electro-hydraulics offer greater response and precise control to variable speed motors of the heavy duty winch for greater machine productivity.
  • Counterweight profile improves lift capacity.
  • Differential steering maintains full power to both tracks for best-in class turning even with a loaded boom, increasing maneuverability in tight locations.
  • Improved machine center of gravity and lengthened track-roller frame with repositioned rear idler places more track on the ground, enhancing slope capability.

Because Uptime Counts

  • Equipped with Product Link™ which enables remote monitoring, improving overall fleet management effectiveness.
  • Full left-side engine serviceability, including fill tube, dipstick, air cleaner, fuel filters, oil filter and coolant level check allows for quick and efficient routine service.
  • High speed oil change is standard and makes servicing even faster.
  • Hydraulic and power train filters and fuel tank drain are located at rear of machine and are conveniently serviceable from ground level.
  • Pressure taps are placed within hydraulic system to allow for quick monitoring.
  • Major components like the engine, transmission, and final drives are modular for quicker removal during service, saving cost and downtime.

Designed for Operators

  • Implement joystick places all pipelayer implement controls and functionality in one hand.
  • Low-effort, ergonomically designed and positioned control handle allows simultaneous, precise positioning of load line, boom, and extendible counterweight.
  • Dual brake pedal controls provide enhanced maneuverability and steering control.
  • Planetary differential steering contributes to superior maneuverability in tight areas of operation as well as enhanced slope capability.

Work in Comfort

  • Quieter, pressurized cab with heated/ventilated seat option improves operator comfort and productivity.
  • Ergonomically designed seat is positioned for greater visibility to work area and convenient access to machine control lever, switches and pedals.

Built-In Safety Features

  • Load Moment Indicator (LMI) is standard.
  • Convenient steps, handles and guardrail provide safe access/egress.
  • Enlarged roof top window with retractable shade, additional mirrors, and angled door improves visibility to the trench, boom and blocks.
  • Standard operator presence detection system allows machine to idle when operator is not seated, but locks out power train to avoid unintentional movement.
  • Rear vision camera is standard, and two additional cameras can be added as an option to further enhance visibility around the machine.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Cat C15 diesel engine: Electronic Unit Injection (EUI) Aftertreatment Meets Tier 4 Final/Stage V or Tier 3/Stage IIIA equivalent emission standards, depending on region of sale

OPERATOR ENVIRONMENT

Rear Vision Camera

PIPELAYING EQUIPMENT

Block and hook with latch

UNDERCARRIAGE

Carrier roller

ELECTRICAL

Alarm, backup

OTHER STANDARD EQUIPMENT

Bottom guards, hinged
