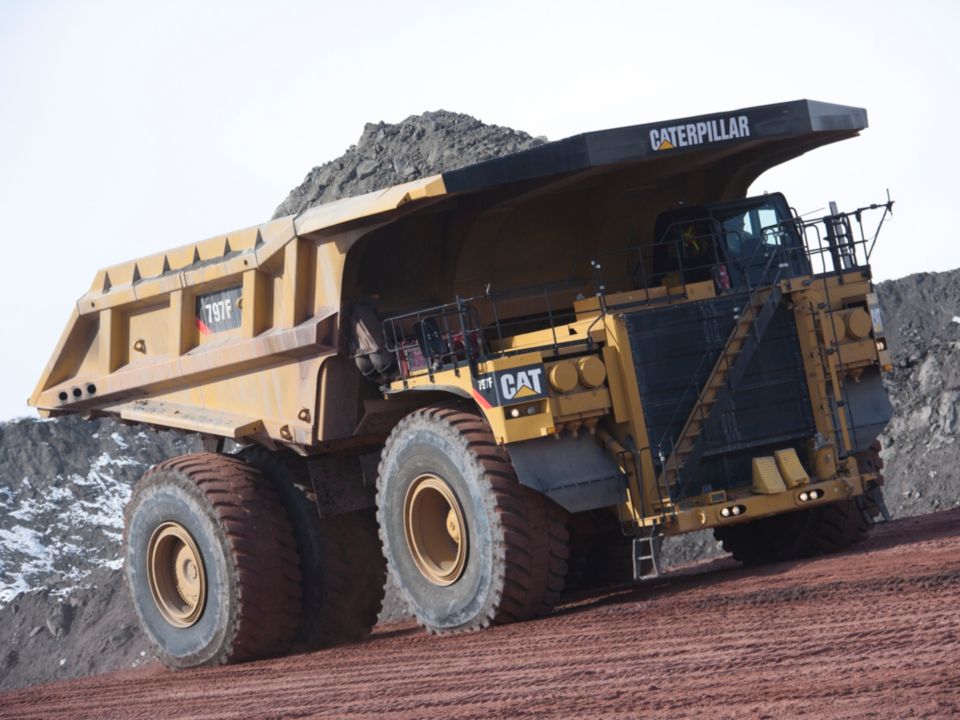

797F
797F
Cat Mining Trucks are engineered for performance, designed for comfort and built to last. These powerful haul trucks are able to move more material at a lower cost.
Book a Demo
Explore my deals
Specifications
Body Hoists
-
TypeTwin, two-stage hydraulic cylinders with snubbing valve.
-
Pump Flow - High Idle317 gal/min 1140 l/min
-
Relief Valve Setting - Raise3510 psi 24200 kPa
-
Body Raise Time - High Idle25 s 25 s
-
Body Lower Time - Float18 s 18 s
-
Body Power Down- High Idle18 s 18 s
Braking System
-
Service BrakesService Brakes: Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated
-
Front Wet Disc Brake Surface Area20500 in² 132259 cm²
-
Rear - Wet Disc Brake Surface Area30750 in² 198388 cm²
-
StandardsService and Secondary: ISO 3450:2011
-
Parking BrakeFour-corner, Multi-disc, Spring Applied, Hydraulically Released
-
Load BrakeRear service brakes
-
NoteAnti-Lock Brake System (ABS) optional with CMD package
Cab
-
Air ConditioningHFC - 134A refrigerant: 24,300 Btu/h
-
Heater / Defroster38900 Btu/h 38900 Btu/h
-
NoteAmbient capabilities down to -30C (-22F) for heater/defroster and up to 50C (122F) for air conditioning.
-
FOPS StandardsFOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II criteria and ISO 13459:2012 Level II
-
ROPS Standards (2)ROPS (Rollover Protective Structure) meets ISO 3471:2008 criteria and ISO 13459:2012
Capacity - HP Body - 100% Fill Factor
-
Struck225 yd³ / 172 m³
-
Heaped (SAE 2:1)*330 yd³ / 252 m³
-
Note (1)Consult your local Cat dealer for body recommendations.
Dimensions
-
Rear Axle - Clearance - Loaded3.08 ft 947 mm
-
Inside Body Depth - Maximum11 ft 3363 mm
-
Overall Height - Body Raised51.5 ft 15701 mm
-
Loaded Ground Clearance2.58 ft 786 mm
-
Loading Height - Empty23 ft 6998 mm
-
Engine Guard Clearance - Loaded3.33 ft 1025 mm
-
Height - Top of ROPS - Empty21.4 ft 6526 mm
-
Front Canopy Height - Empty25.33 ft 7709 mm
-
Overall Body Length48.6 ft 14802 mm
-
Inside Body Length32.75 ft 9976 mm
-
Overall Length49.5 ft 15080 mm
-
Wheel Base23.58 ft 7195 mm
-
Rear Axle - Tail12.9 ft 3944 mm
-
Dump Clearance6.58 ft 2017 mm
-
Centerline Front Tire Width21.41 ft 6534 mm
-
Overall Canopy Width29.91 ft 9116 mm
-
Outside Body Width32 ft 9755 mm
-
Inside Body Width27.91 ft 8513 mm
-
Centerline of Rear Dual Tire Width20.41 ft 6233 mm
-
Overall Tire Width31.25 ft 9529 mm
Engine
-
Gross Power - SAE J19954000 hp 2983 kW
-
Engine ModelCat® C175-20
-
Net Power - SAE J13493795 hp 2828 kW
-
Rated Speed1750 r/min 1750 r/min
-
EmissionsU.S. EPA Compliant. Where applicable, the Cat C175-20 engine is compliant with U.S. EPA emission standards.Tier 4 engine option available to meet Tier 4 Final emission standards.
-
Bore6.9 in 175 mm
-
Stroke8.7 in 220 mm
-
Displacement6469 in³ 106 l
-
Note (1)Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
-
Note (2)U.S. EPA Tier 4 Final available for applicable markets.
-
Note (3)High Altitude Low Maintenance Ratio Engine Configuration (4x4) option available.
Final Drives
-
TypeDouble reduction, planetary with full floating axles.
-
Differential Ratio1.276:1
-
Planetary Ratio16.67:1
-
Total Reduction Ratio21.26:1
-
NoteDouble reduction, planetary with full floating axles.
Service Refill Capacities
-
Fuel Tank1000 gal (US) 3785 l
-
Fuel Tank (Tier 4)1200 gal (US) 4542 l
-
Diesel Exhaust Fluid Tank100 gal (US) 375 l
-
Cooling System306 gal (US) 1160 l
-
Crankcase103 gal (US) 390 l
-
Front Wheels - Each16 gal (US) 61 l
-
Differentials330 gal (US) 1250 l
-
Steering Tank67 gal (US) 254 l
-
Steering System - Including Tank95 gal (US) 360 l
-
Brake/Hoist Tank203 gal (US) 770 l
-
Brake Hoist System - Includes Tank489 gal (US) 1850 l
-
Torque Converter Sump80 gal (US) 303 l
-
Torque Converter/Transmission System - Including Sump166 gal (US) 629 l
-
Note (1)DEF Tank only available for EPA Tier 4 engine option.
Sound
-
Sound Standards (2)Operator sound pressure level, 78 dB(A), is tested to ISO 6394:2008 and ISO 6396:2008
Steering
-
Steering Angle40 ° 40 °
-
Steering StandardsISO 5010:2019
-
Turning Diameter - Front122.7 ft 37.4 m
-
NoteTurning Diameter (ISO 7457:2009)
Suspension
-
TypeSelf-contained nitrogen/oil cylinders, rear strut pin-to-pin mounting, top & bottom double shear clevis attachments
-
Effective Cylinder Stroke - Front3.9 in 99.1 mm
-
Effective Cylinder Stroke - Rear3.7 in 93.2 mm
-
Rear axle - Oscillation±3.96 degrees
Tires
-
Tires59/80 R63
-
Rims44 x 63
-
NoteQuick Change Rims optional.
-
Note (1)Caterpillar recommends the customer evaluate all job conditions and consult tire manufacturer for proper tire selection and TKPH (TMPH) capabilities.
Transmission
-
Forward - 16.6 mile/h 10.7 km/h
-
Forward - 28.9 mile/h 14.4 km/h
-
Forward - 312 mile/h 19.3 km/h
-
Forward - 416.2 mile/h 26.1 km/h
-
Forward - 521.8 mile/h 35 km/h
-
Forward - 629.4 mile/h 47.3 km/h
-
Forward - 739.5 mile/h 63.6 km/h
-
Reverse7.4 mile/h 11.9 km/h
-
Top Speed - Loaded39.5 mile/h 63.6 km/h
Weight Distributions - Approximate
-
Front Axle - Empty47.20%
-
Rear Axle - Empty52.80%
-
Front Axle - Loaded33.30%
-
Rear Axle - Loaded66.70%
-
NoteWeight distributions optimized with Cat body.
Weights - Approximate
-
Nominal Rated Payload400 ton (US) 363 t
-
Rated Gross Machine Weight1375000 lb 623690 kg
-
Chassis Weight474472 lb 215217 kg
-
Body Weight94799 lb 43000 kg
-
Note (1)Consult your tire manufacturer for maximum tire load
-
Note (2)Chassis weight with full fuel and fluids, standard & mandatory attachments, hoist, body mounting group, rims, and tires.
-
Note (4)Tier 4 Chassis Weight: 486263 lb (220565 kg)
Benefits
SAFETY
- Wide walkways, ladders, catwalks and service platforms; slip-resistant surfaces and guard rails; wide secondary egress ladder and a rear service access ladder; and optional powered access ladder.
- Integral ROPS structure resiliently mounted to the main frame to reduce vibration and sound.
- Lockout/tagout box mounted on the front bumper that includes engine shutdown switch, battery lockout, starter lockout and transmission lockout.
- Standard Cat MineStar™ Detect Object Detection system, which combines radar and camera systems to warn operators about hazards within the immediate vicinity.
- Optional Driver Safety System alerts the operator if fatigue or distraction are detected.
PRODUCTIVITY
- Cost per ton advantage over competitive models in higher altitudes, ranging from 6% to as high as 14%, plus HP Body option reduces weight an additional 2.0-5.0 tonnes (2.2-5.5 tons).
- Optimal speed on steep grades, poor underfoot conditions and haul roads with high rolling resistance for faster cycle times when compared to competitive trucks; travels loaded at a top speed of 60 km/h (42 mph).
- Unequaled lugging force during acceleration thanks to 23% net torque rise.
- Constant power over a wide range of operating speeds thanks to Cat seven-speed planetary power shift transmission.
- Low-speed movement control and unsurpassed stall torque delivered by lock-up torque converter.
FUEL EFFICIENCY
- Multiple power settings that allow you to operate at full power or in economy mode, so you can decide how much power you need.
- Modes that fine-tune hydraulic and engine output to match the job at hand; Eco-mode shown to deliver fuel savings of up to 3.5% per cycle.
- Optimized fuel calibrations available for Tier 4, high altitude and lesser regulated applications.
- Engine ECM that does not inject fuel into the cylinders during retarding applications, for exceptional fuel economy — zero fuel burn during retarding.
- Increased fuel efficiency with Tier 4 configuration.
VERSATILITY
- Proven high production in the most challenging conditions—from extreme cold and soft underfoot conditions to high-altitude, deep copper applications.
- 20-cylinder, quad-turbocharged Cat C175 engine produces 2983 kW (4,000 hp) of power for fast acceleration; 2647-kW (3,550-hp) setting for applications that don’t require the highest power, such as the flat hauls found in many coal and iron ore applications.
- Excels at high altitudes, with 4x4 engine configuration that offers payload and greater speeds with no impact on fuel burn.
OPERATOR COMFORT & CONTROL
- Two options to equip 797F with the desired features for your operation.
- Ergonomic layout, excellent all-around visibility, and controls, levers and switches that are positioned for ease of use.
- Includes dozens of features designed to enhance comfort, such as reduced vibration and sound suppression.
- Next generation seat includes a height adjuster; adjustable shoulder stock to keep seatbelt from rubbing on the operator’s neck; and seat back, side and lumbar bolsters to increase stability.
- Four-corner oil-cooled brakes and Automatic Retarding Control to improve handling and machine control so operators can work quickly and confidently.
SERVICEABILITY
- Time-saving features such as long service intervals; grouped ground-level maintenance and checkpoints; oil level sight gauges and front wheel sight glass; and service platforms on the engine and transmission.
- Increased life for the majority of filters —in many cases doubling lives to 2,000 hours and extending replacement intervals to four months.
- Optional 100% airless electric start option that eliminates air system maintenance from the machine and improves uptime.
- Electronic Clutch Pressure Controls (ECPC) diagnostics
- Optional fast-fill service center and brake wear indicators.
DURABILITY AND LONG LIFE
- Only truck in its size class to achieve high-hour milestones of 130,000 or more hours.
- Greater than 5% tire life improvement, significant engine life increase, plus major drive train component life improvement.
- Over 80% of frame is cast, not fabricated steel plate.
- Box-section design, which incorporates two forgings and 14 castings in high-stress areas with deep penetrating and continuous wrap-around welds to resist damage from twisting loads without adding extra weight.
- Frame, powertrain, engine and components that are built to be rebuilt — delivering multiple lives of like-new performance at a fraction-of-new price.
CAT BODIES
- Bodies designed to be an integral part of the entire vehicle system, ensuring maximum chassis life.
- High Performance (HP) body features lightweight, simplified and durable design that provides complete front machine coverage and extended overhead protection.
- Oil sands body specifically designed for use in challenging Canadian Oil Sands applications.
- HP-XL body, a version of the standard HP body with an extended length floor, designed to neutralize extreme forward bias loading applications.
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions, and there is zero fuel burn during retarding; optional Tier 4 Final engine reduces NOx and particulate matter.
- Less waste thanks to features like rear axle filtration, extended life filters and longer maintenance intervals.
- Cat Common Rail Fuel System, which provides optimal fuel delivery, reducing both fuel consumption and emissions output.
- Engine compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions.
TECHNOLOGY SOLUTIONS
- Factory-ready for fully integrated Cat MineStar™ Command for hauling, an autonomous hauling solution proven to increase productivity up to 30%.
- Optional MineStar Fleet, a fleet monitoring system, to measure, manage and maximize the overall hauling operation.
- Standard MineStar Detect proximity detection system, which uses cameras to give operators a better view of what's happening around their equipment.
- Optional in-cab Cat Driver Safety System (DSS) intervenes when operator fatigue or distraction are detected.
Equipment Info
ELECTRICAL
Alarm, back-up
OPERATOR ENVIRONMENT
Standard cab:
– Standard optimized operator seats
– Suspension trainer seat
– Flip down front visor
– Standard side of cab access
– Standard optimized operator seats
– Suspension trainer seat
– Flip down front visor
– Standard side of cab access
POWER TRAIN
C175-20 emits equivalent to Tier 2 emission standards:
– Turbocharging (4)/Air-to-Air Aftercooler (ATAAC)
– Air cleaner with precleaner (4)
– Ground level engine shutdown
– Ether starting aid (automatic)
– Elevated low idle control
– Crankcase protection
– Multi-point oil pressure sensing
– Automatic starter protection
– Turbocharging (4)/Air-to-Air Aftercooler (ATAAC)
– Air cleaner with precleaner (4)
– Ground level engine shutdown
– Ether starting aid (automatic)
– Elevated low idle control
– Crankcase protection
– Multi-point oil pressure sensing
– Automatic starter protection
OTHER STANDARD EQUIPMENT
Traction Control System
ANTIFREEZE
Extended Life Coolant to –35° C (–30° F)
