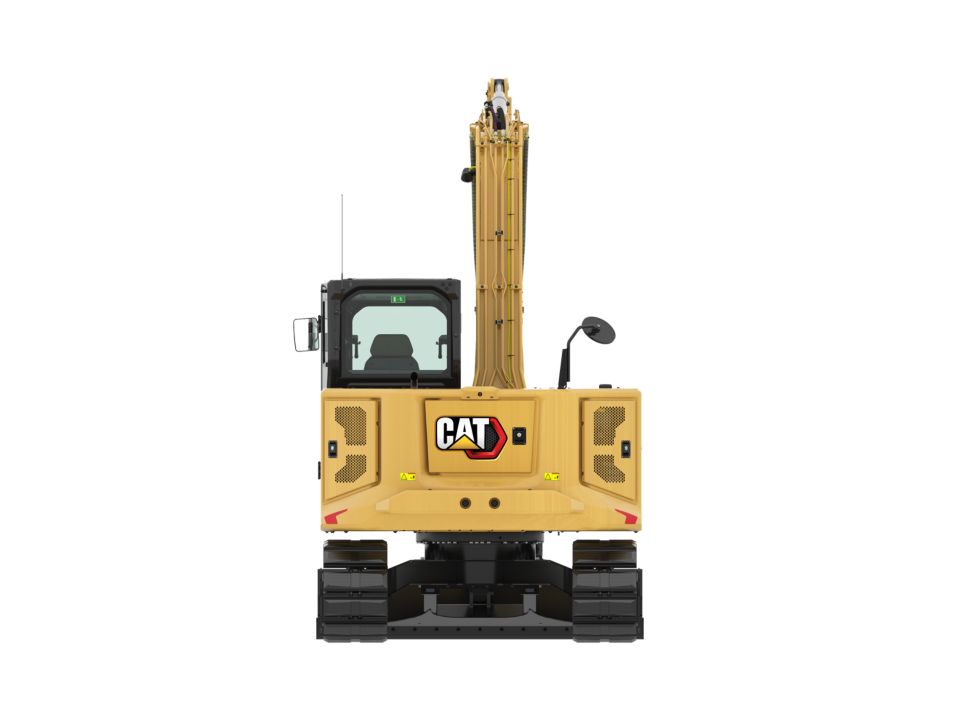

307.5 - Tier 4 / Stage V
307.5 - Tier 4 / Stage V
An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains .90 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.
Blade
-
Height17 in 431 mm
-
Width90 in 2280 mm
Certification - Cab
-
Roll Over Protective Structure (ROPS)ISO 12117-2:2008
-
Top GuardISO 10262:1998 (Level I)
-
Tip Over Protective Structure (TOPS)ISO 12117:1997
Dimensions - Long Stick
-
Dig Depth182.8 in 4642 mm
-
Cab Height100 in 2541 mm
-
Maximum Blade Height14.6 in 370 mm
-
Track Belt/Shoe Width17.7 in 450 mm
-
Maximum Dump Clearance225.1 in 5717 mm
-
O/A Undercarriage Length108.7 in 2760 mm
-
O/A Track Width86.6 in 2200 mm
-
Vertical Wall161.9 in 4113 mm
-
Width over Upper House88.6 in 2250 mm
-
Boom In Reach88.6 in 2250 mm
-
Stick Length86.9 in 2208 mm
-
Tail Swing with Counterweight76 in 1930 mm
-
Maximum Reach267.9 in 6805 mm
-
Ground Clearance14.6 in 370 mm
-
Swing Bearing - Height29.7 in 756 mm
-
Tail Swing without Counterweight70.9 in 1800 mm
-
Maximum Dig Height305.7 in 7765 mm
-
Maximum Blade Depth16 in 407 mm
-
Maximum Reach - Ground Level262.6 in 6670 mm
-
Height - Boom Transport - No Tools100.4 in 2550 mm
-
Overall Shipping Length - without Counterweight240.9 in 6120 mm
-
Overall Shipping Length - with Counterweight246.1 in 6250 mm
-
Note (1)Boom Height when stick is pinned in transport position with no attachments.
-
Height - Boom Working - With Tools124 in 3150 mm
-
Note (2)Boom Height when stick is pinned in working position with attachments.
Dimensions - Standard Stick
-
Tail Swing with Counterweight76 in 1930 mm
-
Vertical Wall141.6 in 3597 mm
-
Tail Swing without Counterweight70.9 in 1800 mm
-
Stick Length65.6 in 1665 mm
-
Boom In Reach66.2 in 1681 mm
-
Track Belt/Shoe Width17.7 in 450 mm
-
Ground Clearance14.6 in 370 mm
-
O/A Track Width86.6 in 2200 mm
-
Maximum Reach - Ground Level242.1 in 6151 mm
-
O/A Undercarriage Length108.7 in 2760 mm
-
Width over Upper House88.6 in 2250 mm
-
Maximum Reach247.9 in 6297 mm
-
Swing Bearing - Height29.7 in 756 mm
-
Maximum Blade Height14.6 in 370 mm
-
Maximum Blade Depth16 in 407 mm
-
Dig Depth161.4 in 4100 mm
-
Maximum Dump Clearance208.6 in 5300 mm
-
Cab Height100 in 2541 mm
-
Maximum Dig Height289.3 in 7348 mm
-
Height - Boom Working - With Tools107.5 in 2730 mm
-
Overall Shipping Length - with Counterweight245.3 in 6230 mm
-
Note (2)Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
-
Overall Shipping Length - without Counterweight240.2 in 6100 mm
-
Height - Boom Transport - No Tools101.2 in 2570 mm
-
Note (1)Boom Height when stick is pinned in transport position with no attachments.
Engine
-
Net Power54.8 hp 40.9 kW
-
Engine ModelCat C2.4 Turbo
-
Displacement148 in³ 2.43 l
-
Gross Power - SAE J1995:201457.9 hp 43.2 kW
-
Bore3.4 in 87 mm
-
Stroke4 in 102.4 mm
-
Rated Net Power - 2,400 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/126954.8 hp 40.9 kW
Hydraulic System
-
TypeLoad Sensing Hydraulics with Variable Displacement Piston Pump
-
Operating Pressure - Swing3626 psi 250 bar
-
NoteFlow and pressure are not combinable. Under load, as flow rises pressure goes down.
-
Pump Flow at 2,400 rpm44 gal/min 167 l/min
-
Digging Force - Stick - Standard8504 lb 37.8 kN
-
Operating Pressure - Travel4134 psi 285 bar
-
Operating Pressure - Equipment4134 psi 285 bar
-
Digging Force - Stick - Long7579 lb 33.7 kN
-
Digging Force - Bucket12272 lb 54.6 kN
-
Maximum Auxiliary Circuit - Secondary - Flow at Pump9 gal/min 33 l/min
-
Maximum Auxiliary Circuit - Secondary - Pressure at Pump4134 psi 285 bar
-
Maximum Auxiliary Circuit - Primary - Flow at Pump35 gal/min 131 l/min
-
Maximum Auxiliary Circuit - Primary - Pressure at Pump4134 psi 285 bar
Service Refill Capacities
-
Cooling System2.6 gal (US) 10 l
-
Hydraulic System29 gal (US) 110 l
-
Hydraulic Tank14 gal (US) 53 l
-
Fuel Tank38 gal (US) 145 l
-
Engine Oil2.5 gal (US) 9.5 l
Sound
-
Operator Sound Pressure (ISO 6396:2008)72 dB(A) 72 dB(A)
-
Average Exterior Sound Pressure (ISO 6395:2008)98 dB(A) 98 dB(A)
-
NoteEuropean Union Directive “2000/14/EC”
Sustainability
-
Recyclability96%
Swing System
-
Machine Swing Speed10 r/min 10 r/min
Travel System
-
Maximum Traction Force - Low Speed14035 lb 62.4 kN
-
Maximum Traction Force - High Speed5856 lb 26.1 kN
-
Travel Speed - High3.1 mile/h 5 km/h
-
Ground Pressure - Maximum Weight5.5 psi 37.7 kPa
-
Travel Speed - Low1.9 mile/h 3.1 km/h
-
Gradeability - Maximum30 degrees
-
Ground Pressure - Minimum Weight5.1 psi 34.8 kPa
Weight Increase from Minimum Configuration
-
Long Stick181 lb 82 kg
-
Counterweight552 lb 250 kg
-
Steel Tracks with Pads628 lb 285 kg
Weights
-
Operating Weight17905 lb 8120 kg
-
Note (2)**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
-
Maximum Operating Weight with Cab**17905 lb 8120 kg
-
Minimum Operating Weight with Cab*16549 lb 7505 kg
-
Note (1)*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Benefits
ALL DAY COMFORT
- A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
EASY TO OPERATE
- Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
SAFETY ON THE JOB SITE
- Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
- Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
LOWER OPERATING COSTS
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.
SUSTAINABILITY
- The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
- Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
UNMATCHED DEALER SUPPORT
- Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
BIG PERFORMANCE IN A MINI DESIGN
- Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy grading.
STICK STEER TRAVEL MODE
- Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
Equipment Info
ENGINE
Cat C2.4 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo,Diesel Particulate Filter (DPF)
HYDRAULICS
Smart Tech Electronic Pump
OPERATOR ENVIRONMENT
Top Guard ISO 10262 1998 Level I
TECHNOLOGY (availability varies by region)
Product Link™ Basic
UNDERCARRIAGE
Greased and Lubricated Track
BOOM, STICK AND LINKAGES
One Piece Boom (3700 mm/145.7 in)
ELECTRICAL
12 Volt Electrical System
GUARDING
ROPS ISO 12117-2:2008
OTHER
Locks on External Enclosure Doors
