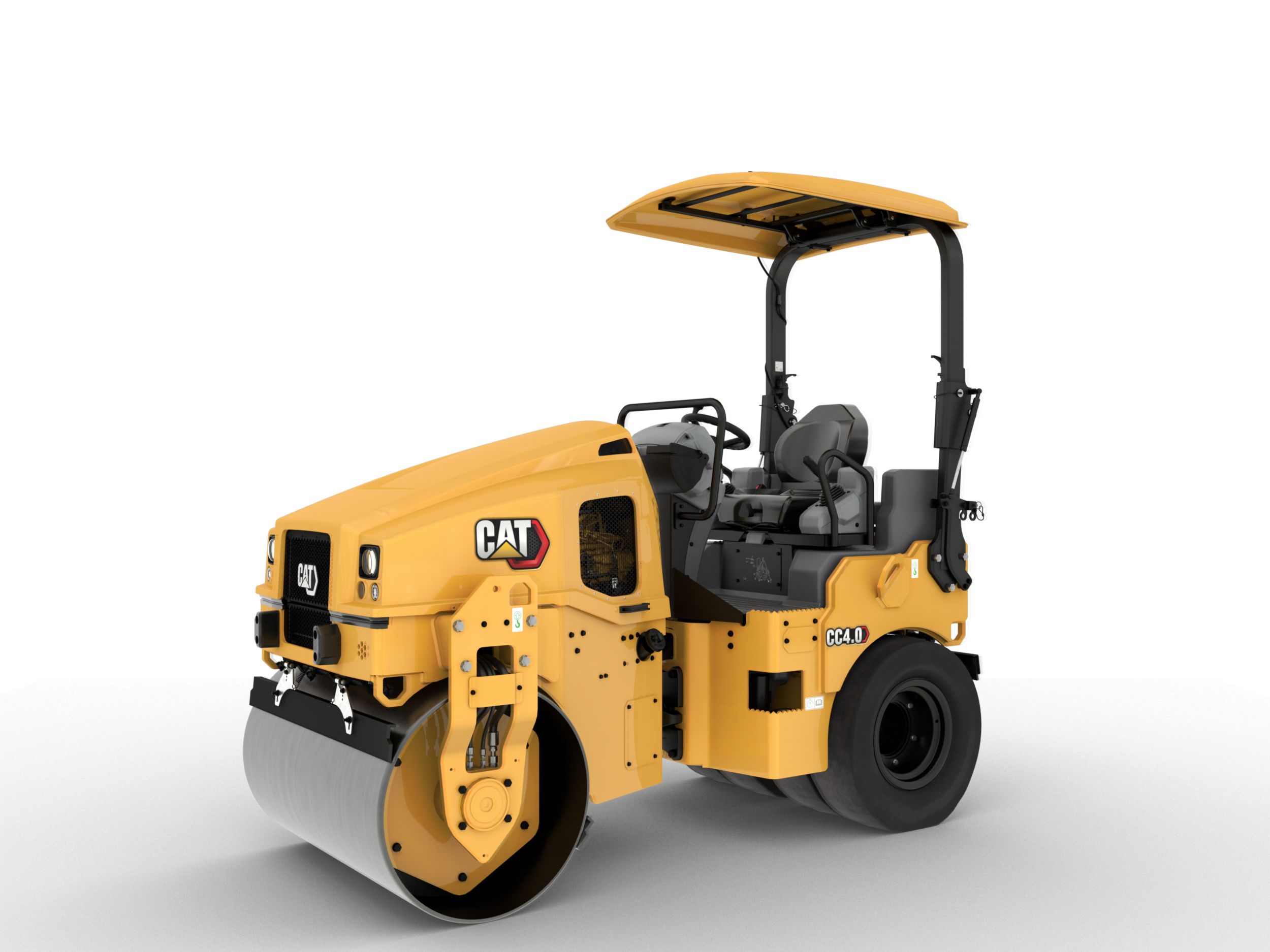

CC4.0
CC4.0
Get it dense and keep it smooth. Cat Tandem Vibratory Rollers do that and more. Caterpillar offers a vibratory system for every application. Most models have high frequency combined with low amplitude that match high paving speed on thin lifts as well as low frequency with high amplitude that match low paving speed on thick lifts of stiff material. As stand-alone units or as complements to high production tandem rollers, Cat Utility Rollers set the standards for versatility and reliability. A wide range of drum widths lets you precisely match the machine to the job requirements—whether it's a narrow shoulder, a patching project, a parking lot or a bicycle path. Vibratory systems are characterized by high frequency for fast working speed and high compaction energy for getting density in the fewest passes.
Book a Demo
Explore my deals
Specifications
Dimensions
-
Compaction Width51.2 in 1300 mm
-
Overall Length112.3 in 2853 mm
-
Overall Width55.1 in 1400 mm
-
Drum Width51.2 in 1300 mm
-
Drum Diameter31.5 in 800 mm
-
Wheel Base80.7 in 2050 mm
-
Height - ROPS104.7 in 2660 mm
Engine
-
Engine Power (1)48.2 hp 36 kW
-
Engine ModelC1.7T
Operating Specifications
-
Standard Compaction Width51.2 in 1300 mm
-
Drum Offset2 in 50 mm
-
Curb Clearance19.6 in 499 mm
-
Ground Clearance11.2 in 284 mm
-
Travel Speed - Maximum7.5 mile/h 12 km/h
-
Turning Radius - Inside Drum Edge115.2 in 2926 mm
-
Turning Radius - Outside Drum Edge166.4 in 4226 mm
-
Static Linear Load59.8 lb/in 13.9 kg/cm
Service Refill Capacities
-
Fuel Tank Capacity21.43 gal (US) 81 l
-
Water Spray Tank Capacity61 gal (US) 230 l
-
Tire Spray Tank Capacity9.2 gal (US) 34.5 l
Vibratory System
-
Frequency55/45 Hz (3300/2700 vpm)
-
Frequency3300 VPM 55 Hz
-
Nominal Amplitude - High0.02 in 0.5 mm
-
Centrifugal Force - Maximum7524 lb/ft 33.47 kN
Weights
-
Standard Operating Weight with ROPS7889 lb 3586 kg
-
Maximum Weight at Front Drum3918 lb 1781 kg
-
Maximum Weight at Rear Drum3971 lb 1805 kg
-
Maximum Operating Weight with ROPS3936 lb 8659 kg
-
Static Linear Load76.6 lb/in 13.7 kg/cm
Benefits
Simple to Operate
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility
Proven Productivity
• Large 800 mm (31.5 in) drum diameters for smooth mat finish
• 16 mm (0.6 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)
• 16 mm (0.6 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)
Technology Ready
• Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
Easy to Service
• Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
Equipment Info
OPERATOR ENVIRONMENT
Adjustable Suspension Seat with Operator Presense Switch
COMPACTON SYSTEM
Folding Scrapers
POWERTRAIN
Auto Engine Off and Auto Warmup
TECHNOLOGY
Telematics
ELECTRICAL
LED Working Lights
OTHER
Vandal Protection - lockable hood, fuel fill, and controls cover
