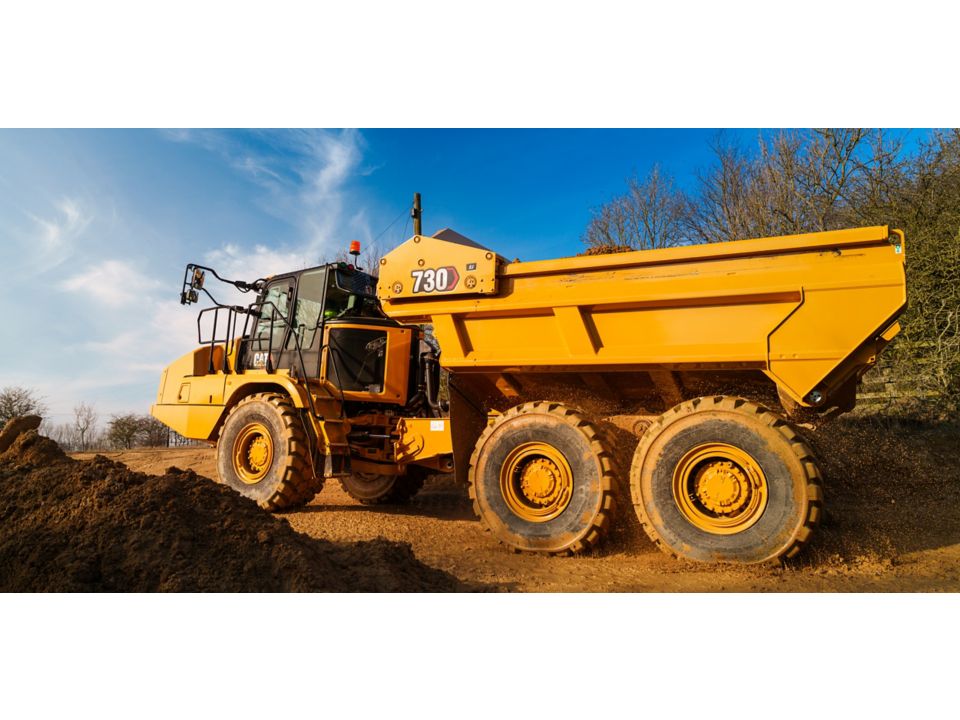

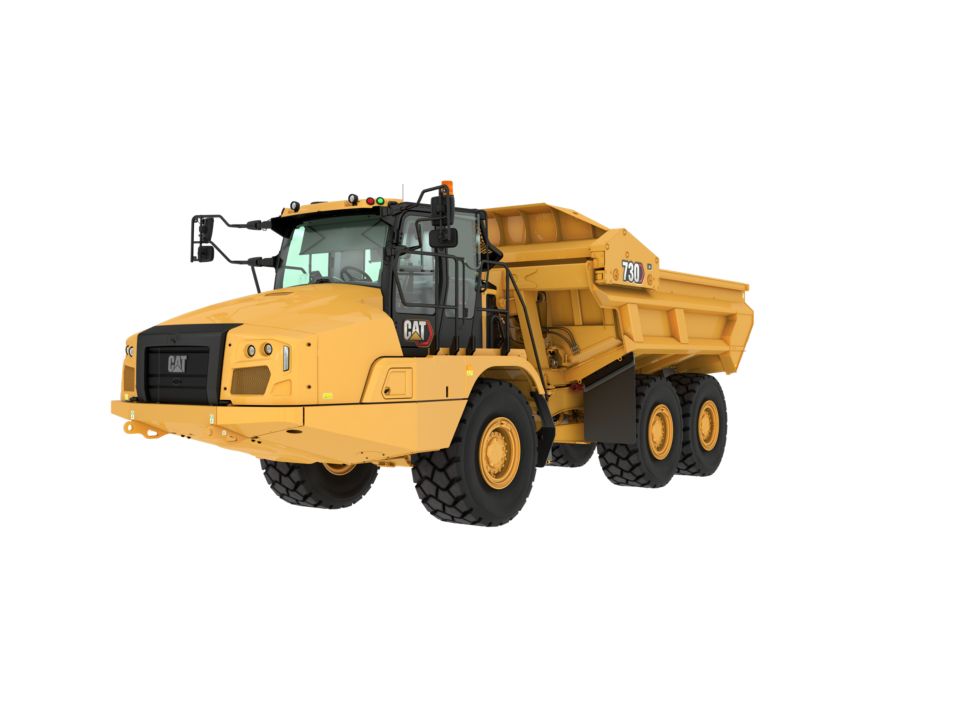

730 EJ

Three Axle Articulated Trucks

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Body Capacities

Heaped (SAE 2:1)

22.1 yd³ 16.9 m³
{"Name":"Heaped (SAE 2:1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"22.1","MetricUnit":"m³","MetricValue":"16.9","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"3"}
Struck

17.7 yd³ 13.5 m³
{"Name":"Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"17.7","MetricUnit":"m³","MetricValue":"13.5","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"40"}

Body Plate

Type

High strength Brinell HB450 wear resistant steel
{"Name":"Type","SpecificationId":null,"TextValue":"High strength Brinell HB450 wear resistant steel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Body Plate","SortOrder":"80"}

Eject/Retract Times

Eject Time

12 s 12 s
{"Name":"Eject Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"12","MetricUnit":"s","MetricValue":"12","Type":"measurement","SpecificationGroup":"Eject/Retract Times","SortOrder":"90"}
Retract Time

15 s 15 s
{"Name":"Retract Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"15","MetricUnit":"s","MetricValue":"15","Type":"measurement","SpecificationGroup":"Eject/Retract Times","SortOrder":"91"}

Engine

Engine Model

Cat® C13B
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C13B","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Gross Power (SAE J1995)

361 hp 269 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"361","MetricUnit":"kW","MetricValue":"269","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power (SAE J1349)

351 hp 262 kW
{"Name":"Net Power (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"351","MetricUnit":"kW","MetricValue":"262","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Engine Power (ISO 14396)

370 hp 276 kW
{"Name":"Engine Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"370","MetricUnit":"kW","MetricValue":"276","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

5.1 in 130 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.1","MetricUnit":"mm","MetricValue":"130","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Stroke

6.2 in 157 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.2","MetricUnit":"mm","MetricValue":"157","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Displacement

763 in³ 12.5 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"763","MetricUnit":"l","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Note (2)

Advertised power is tested at 1,800 rpm.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Advertised power is tested at 1,800 rpm.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note (3)

Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}
Note (4)

Net power when the fan is at maximum speed is 262 kW (351 hp) per the SAE reference conditions.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"Net power when the fan is at maximum speed is 262 kW (351 hp) per the SAE reference conditions.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"13"}
Note (5)

Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"14"}
Note (6)

Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
{"Name":"Note (6)","SpecificationId":null,"TextValue":"Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"15"}
No Engine De-rating Below

12500 ft 3810 m
{"Name":"No Engine De-rating Below","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12500","MetricUnit":"m","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"16"}
Peak Engine Torque Gross (SAE J1995)

1579 lbf·ft 2141 N·m
{"Name":"Peak Engine Torque Gross (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1579","MetricUnit":"N·m","MetricValue":"2141","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
Peak Engine Torque Net (SAE J1349)

1564 lbf·ft 2120 N·m
{"Name":"Peak Engine Torque Net (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1564","MetricUnit":"N·m","MetricValue":"2120","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"18"}
Peak Engine Torque Speed

1200 r/min 1200 r/min
{"Name":"Peak Engine Torque Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1200","MetricUnit":"r/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"19"}

Operating Weights

Front Axle - Empty

33356 lb 15130 kg
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33356","MetricUnit":"kg","MetricValue":"15130","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"70"}
Center Axle - Empty

12368 lb 5610 kg
{"Name":"Center Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"12368","MetricUnit":"kg","MetricValue":"5610","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"71"}
Rear Axle - Empty

11839 lb 5370 kg
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"11839","MetricUnit":"kg","MetricValue":"5370","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"72"}
Total - Empty

57563 lb 26110 kg
{"Name":"Total - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"57563","MetricUnit":"kg","MetricValue":"26110","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"73"}
Front Axle - Rated Load

1433 lb 650 kg
{"Name":"Front Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1433","MetricUnit":"kg","MetricValue":"650","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"74"}
Center Axle - Rated Load

29156 lb 13225 kg
{"Name":"Center Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"29156","MetricUnit":"kg","MetricValue":"13225","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"75"}
Rear Axle - Rated Load

29156 lb 13225 kg
{"Name":"Rear Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"29156","MetricUnit":"kg","MetricValue":"13225","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"76"}
Total - Rated Load

59156 lb 27100 kg
{"Name":"Total - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"59156","MetricUnit":"kg","MetricValue":"27100","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"77"}
Front Axle - Loaded

34789 lb 15780 kg
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"34789","MetricUnit":"kg","MetricValue":"15780","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"78"}
Center Axle - Loaded

41524 lb 18835 kg
{"Name":"Center Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"41524","MetricUnit":"kg","MetricValue":"18835","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"79"}
Rear Axle - Loaded

40995 lb 18595 kg
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"40995","MetricUnit":"kg","MetricValue":"18595","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"80"}
Total - Loaded

117308 lb 53210 kg
{"Name":"Total - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"117308","MetricUnit":"kg","MetricValue":"53210","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"81"}

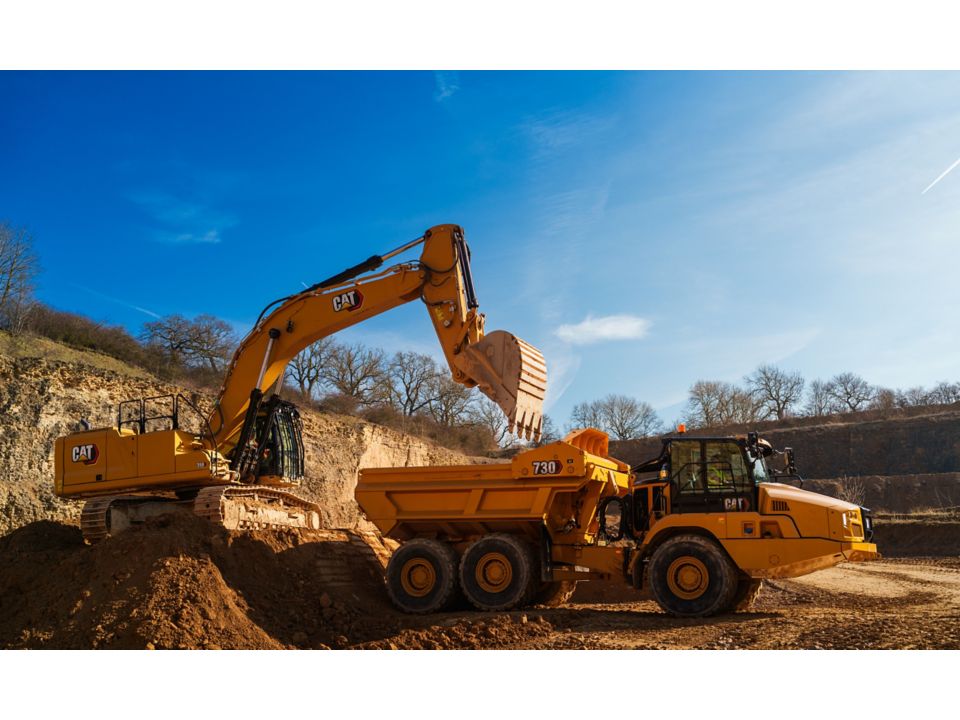

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes

4-5
{"Name":"Hydraulic Excavators: 350/352 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"150"}
Hydraulic Excavators: 336 - Passes

5-6
{"Name":"Hydraulic Excavators: 336 - Passes","SpecificationId":null,"TextValue":"5-6","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"151"}
Wheel Loaders: 972/972 XE - Passes

3-4
{"Name":"Wheel Loaders: 972/972 XE - Passes","SpecificationId":null,"TextValue":"3-4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"152"}
Wheel Loaders: 966/966 XE - Passes

4
{"Name":"Wheel Loaders: 966/966 XE - Passes","SpecificationId":null,"TextValue":"4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"153"}
Wheel Loader: 962 - Passes

4-5
{"Name":"Wheel Loader: 962 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"154"}
Wheel Loader: 950 - Passes

5
{"Name":"Wheel Loader: 950 - Passes","SpecificationId":null,"TextValue":"5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"155"}
Note

An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
{"Name":"Note","SpecificationId":null,"TextValue":"An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"156"}

Service Refill Capacities

Fuel Tank

106 gal (US) 400 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"106","MetricUnit":"l","MetricValue":"400","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"100"}
DEF Tank

9 gal (US) 34 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"101"}
Cooling System

21.9 gal (US) 83 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"21.9","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"102"}
Hydraulic System

32.5 gal (US) 123 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"32.5","MetricUnit":"l","MetricValue":"123","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"103"}
Engine Crankcase

11.4 gal (US) 43 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.4","MetricUnit":"l","MetricValue":"43","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"104"}
Transmission

12.4 gal (US) 47 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"12.4","MetricUnit":"l","MetricValue":"47","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"105"}
Final Drives/Differential

33 gal (US) 125 l
{"Name":"Final Drives/Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"106"}
Output Transfer Gear Box

6.6 gal (US) 25 l
{"Name":"Output Transfer Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.6","MetricUnit":"l","MetricValue":"25","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"107"}

Sound Levels

Note (1)

The declared dynamic operator sound pressure level is 72 ± 2 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"The declared dynamic operator sound pressure level is 72 ± 2 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"61"}
Note (2)

Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"62"}

Standards

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"110"}
Cab - FOPS

ISO 3449:2005 Level II
{"Name":"Cab - FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"111"}
Cab - ROPS

ISO 3471:2008
{"Name":"Cab - ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"112"}
Steering

ISO 5010:2019
{"Name":"Steering","SpecificationId":null,"TextValue":"ISO 5010:2019","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"113"}

Steering

Lock to Lock

4.75 seconds @ 60 rpm
{"Name":"Lock to Lock","SpecificationId":null,"TextValue":"4.75 seconds @ 60 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"130"}

Transmission

Forward - 1

5 mile/h 8 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"50"}
Forward - 2

9 mile/h 15 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"15","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"51"}
Forward - 3

14 mile/h 22 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"52"}
Forward - 4

21 mile/h 34 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"21","MetricUnit":"km/h","MetricValue":"34","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"53"}
Forward - 5

29 mile/h 47 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"29","MetricUnit":"km/h","MetricValue":"47","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"54"}
Forward - 6

34 mile/h 55 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34","MetricUnit":"km/h","MetricValue":"55","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"55"}
Reverse - 1

6 mile/h 9 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6","MetricUnit":"km/h","MetricValue":"9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"56"}

Turning Circle

Turning Dimensions - Steer Angle - Left/Right

45°
{"Name":"Turning Dimensions - Steer Angle - Left/Right","SpecificationId":null,"TextValue":"45°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"120"}
Turning Dimensions - SAE Turning Radius

294 in 7470 mm
{"Name":"Turning Dimensions - SAE Turning Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"294","MetricUnit":"mm","MetricValue":"7470","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"121"}
Turning Dimensions - Clearance Radius

318 in 8075 mm
{"Name":"Turning Dimensions - Clearance Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"318","MetricUnit":"mm","MetricValue":"8075","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"122"}
Turning Dimensions - Inside Radius

148 in 3749 mm
{"Name":"Turning Dimensions - Inside Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"148","MetricUnit":"mm","MetricValue":"3749","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"123"}
Turning Dimensions - Aisle Width

214 in 5424 mm
{"Name":"Turning Dimensions - Aisle Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"214","MetricUnit":"mm","MetricValue":"5424","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"124"}
Note

Dimensions are for machines equipped with 750/65 R25 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Dimensions are for machines equipped with 750/65 R25 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"125"}

Weights

Rated Payload

30 ton (US) 27.1 t
{"Name":"Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"30","MetricUnit":"t","MetricValue":"27.1","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

PROVEN RELIABILITY

Cat C13B engine delivers proven reliability across a variety of applications.
Terrain-based throttle control smooths throttle input over rough terrain to improve ride quality.
Enhanced reliability through commonality and design simplicity with long life to overhaul.
Minimized impact of emission control system allows excellent response and ample power.
Engine compression brake improves response and increases retarding power for controlled descent of grades.
Aftertreatment technologies reduce emissions, including reducing NOx emissions by 80%.

EXPAND YOUR CAPABILITIES

The truck can eject and spread the material while moving, reducing additional spreading and dozing equipment. “On-the-go” ejecting results in faster cycle times.
Ejecting the load without raising the body maintains machine stability, allowing load dispersal on inclines, side slopes, and in very soft underfoot conditions, especially on landfill sites.

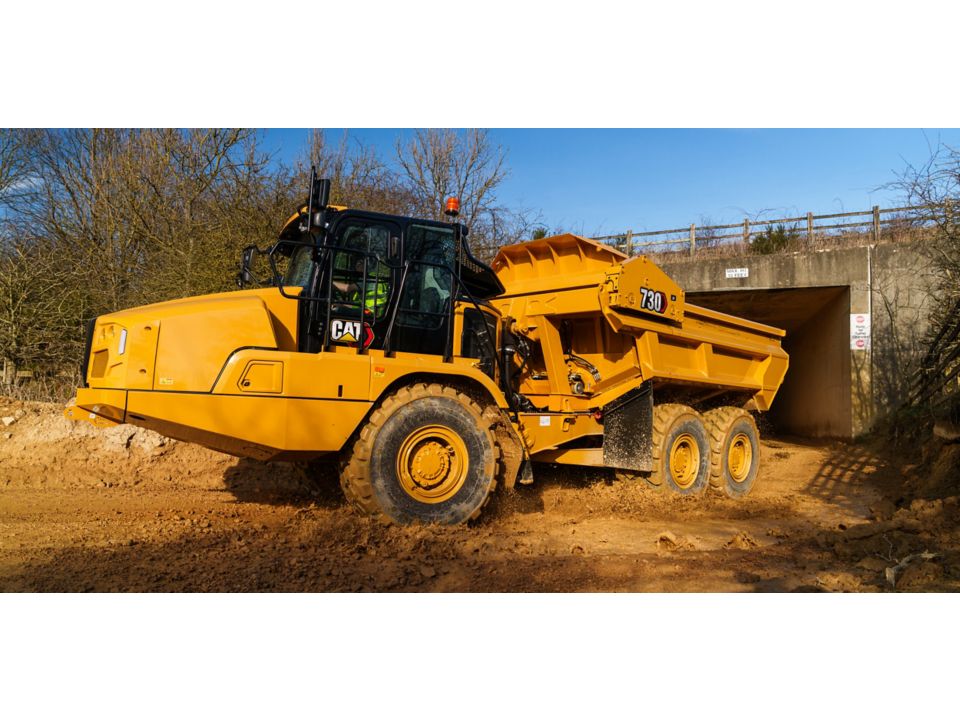

The truck can eject in areas with reduced overhead clearance, such as around overhead lines or in tunneling and underground operations.
The body design virtually eliminates material sticking to the body, which increases productivity, improves fuel efficiency, and lowers cost per ton.

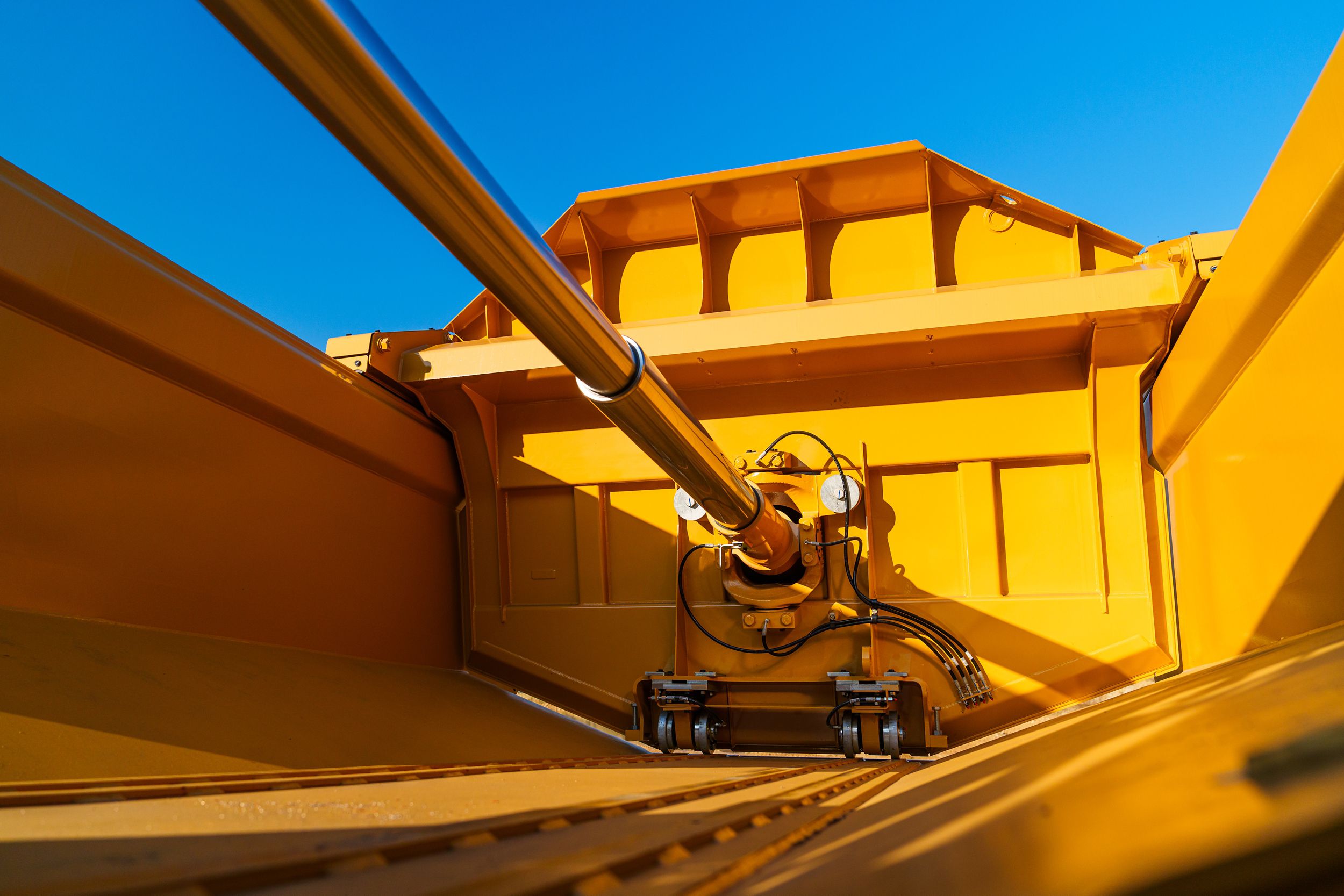

The ejector blade is made from high-strength steel and uses technology similar to that proven in Cat wheel tractor-scrapers.
A three-stage, high-speed, double-acting cylinder is specifically designed for horizontal mounting and smooth load ejection.

LONG TERM VALUE AND DURABILITY

All structures and components are proven through extensive testing and customer experience.
Advanced suspension allows for greater speed over rough terrain, while softening impact loads.
Front suspension oscillates ±6 degrees for a smooth ride.
Frames are designed to handle torque loads, decrease hitch area stress, and optimize suspension geometry.
Frames are robot-welded for maximum durability.

ACHIEVE GREATER PRODUCTIVITY

Advanced Automatic Traction Control (AATC) decreases wheel slippage, delivering maximum traction and productivity. Fully automatic, no operator action.
Automatic Retarder Control (ARC) manages the retarder without any operator interaction. Fully automatic, 100% of the time.
Assisted Hoisting Control allows automatic ejecting of the load.
Combined eject/transmission lever, exclusive to Caterpillar, places multiple controls on the transmission lever, incorporates park brake, and reduces operator interaction by as much as 50%.

POWERFUL EFFICIENCY

Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
This machine design improves fuel economy with minimized maintenance costs and the same great power and response.
Innovative air-management systems optimize airflow and enhance power and fuel efficiency.
Fully automatic retarder control helps prevent engine overspeed, protects powertrain components without any operator intervention.

WORK IN COMFORT

Tilt and telescopic steering column designed for operator comfort and control. This adjustable column allows drivers to fine-tune the steering wheel position for optimal ergonomics, especially during long shifts or rough terrain operations.
Simple, intuitive control and display layouts allow the operator to focus on safe machine operation, while maintaining productivity.
Spacious cab with seats positioned for optimal operator and trainer visibility.
Touchscreen allows easy monitoring and adjustment of systems.
Make and receive hands-free calls via the optional Bluetooth® equipped stereo.
The HVAC system is now managed through the primary display with controls accessible via the jog dial or touchscreen for enhanced operator convenience.
The cab features dedicated storage solutions for everyday items, ensuring convenience and organization for the operator.

TECHNOLOGY THAT GETS WORK DONE

Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Improved payload technology allows operators to view real-time load weights on the integrated display. Updated software and sensors provide accurate data.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Stability Assist software reports information via online VisionLink™, increasing awareness of machine history if a rollover has occurred.

BUILT-IN SAFETY FEATURES

Unique safety feature Dynamic Roll Protection supports rollover prevention and works in parallel with the already successful Cat Detect with Stability Assist, reducing downtime and safety repairs from machine rollover events.
Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.
In-cab tertiary switch allows operator to bring the machine to a safe stop in the unlikely event of both main and secondary brake circuits failing.
Hill Assist reduces potential rollback on grades.
Auto Wait Brake applies the service brakes when neutral is selected and button is pressed, allowing quick and easy control of the machine while dumping and loading.

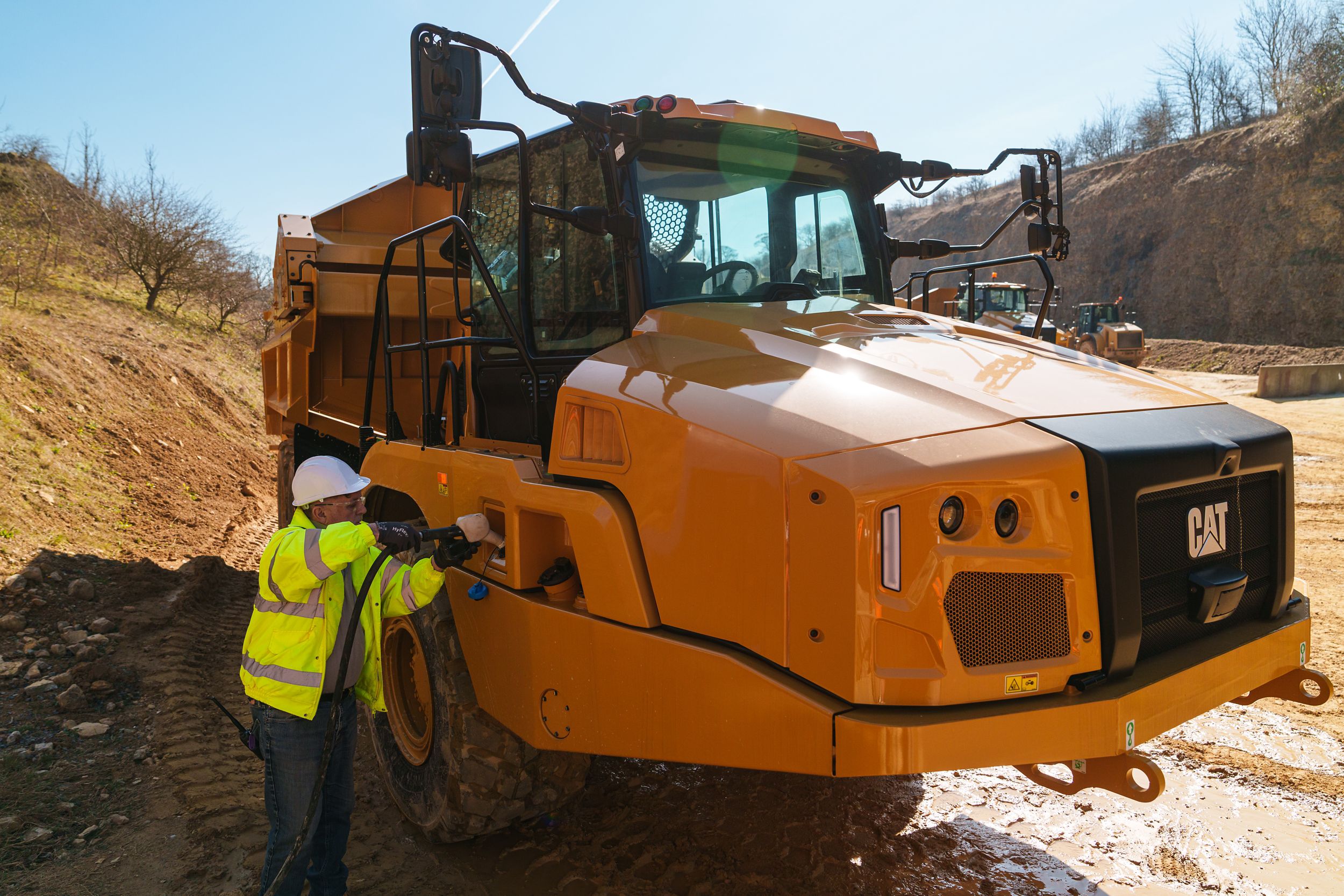

Ground-level fuel fill and diesel exhuast fluid (DEF) fill tanks.
Integrated payload lights [when Cat Payload Monitoring (CPM) option is fitted] with wide angle beam lights on all cab roof corners provide clear visibility to loading tool operator and site controllers.
Secondary steering activates automatically if low pressure is sensed in primary system.
Seat belt indicator provides audible and visible alert if seatbelt is not latched while the machine is on.

LOWER MAINTENANCE COSTS

Durable design and easier servicing mean maximized uptime and reduced service costs.
Universal joints are lubricated for life, eliminating any greasing during the product lifetime.
Coolant formula improves component life by reducing corrosion.

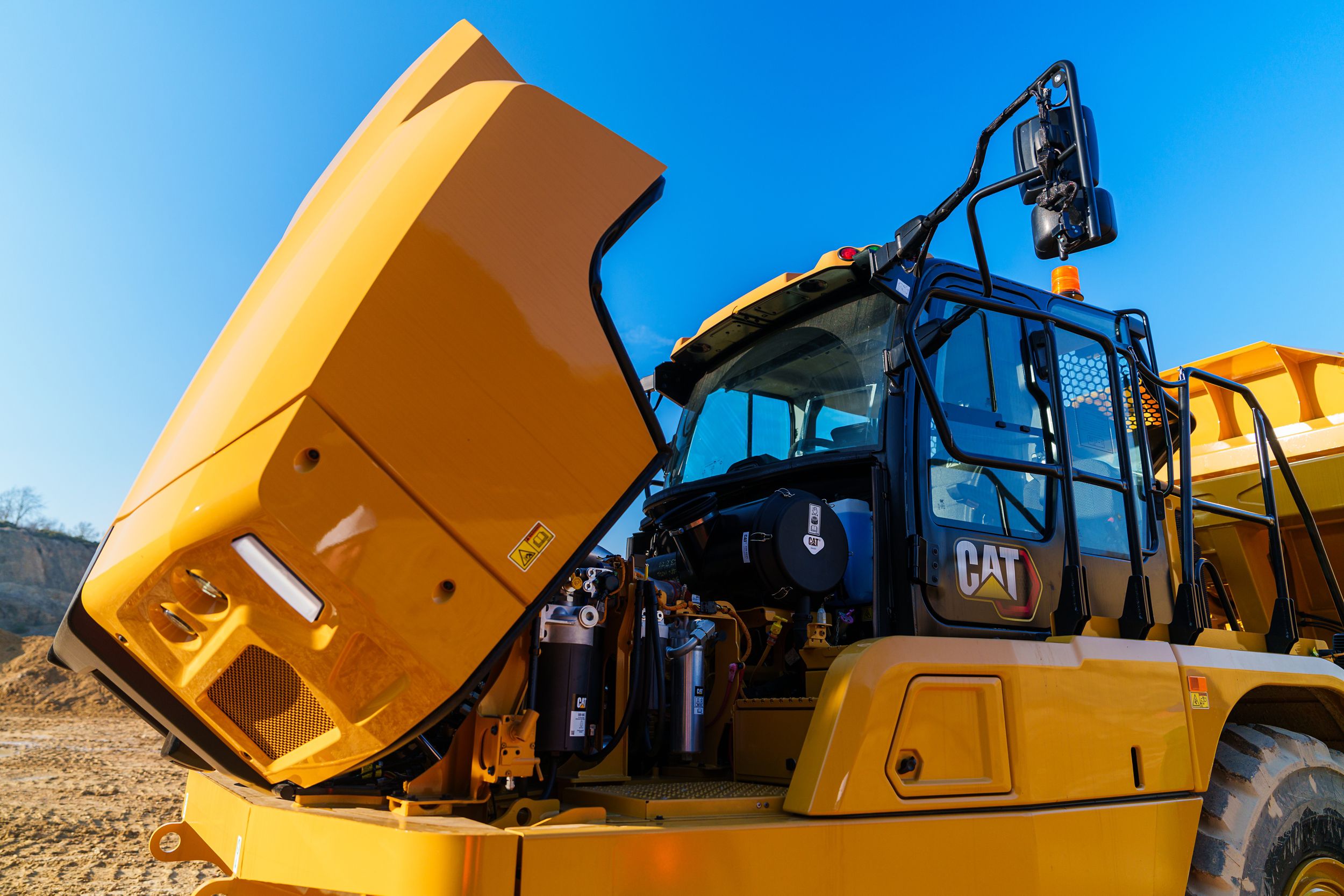

Entire machine is designed for greater ease of maintenance with side-tilting cab, electrically raised hood, access panels, and data connector.
Extended service intervals for the engine and transmission: 1,000 and 2,000 hours, respectively. Doubled from previous models and resulting in lower total cost of ownership.
Durable flexi fender reduces the risk of permanent damages and reduces repair costs.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Adjustable air vents

TECHNOLOGY

Product Link Cellular PLE643

ELECTRICAL AND LIGHTING

Batteries (x2) maintenance free

POWERTRAIN

Auto shift six-speed forward and single reverse transmission

SAFETY

Reverse alarm

GUARDS

Rear window

OTHER STANDARD EQUIPMENT

Mud flaps: wheel arch and body mounted with transportation tiebacks

Product Brochures

Product Brochure #1

Product Brochure #2
