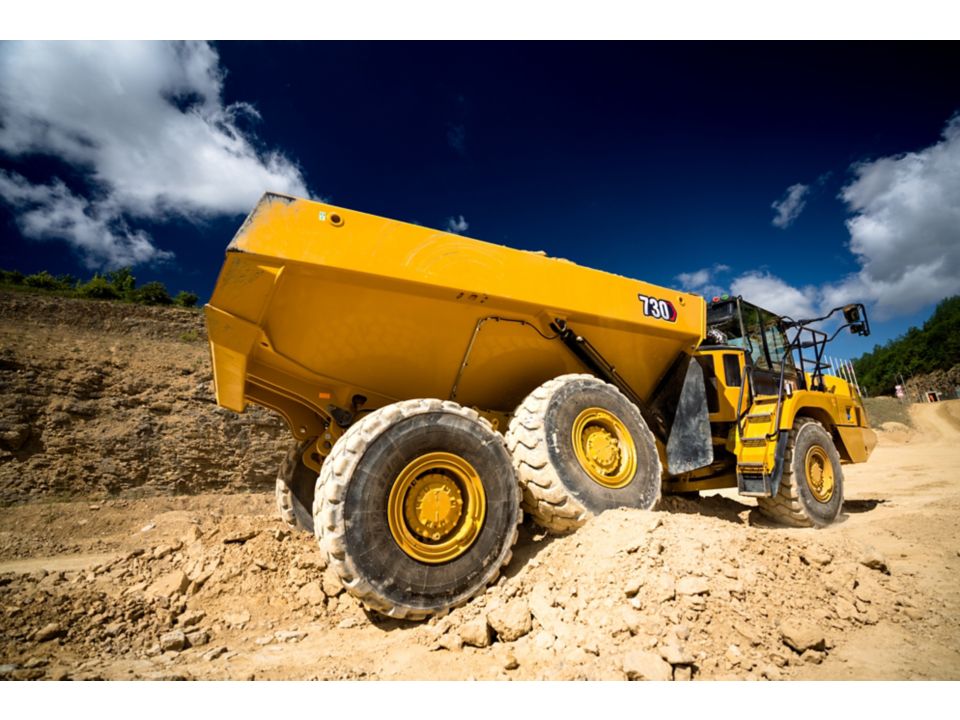

730 | Toromont Cat

Three Axle Articulated Trucks

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Body Capacities

Heaped (SAE 2:1)

23 yd³ 17.5 m³
{"Name":"Heaped (SAE 2:1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"23","MetricUnit":"m³","MetricValue":"17.5","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"3"}
Struck

18.2 yd³ 13.9 m³
{"Name":"Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"18.2","MetricUnit":"m³","MetricValue":"13.9","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"40"}
Tailgate Heaped SAE 2:1

24.6 yd³ 18.8 m³
{"Name":"Tailgate Heaped SAE 2:1","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"24.6","MetricUnit":"m³","MetricValue":"18.8","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"41"}
Tailgate Struck

19.1 yd³ 14.6 m³
{"Name":"Tailgate Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"19.1","MetricUnit":"m³","MetricValue":"14.6","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"42"}

Body Hoist

Raise Time

12 s 12 s
{"Name":"Raise Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"12","MetricUnit":"s","MetricValue":"12","Type":"measurement","SpecificationGroup":"Body Hoist","SortOrder":"110"}
Lower Time

8 s 8 s
{"Name":"Lower Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"8","MetricUnit":"s","MetricValue":"8","Type":"measurement","SpecificationGroup":"Body Hoist","SortOrder":"111"}

Body Plate

Type

High strength Brinell HB450 wear resistant steel
{"Name":"Type","SpecificationId":null,"TextValue":"High strength Brinell HB450 wear resistant steel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Body Plate","SortOrder":"80"}

Body Plate Thickness

Front Plate

0.28 in 7 mm
{"Name":"Front Plate","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.28","MetricUnit":"mm","MetricValue":"7","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"90"}
Base Plate

0.51 in 13 mm
{"Name":"Base Plate","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.51","MetricUnit":"mm","MetricValue":"13","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"91"}
Side Plates

0.43 in 11 mm
{"Name":"Side Plates","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.43","MetricUnit":"mm","MetricValue":"11","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"92"}

Engine

Engine Model

Cat® C13B
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C13B","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Gross Power (SAE J1995)

375 hp 280 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"375","MetricUnit":"kW","MetricValue":"280","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power (SAE J1349)

367 hp 274 kW
{"Name":"Net Power (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"367","MetricUnit":"kW","MetricValue":"274","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Engine Power (ISO 14396)

370 hp 276 kW
{"Name":"Engine Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"370","MetricUnit":"kW","MetricValue":"276","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

5.1 in 130 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.1","MetricUnit":"mm","MetricValue":"130","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Stroke

6.2 in 157 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.2","MetricUnit":"mm","MetricValue":"157","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Displacement

762.8 in³ 12.5 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"762.8","MetricUnit":"l","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Note (2)

Advertised power is tested at 1,800 rpm.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Advertised power is tested at 1,800 rpm.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note (3)

Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}
Note (4)

Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"13"}
Note (5)

Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"14"}
Note (6)

Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
{"Name":"Note (6)","SpecificationId":null,"TextValue":"Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"15"}
No Engine De-rating Below

12500 ft 3810 m
{"Name":"No Engine De-rating Below","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12500","MetricUnit":"m","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"16"}
Peak Engine Torque Gross (SAE J1995)

1579 lbf·ft 2141 N·m
{"Name":"Peak Engine Torque Gross (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1579","MetricUnit":"N·m","MetricValue":"2141","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
Peak Engine Torque Net (SAE J1349)

1554 lbf·ft 2107 N·m
{"Name":"Peak Engine Torque Net (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1554","MetricUnit":"N·m","MetricValue":"2107","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"18"}
Peak Engine Torque Speed

1200 r/min 1200 r/min
{"Name":"Peak Engine Torque Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1200","MetricUnit":"r/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"19"}

Operating Weights

Front Axle - Empty

31658 lb 14360 kg
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"31658","MetricUnit":"kg","MetricValue":"14360","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"70"}
Center Axle - Empty

10340 lb 4690 kg
{"Name":"Center Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"10340","MetricUnit":"kg","MetricValue":"4690","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"71"}
Rear Axle - Empty

9833 lb 4460 kg
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9833","MetricUnit":"kg","MetricValue":"4460","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"72"}
Total - Empty

51831 lb 23510 kg
{"Name":"Total - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"51831","MetricUnit":"kg","MetricValue":"23510","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"73"}
Front Axle - Rated Load

7165 lb 3250 kg
{"Name":"Front Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7165","MetricUnit":"kg","MetricValue":"3250","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"74"}
Center Axle - Rated Load

27282 lb 12375 kg
{"Name":"Center Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"27282","MetricUnit":"kg","MetricValue":"12375","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"75"}
Rear Axle - Rated Load

27282 lb 12375 kg
{"Name":"Rear Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"27282","MetricUnit":"kg","MetricValue":"12375","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"76"}
Total - Rated Load

61729 lb 28000 kg
{"Name":"Total - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"61729","MetricUnit":"kg","MetricValue":"28000","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"77"}
Front Axle - Loaded

38823 lb 17610 kg
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"38823","MetricUnit":"kg","MetricValue":"17610","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"78"}
Center Axle - Loaded

37622 lb 17065 kg
{"Name":"Center Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"37622","MetricUnit":"kg","MetricValue":"17065","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"79"}
Rear Axle - Loaded

37115 lb 16835 kg
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"37115","MetricUnit":"kg","MetricValue":"16835","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"80"}
Total - Loaded

113560 lb 51510 kg
{"Name":"Total - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"113560","MetricUnit":"kg","MetricValue":"51510","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"81"}

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes

4-5
{"Name":"Hydraulic Excavators: 350/352 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"160"}
Hydraulic Excavators: 336 - Passes

5-6
{"Name":"Hydraulic Excavators: 336 - Passes","SpecificationId":null,"TextValue":"5-6","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"161"}
Wheel Loaders: 972/972 XE - Passes

3-4
{"Name":"Wheel Loaders: 972/972 XE - Passes","SpecificationId":null,"TextValue":"3-4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"162"}
Wheel Loaders: 966/966 XE - Passes

4
{"Name":"Wheel Loaders: 966/966 XE - Passes","SpecificationId":null,"TextValue":"4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"163"}
Wheel Loader: 962 - Passes

4-5
{"Name":"Wheel Loader: 962 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"164"}
Wheel Loader: 950 - Passes

5
{"Name":"Wheel Loader: 950 - Passes","SpecificationId":null,"TextValue":"5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"165"}
Note

An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
{"Name":"Note","SpecificationId":null,"TextValue":"An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"166"}

Service Refill Capacities

Fuel Tank

106 gal (US) 400 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"106","MetricUnit":"l","MetricValue":"400","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"100"}
DEF Tank

9 gal (US) 34 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"101"}
Cooling System

22 gal (US) 83 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"22","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"102"}
Hydraulic System

32 gal (US) 123 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"32","MetricUnit":"l","MetricValue":"123","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"103"}
Engine Crankcase

11.4 gal (US) 43 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.4","MetricUnit":"l","MetricValue":"43","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"104"}
Transmission

12.4 gal (US) 47 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"12.4","MetricUnit":"l","MetricValue":"47","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"105"}
Final Drives/Differential

33 gal (US) 125 l
{"Name":"Final Drives/Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"106"}
Output Transfer Gear Box

7 gal (US) 25 l
{"Name":"Output Transfer Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"7","MetricUnit":"l","MetricValue":"25","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"107"}

Sound Levels

Note (1)

The declared dynamic operator sound pressure level is 70 +/- 1 when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"The declared dynamic operator sound pressure level is 70 +/- 1 when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"61"}
Note (2)

Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"62"}

Standards

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"120"}
Cab - FOPS

ISO 3449:2005 Level II
{"Name":"Cab - FOPS","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"121"}
Cab - ROPS

ISO 3471:2008
{"Name":"Cab - ROPS","SpecificationId":null,"TextValue":"ISO 3471:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"122"}
Steering

ISO 5010:2019
{"Name":"Steering","SpecificationId":null,"TextValue":"ISO 5010:2019","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"123"}

Steering

Lock to Lock

4.75 seconds @ 60 rpm
{"Name":"Lock to Lock","SpecificationId":null,"TextValue":"4.75 seconds @ 60 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"150"}

Transmission

Forward - 1

5 mile/h 8 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"50"}
Forward - 2

9 mile/h 15 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"15","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"51"}
Forward - 3

14 mile/h 22 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"52"}
Forward - 4

21 mile/h 34 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"21","MetricUnit":"km/h","MetricValue":"34","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"53"}
Forward - 5

29 mile/h 47 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"29","MetricUnit":"km/h","MetricValue":"47","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"54"}
Forward - 6

34 mile/h 55 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34","MetricUnit":"km/h","MetricValue":"55","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"55"}
Reverse - 1

6 mile/h 9 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6","MetricUnit":"km/h","MetricValue":"9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"56"}

Turning Circle

Turning Dimensions - Steer Angle - Left/Right

45°
{"Name":"Turning Dimensions - Steer Angle - Left/Right","SpecificationId":null,"TextValue":"45°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"140"}
Turning Dimensions - SAE Turning Radius

294 in 7470 mm
{"Name":"Turning Dimensions - SAE Turning Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"294","MetricUnit":"mm","MetricValue":"7470","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"141"}
Turning Dimensions - Clearance Radius

318 in 8075 mm
{"Name":"Turning Dimensions - Clearance Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"318","MetricUnit":"mm","MetricValue":"8075","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"142"}
Turning Dimensions - Inside Radius

153 in 3879 mm
{"Name":"Turning Dimensions - Inside Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153","MetricUnit":"mm","MetricValue":"3879","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"143"}
Turning Dimensions - Aisle Width

210 in 5332 mm
{"Name":"Turning Dimensions - Aisle Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"210","MetricUnit":"mm","MetricValue":"5332","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"144"}
Note

Dimensions are for machines equipped with 23.5R25 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Dimensions are for machines equipped with 23.5R25 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"145"}

Weights

Rated Payload

31 ton (US) 28 t
{"Name":"Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"31","MetricUnit":"t","MetricValue":"28","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

PROVEN RELIABILITY

Cat C13B engine delivers high machine performance across a variety of applications.
Enhanced reliability through commonality and design simplicity with long life to overhaul.
Minimized impact of emissions systems allows excellent response and ample power.
Engine compression brake retarder improves response and increases retarding power for controlled descent of grades.
Aftertreatment technologies reduce emissions, including reducing NOx emissions by 80%.

LONG TERM VALUE AND DURABILITY

All structures and components are proven through extensive testing and customer experience.
Advanced suspension allows for greater speed over rough terrain while softening impact loads.
Front suspension oscillates ±6 degrees for a smooth ride.
Frames are designed to handle torque loads, decrease hitch area stress, and optimize suspension geometry.
Frames are robot-welded for maximum durability.
Redesigned dump body provides reinforced top edge on side rail.

ACHIEVE GREATER PRODUCTIVITY

Advanced Automatic Traction Control (AATC) decreases wheel slippage for maximum traction and productivity. Fully automatic with no operator action.
Body Height Limiting allows operators to set upper and lower height parameters, helping to increase cycle efficiency and ensure the machine operates within jobsite constraints.
Automatic Retarder Control (ARC) manages the retarder without any operator interaction. Fully automatic, 100% of the time.
Assisted Hoisting Control allows automatic tipping and lowering of the dump body at the flick of a switch.
Combined hoist/transmission lever, exclusive to Caterpillar, places multiple controls on the transmission lever to provide easy, intuitive control of gears and hoist functions, reducing operator interaction by as much as 50%.
Optional body heat solution reduces carryback in specific applications.

POWERFUL EFFICIENCY

Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
Next-generation machine design improves fuel economy with minimized maintenance costs and the same great power and response.
Innovative air-management systems optimize airflow and enhance power and fuel efficiency.
Advanced Mechanically-Actuated Electronically Controlled Unit Injection (MEUI)™-C injector platforms deliver increased injection pressures and more precise fuel rates.

WORK IN COMFORT

Interior space is designed to make all aspects of machine operation as simple as possible for every operator.
A keytouch pad enhances the operator experience, while a jog dial provides intuitive control of the updated touchscreen interface.
An optional system uses four discrete cameras to enhance operator visibility around the machine, while an integrated detection system provides both visual and audible alerts to indicate the presence of nearby objects.
Tilt and telescopic steering column designed for operator comfort and control. This adjustable column allows drivers to fine-tune the steering wheel position for optimal ergonomics, especially during long shifts or rough terrain operations.
Simple, intuitive control and display layouts allow the operator to focus on safe machine operation while maintaining productivity.
Touchscreen display allows for easy monitoring and adjustment of systems.
Make and receive hands-free calls via the optional Bluetooth® equipped stereo.
The HVAC system is now managed through the primary display, with controls accessible via the jog dial or touchscreen for enhanced operator convenience.
The cab features dedicated storage solutions for everyday items, ensuring convenience and organization for the operator.

TECHNOLOGY THAT GETS WORK DONE

Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Product Link™ system connects to the machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
Improved payload technology allows operators to view real-time load weights on the integrated display. Updated software and sensors provide accurate data.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Stability Assist software reports information via VisionLink™, increasing awareness of machine history if a rollover has occurred.

BUILT-IN SAFETY FEATURES

Unique safety feature Dynamic Roll Protection supports rollover prevention and works in parallel with the already successful Cat Detect with Stability Assist, reducing downtime and safety repairs from machine rollover events.
Enter the machine safely with machine wakeup and new stairway lighting.
Grab rail allows for easier and safer machine access.
Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.
In-cab tertiary brake switch allows the operator to bring the machine to a safe stop in the unlikely event of both main and secondary brake circuits failing.
Electro-hydraulic secondary steering activates automatically if low pressure is sensed in primary system.
Hill Assist reduces potential rollback on grades.
Auto Wait Brake applies the service brakes when neutral is selected and button is pressed, allowing quick and easy control of the machine while dumping and loading.
Ground-level fuel fill and diesel exhaust fluid (DEF) fill tanks.

LOWER MAINTENANCE COSTS

Durable design and easier servicing mean maximized uptime and reduced service costs.
Universal joints are lubricated for life, eliminating any maintenance.
Coolant formula improves component life by reducing corrosion.
Entire machine is designed for greater ease of maintenance with side-tilting cab, electrically raised hood, access panels, and Cat Data Link connector.
Extended service intervals for the engine and transmission: 1,000 and 2,000 hours, respectively. Doubled from previous models, resulting in lower total cost of ownership.

SUSTAINABILITY

The Cat® C13B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Cat® Stability Assist for Articulated Trucks helps improve machine safety and uptime by increasing awareness of machine stability during operation.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Sun visor

TECHNOLOGY

Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Electrical system: 24-volt, 10A 24- to 12-volt converter

POWERTRAIN

CX31 transmission

SAFETY

Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab

GUARDS

Radiator

OTHER STANDARD EQUIPMENT

S·O·S sampling valves

Product Brochures

Product Brochure #1

Product Brochure #2
