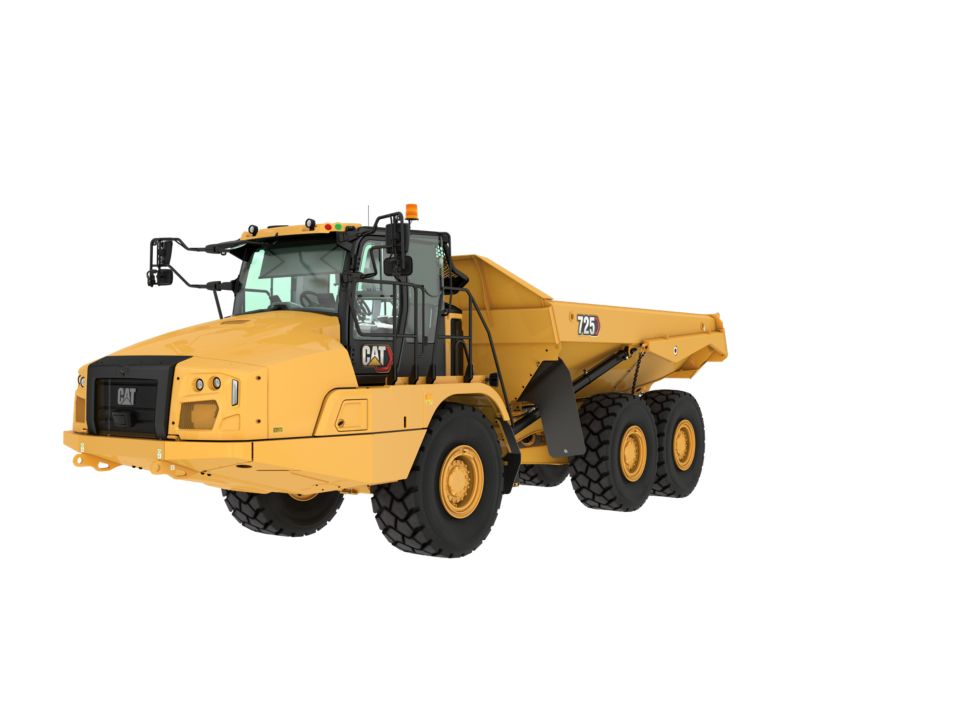

725 | Toromont Cat

Three Axle Articulated Trucks

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Body Capacities

Heaped (SAE 2:1)

19.6 yd³ 15 m³
{"Name":"Heaped (SAE 2:1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"19.6","MetricUnit":"m³","MetricValue":"15","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"3"}
Struck

15 yd³ 11.5 m³
{"Name":"Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"15","MetricUnit":"m³","MetricValue":"11.5","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"40"}
Tailgate Heaped SAE 2:1

20.8 yd³ 15.9 m³
{"Name":"Tailgate Heaped SAE 2:1","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"20.8","MetricUnit":"m³","MetricValue":"15.9","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"41"}
Tailgate Struck

15.7 yd³ 12 m³
{"Name":"Tailgate Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"15.7","MetricUnit":"m³","MetricValue":"12","Type":"measurement","SpecificationGroup":"Body Capacities","SortOrder":"42"}

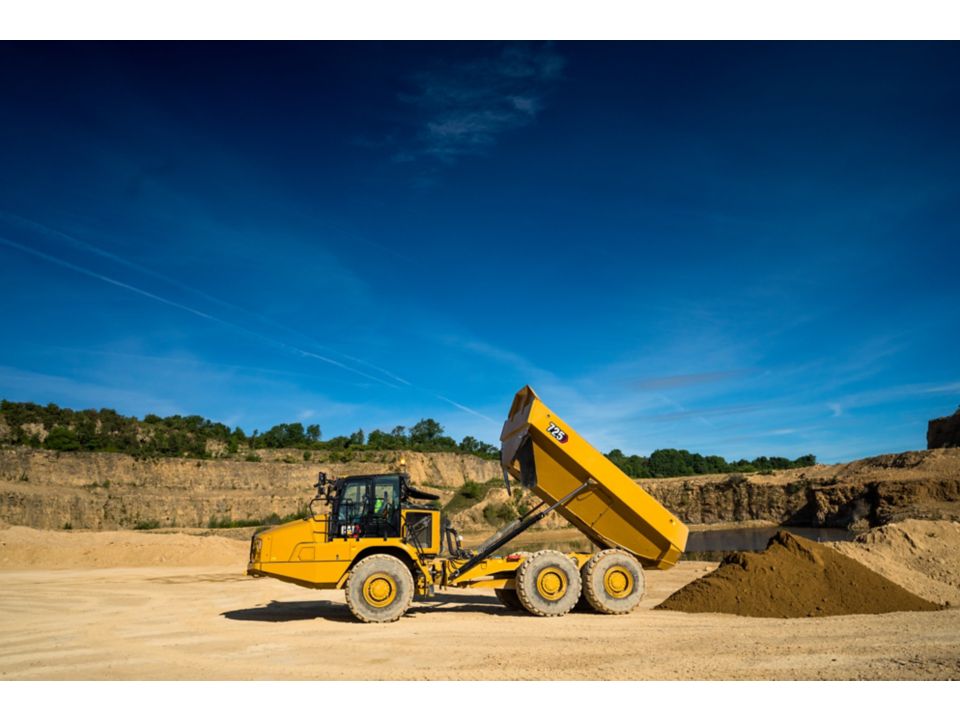

Body Hoist

Raise Time

12 s 12 s
{"Name":"Raise Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"12","MetricUnit":"s","MetricValue":"12","Type":"measurement","SpecificationGroup":"Body Hoist","SortOrder":"110"}
Lower Time

8 s 8 s
{"Name":"Lower Time","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"8","MetricUnit":"s","MetricValue":"8","Type":"measurement","SpecificationGroup":"Body Hoist","SortOrder":"111"}

Body Plate

Type

High strength Brinell HB450 wear resistant steel
{"Name":"Type","SpecificationId":null,"TextValue":"High strength Brinell HB450 wear resistant steel","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Body Plate","SortOrder":"80"}

Body Plate Thickness

Front Plate

0.28 in 7 mm
{"Name":"Front Plate","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.28","MetricUnit":"mm","MetricValue":"7","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"90"}
Base Plate

0.51 in 13 mm
{"Name":"Base Plate","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.51","MetricUnit":"mm","MetricValue":"13","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"91"}
Side Plates

0.43 in 11 mm
{"Name":"Side Plates","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.43","MetricUnit":"mm","MetricValue":"11","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"92"}
Scow

0.51 in 13 mm
{"Name":"Scow","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.51","MetricUnit":"mm","MetricValue":"13","Type":"measurement","SpecificationGroup":"Body Plate Thickness","SortOrder":"93"}

Engine

Engine Model

Cat® C13B
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C13B","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Gross Power (SAE J1995)

352 hp 263 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"352","MetricUnit":"kW","MetricValue":"263","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power (SAE J1349)

345 hp 257 kW
{"Name":"Net Power (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"345","MetricUnit":"kW","MetricValue":"257","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Engine Power (ISO 14396)

347 hp 259 kW
{"Name":"Engine Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"347","MetricUnit":"kW","MetricValue":"259","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

5.12 in 130 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.12","MetricUnit":"mm","MetricValue":"130","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Stroke

6.18 in 157 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.18","MetricUnit":"mm","MetricValue":"157","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Displacement

763 in³ 12.5 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"763","MetricUnit":"l","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Note (1)

Advertised power is tested at 1,700 rpm.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Advertised power is tested at 1,700 rpm.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Note (2)

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note (3)

The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}
Note (4)

Net power when the fan is at maximum speed is 257 kW (345 hp) per the SAE reference conditions.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"Net power when the fan is at maximum speed is 257 kW (345 hp) per the SAE reference conditions.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"13"}
Note (5)

Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"14"}
Note (6)

Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
{"Name":"Note (6)","SpecificationId":null,"TextValue":"Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"15"}
No Engine De-rating Below

12500 ft 3810 m
{"Name":"No Engine De-rating Below","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12500","MetricUnit":"m","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"16"}
Peak Engine Torque Gross (SAE J1995)

1431 lbf·ft 1941 N·m
{"Name":"Peak Engine Torque Gross (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1431","MetricUnit":"N·m","MetricValue":"1941","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
Peak Engine Torque Net (SAE J1349)

1263 lbf·ft 1712 N·m
{"Name":"Peak Engine Torque Net (SAE J1349)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"1263","MetricUnit":"N·m","MetricValue":"1712","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"18"}
Peak Engine Torque Speed

1200 r/min 1200 r/min
{"Name":"Peak Engine Torque Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1200","MetricUnit":"r/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"19"}

Operating Weights

Front Axle - Empty

31438 lb 14260 kg
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"31438","MetricUnit":"kg","MetricValue":"14260","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"70"}
Center Axle - Empty

10009 lb 4540 kg
{"Name":"Center Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"10009","MetricUnit":"kg","MetricValue":"4540","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"71"}
Rear Axle - Empty

9502 lb 4310 kg
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9502","MetricUnit":"kg","MetricValue":"4310","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"72"}
Total - Empty

50949 lb 23110 kg
{"Name":"Total - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"50949","MetricUnit":"kg","MetricValue":"23110","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"73"}
Front Axle - Rated Load

5564 lb 2524 kg
{"Name":"Front Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5564","MetricUnit":"kg","MetricValue":"2524","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"74"}
Center Axle - Rated Load

23673 lb 10738 kg
{"Name":"Center Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"23673","MetricUnit":"kg","MetricValue":"10738","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"75"}
Rear Axle - Rated Load

23673 lb 10738 kg
{"Name":"Rear Axle - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"23673","MetricUnit":"kg","MetricValue":"10738","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"76"}
Total - Rated Load

52911 lb 24000 kg
{"Name":"Total - Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"52911","MetricUnit":"kg","MetricValue":"24000","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"77"}
Front Axle - Loaded

37002 lb 16784 kg
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"37002","MetricUnit":"kg","MetricValue":"16784","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"78"}
Center Axle - Loaded

33682 lb 15278 kg
{"Name":"Center Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33682","MetricUnit":"kg","MetricValue":"15278","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"79"}
Rear Axle - Loaded

33175 lb 15048 kg
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33175","MetricUnit":"kg","MetricValue":"15048","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"80"}
Total - Loaded

103860 lb 47110 kg
{"Name":"Total - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"103860","MetricUnit":"kg","MetricValue":"47110","Type":"measurement","SpecificationGroup":"Operating Weights","SortOrder":"81"}

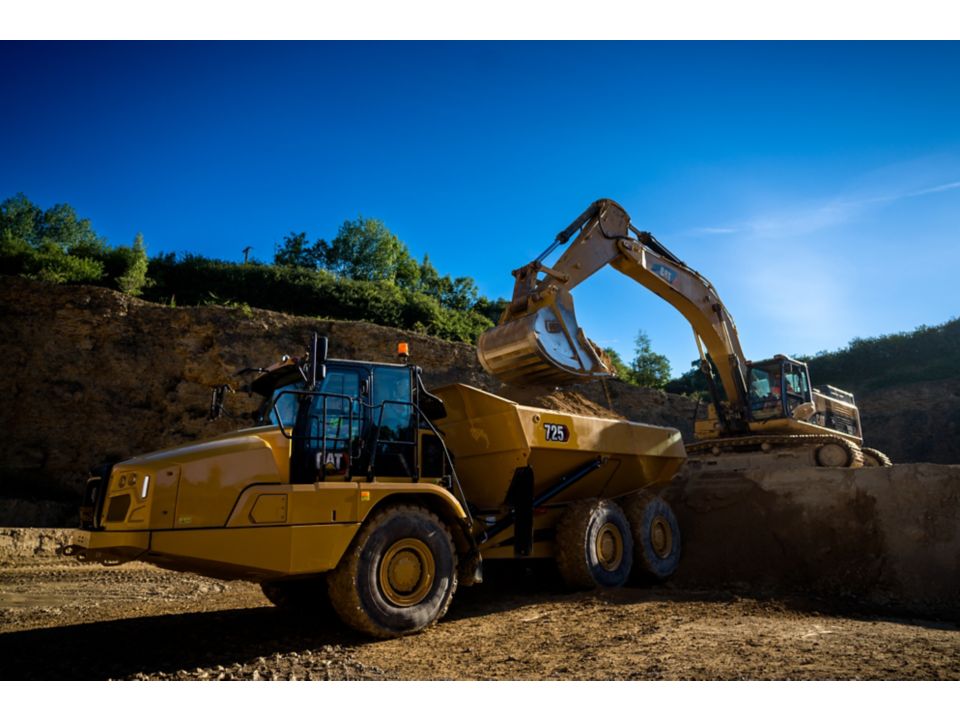

Optimal Loader/Truck Pass Matching

Hydraulic Excavators: 350/352 - Passes

4-5
{"Name":"Hydraulic Excavators: 350/352 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"150"}
Hydraulic Excavators: 336 - Passes

5-6
{"Name":"Hydraulic Excavators: 336 - Passes","SpecificationId":null,"TextValue":"5-6","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"151"}
Wheel Loaders: 972/972 XE - Passes

3-4
{"Name":"Wheel Loaders: 972/972 XE - Passes","SpecificationId":null,"TextValue":"3-4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"152"}
Wheel Loaders: 966/966 XE - Passes

4
{"Name":"Wheel Loaders: 966/966 XE - Passes","SpecificationId":null,"TextValue":"4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"153"}
Wheel Loader: 962 - Passes

4-5
{"Name":"Wheel Loader: 962 - Passes","SpecificationId":null,"TextValue":"4-5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"154"}
Wheel Loader: 950 - Passes

5
{"Name":"Wheel Loader: 950 - Passes","SpecificationId":null,"TextValue":"5","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"155"}
Note

An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
{"Name":"Note","SpecificationId":null,"TextValue":"An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Optimal Loader/Truck Pass Matching","SortOrder":"156"}

Service Refill Capacities

Fuel Tank

105.7 gal (US) 400 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"105.7","MetricUnit":"l","MetricValue":"400","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"100"}
Cooling System

21.9 gal (US) 83 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"21.9","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"101"}
Steering/Hoist Hydraulic System

32.5 gal (US) 123 l
{"Name":"Steering/Hoist Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"32.5","MetricUnit":"l","MetricValue":"123","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"102"}
Engine Crankcase

11.4 gal (US) 43 l
{"Name":"Engine Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.4","MetricUnit":"l","MetricValue":"43","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"103"}
Transmission

12.4 gal (US) 47 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"12.4","MetricUnit":"l","MetricValue":"47","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"104"}
Output Transfer Gear Box

6.6 gal (US) 25 l
{"Name":"Output Transfer Gear Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.6","MetricUnit":"l","MetricValue":"25","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"105"}
Final Drive - Each

33 gal (US) 125 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"106"}
DEF Tank

9 gal (US) 34 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"108"}

Sound Levels

Note (1)

The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"The declared dynamic operator sound pressure level is 69±2 dB(A) when \"ISO 6396:2008\" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"61"}
Note (2)

Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound Levels","SortOrder":"62"}

Standards

Brakes

ISO 3450 – 2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450 – 2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"120"}
Cab - FOPS

ISO 3449 - 2005 Level II
{"Name":"Cab - FOPS","SpecificationId":null,"TextValue":"ISO 3449 - 2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"121"}
Cab - ROPS

ISO 3471 – 2008
{"Name":"Cab - ROPS","SpecificationId":null,"TextValue":"ISO 3471 – 2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"122"}
Steering

ISO 5010 – 2019
{"Name":"Steering","SpecificationId":null,"TextValue":"ISO 5010 – 2019","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"123"}

Steering

Lock to Lock

4.75 seconds @ 60 rpm
{"Name":"Lock to Lock","SpecificationId":null,"TextValue":"4.75 seconds @ 60 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"140"}

Transmission

Forward - 1

5 mile/h 8 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"50"}
Forward - 2

9 mile/h 15 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"15","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"51"}
Forward - 3

14 mile/h 22 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"52"}
Forward - 4

21 mile/h 34 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"21","MetricUnit":"km/h","MetricValue":"34","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"53"}
Forward - 5

29 mile/h 47 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"29","MetricUnit":"km/h","MetricValue":"47","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"54"}
Forward - 6

34 mile/h 55 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34","MetricUnit":"km/h","MetricValue":"55","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"55"}
Reverse - 1

6 mile/h 9 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6","MetricUnit":"km/h","MetricValue":"9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"56"}

Turning Circle

Turning Dimensions - Steer Angle - Left/Right

45°
{"Name":"Turning Dimensions - Steer Angle - Left/Right","SpecificationId":null,"TextValue":"45°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"130"}
Turning Dimensions - SAE Turning Radius

294 in 7470 mm
{"Name":"Turning Dimensions - SAE Turning Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"294","MetricUnit":"mm","MetricValue":"7470","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"131"}
Turning Dimensions - Clearance Radius

318 in 8075 mm
{"Name":"Turning Dimensions - Clearance Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"318","MetricUnit":"mm","MetricValue":"8075","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"132"}
Turning Dimensions - Inside Radius

153 in 3879 mm
{"Name":"Turning Dimensions - Inside Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153","MetricUnit":"mm","MetricValue":"3879","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"133"}
Turning Dimensions - Aisle Width

210 in 5332 mm
{"Name":"Turning Dimensions - Aisle Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"210","MetricUnit":"mm","MetricValue":"5332","Type":"measurement","SpecificationGroup":"Turning Circle","SortOrder":"134"}
Note

Dimensions are for machines equipped with 23.5R25 tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Dimensions are for machines equipped with 23.5R25 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Turning Circle","SortOrder":"135"}

Weights

Rated Payload

26.5 ton (US) 24 t
{"Name":"Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"26.5","MetricUnit":"t","MetricValue":"24","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}

Benefits

PROVEN RELIABILITY

Cat C13B engine delivers proven reliability across a variety of platforms.
Terrain-based throttle control smooths throttle input over rough terrain to improve ride quality.
Enhanced reliability through commonality and design simplicity with long life to overhaul.
Minimized impact of emissions systems allows excellent response and ample power.
Hydraulic retarder improves response and increases retarding power for controlled descent of grades.

LONG TERM VALUE AND DURABILITY

All structures and components are proven through extensive testing and customer experience.
Advanced suspension allows greater speed over rough terrain, while softening impact loads.
Front suspension oscillates ±6 degrees for a smooth ride.
Frames are designed to handle torque loads, decrease hitch area stress, and optimize suspension geometry.
Frames are robot-welded for maximum durability.
Directional shift protection protects the powertrain when quickly moving from reverse to forward or forward to reverse.
Designed dump body provides reinforced top edge on side rail.

ACHIEVE GREATER PRODUCTIVITY

Advanced Automatic Traction Control (AATC) decreases wheel slippage, delivering maximum traction and increased productivity. Fully automatic with no operator action.
Automatic Retarder Control (ARC) manages the retarder without any operator interaction. Fully automatic 100% of the time.
Combined hoist/transmission lever, exclusive to Caterpillar, places multiple controls on transmission lever, incorporates park brake, and reduces operator interaction by as much as 50%.
Machine wake up initiates machine systems when truck is de-isolated or cab door is opened.
Low profile exhaust stack reduces overall height and eliminates the need for removal to transport.

POWERFUL EFFICIENCY

Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
This machine design improves fuel economy with minimized maintenance costs and the same great power and response.
Innovative air-management systems optimize airflow and enhance power and fuel efficiency.
Fully automatic retarder control helps prevent engine overspeed, protects powertrain components without any operator intervention.

WORK IN COMFORT

Simple, intuitive control and display layouts allow operator to focus on safe machine operation, while maintaining productivity.
An optional system uses four discrete cameras to enhance operator visibility around the machine, while an integrated detection system provides both visual and audible alerts to indicate the presence of nearby objects.
The HVAC system is now managed through the primary display with controls accessible via the jog dial or touchscreen for enhanced operator convenience.
Cab-mounted mirrors for excellent visibility, reduced vibration, and easy folding.
Front visibility mirror gives an improved view immediately in front of the machine.
Touchscreen allows easy monitoring and adjustment of systems.
Sliding windows improve ventilation and communication.
The cab features dedicated storage solutions for everyday items, ensuring convenience and organization for the operator, granting comfort and room for movements.

TECHNOLOGY THAT GETS WORK DONE

Integrated systems give you the ability to make timely, fact-based decisions to maximize efficiency, improve productivity, and lower costs.
Product Link™ system connects to each machine wirelessly, allowing you to monitor location, hours, fuel use, productivity, idle time, and diagnostic codes.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Stability assist software reports information via online VisionLink®, increasing awareness of machine history if a rollover has occurred.
Improved payload technology allows operators to view real-time load weights on the integrated display. Updated software and sensors provide accurate data.

BUILT-IN SAFETY FEATURES

Unique safety feature Dynamic Roll Protection supports rollover prevention and works in parallel with the already successful Cat Detect with Stability Assist, reducing downtime and safety repairs from machine rollover events.
Seat belt indicator provides audible and visible alert if seatbelt is not latched while the machine is on.
Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.
In-cab tertiary brake switch allows operator to bring the machine to a safe stop in the unlikely event of both main and secondary brake circuits failing.
Integrated payload lights (when Cat Payload Monitoring (CPM) option is fitted) with wide angle beam lights on all cab roof corners provide clear visibility to loading tool operator and site controllers.
Secondary steering activates automatically if low pressure is sensed in primary system.
Ground-level fuel fill and diesel exhaust fluid (DEF) fill tanks.
Hill Assist reduces potential rollback on grades.
Auto Wait Brake applies the service brakes when neutral is selected and button is pressed, allowing quick and easy control of the machine while dumping and loading.

LOWER MAINTENANCE COSTS

Durable flexi fender reduces the risk of permanent damages and reduces repair costs.
Durable design and easier servicing mean maximized uptime and reduced service costs.
Universal joints are lubricated for life, eliminating any maintenance.
Coolant formula improves component life by reducing corrosion.
Entire machine is designed for greater ease of maintenance with side-tilting cab, electrically raised hood, access panels, and Cat Data Link connector.
Extended service intervals for the engine and transmission: 1,000 and 2,000 hours, respectively. Doubled from previous models, resulting in lower total cost of ownership.

SUSTAINABILITY

The Cat® C13B engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Cat® Stability Assist for Articulated Trucks helps improve machine safety and uptime by increasing awareness of machine stability during operation.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt

TECHNOLOGY

Cat® Detect with Stability Assist

ELECTRICAL AND LIGHTING

Electrical system: 24-volt, 5A 24- to 12-volt converter

POWERTRAIN

Three axle, six-wheel drive

SAFETY

Reverse alarm

GUARDS

Radiator

OTHER STANDARD EQUIPMENT

S·O·S sampling valves

Product Brochures

Product Brochure #1

Product Brochure #2
