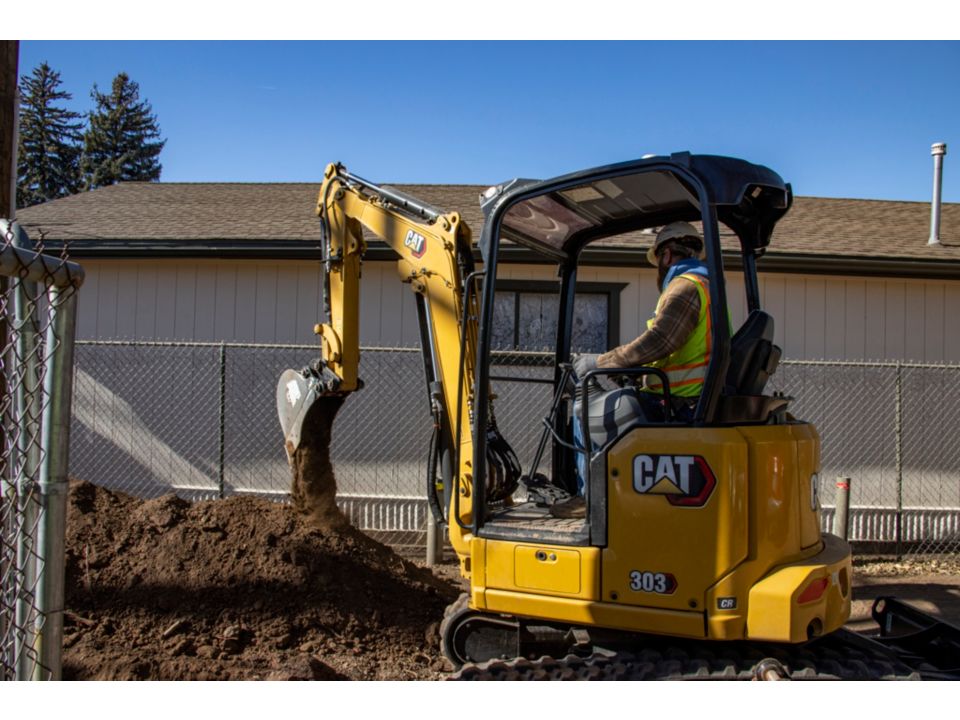

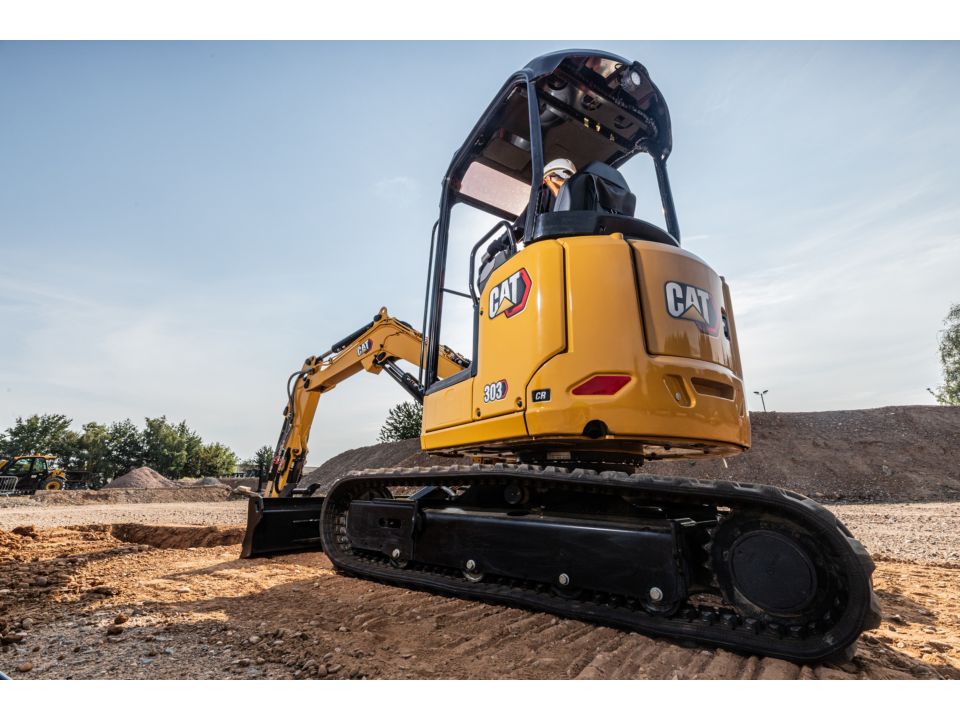

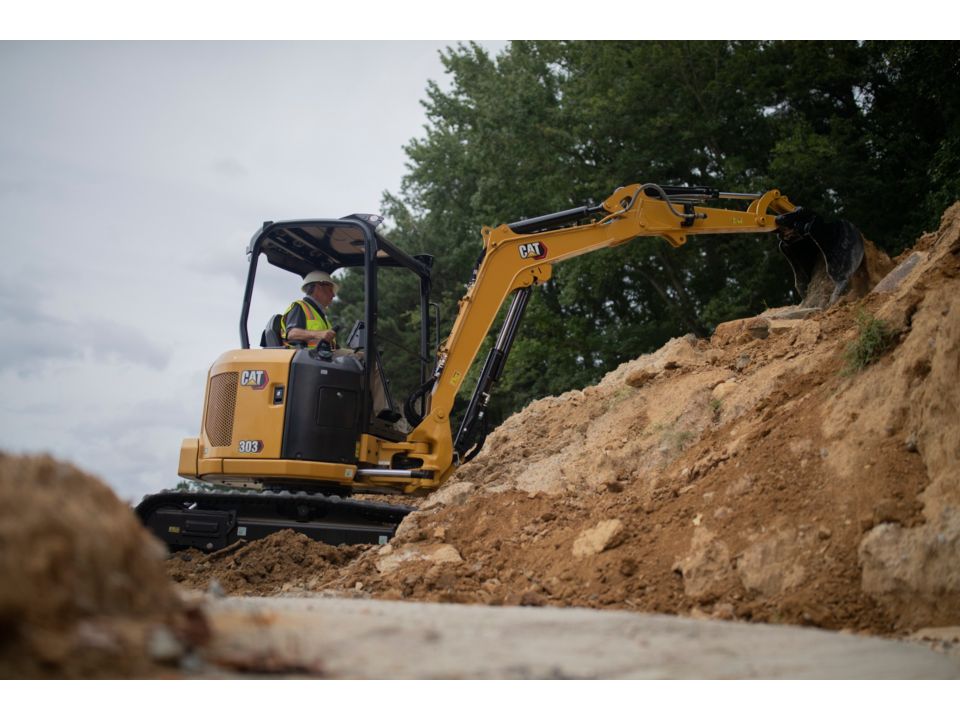

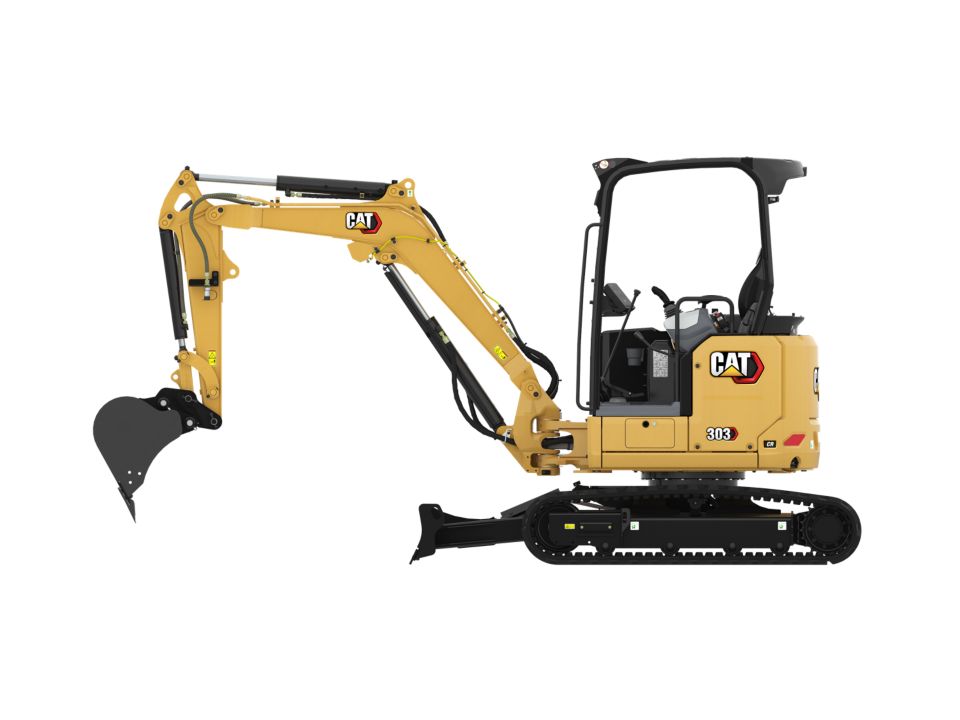

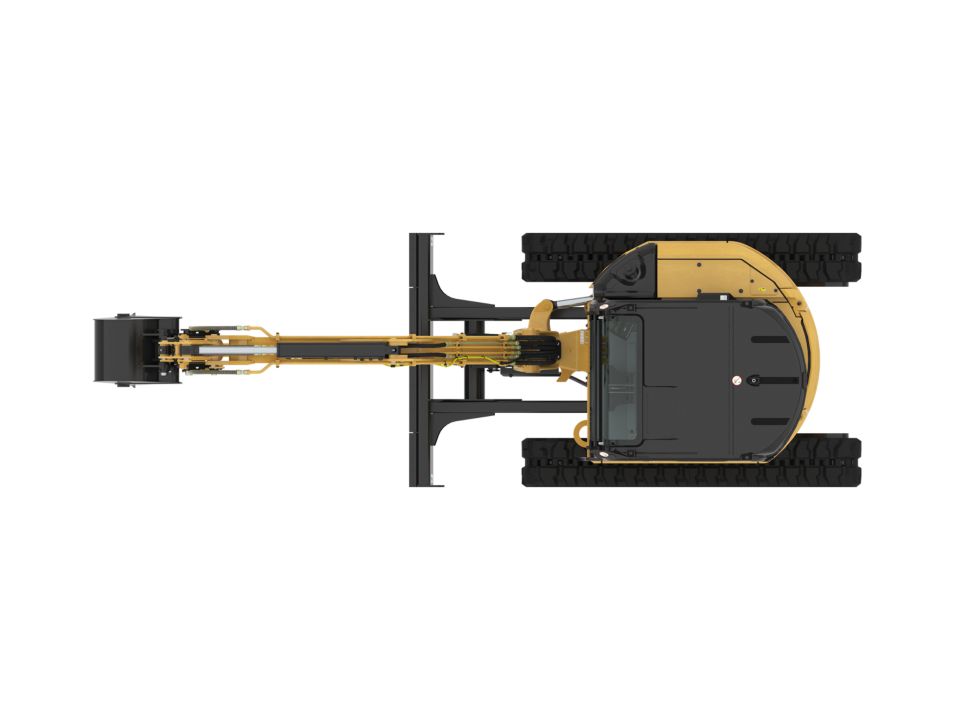

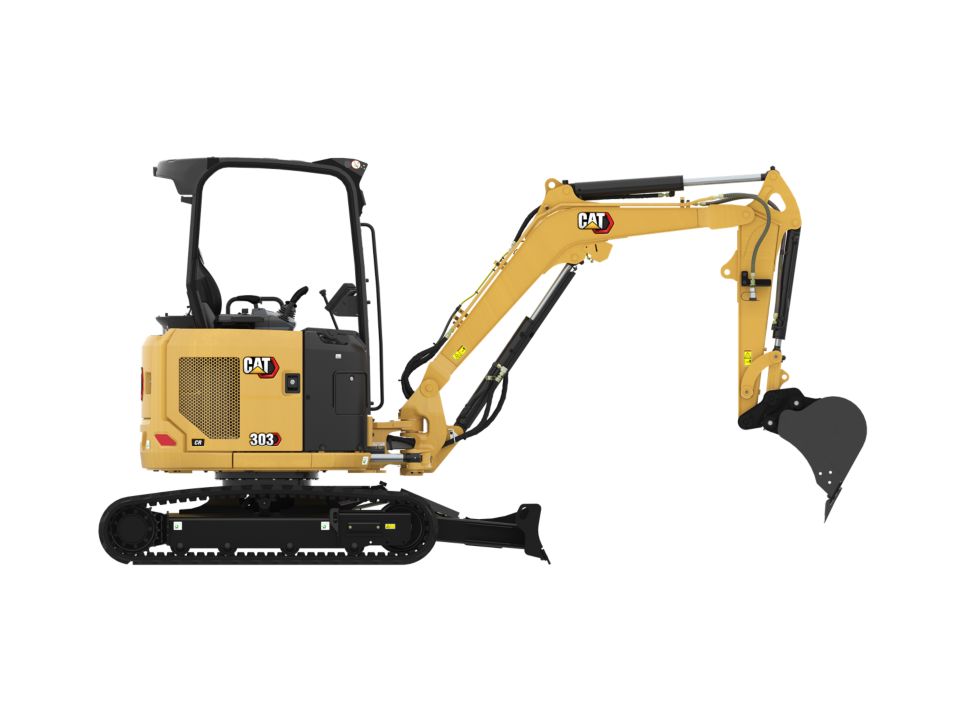

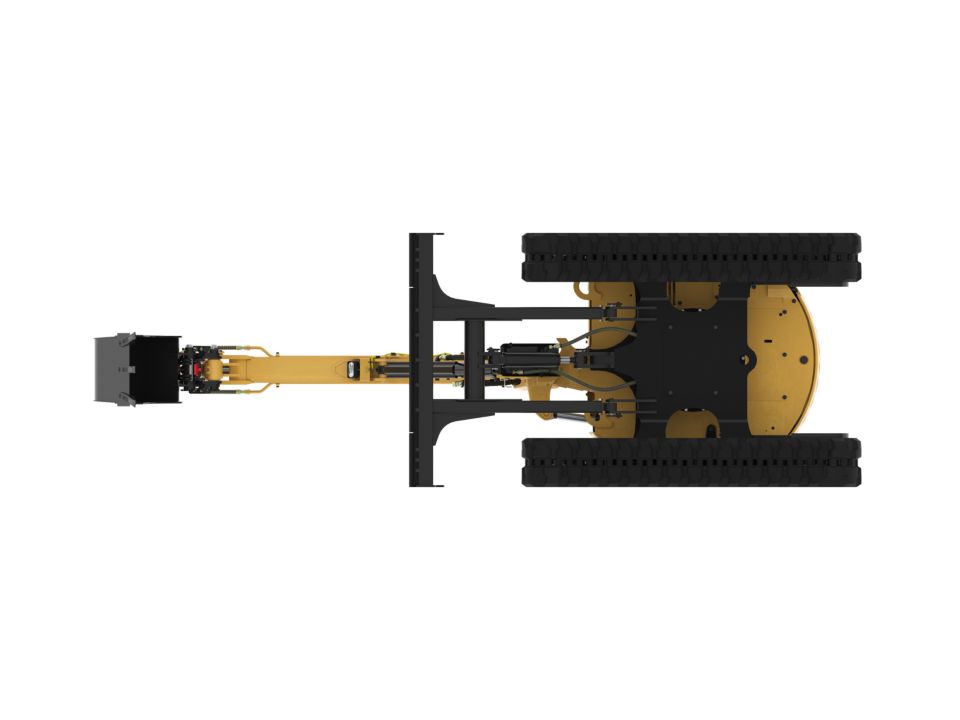

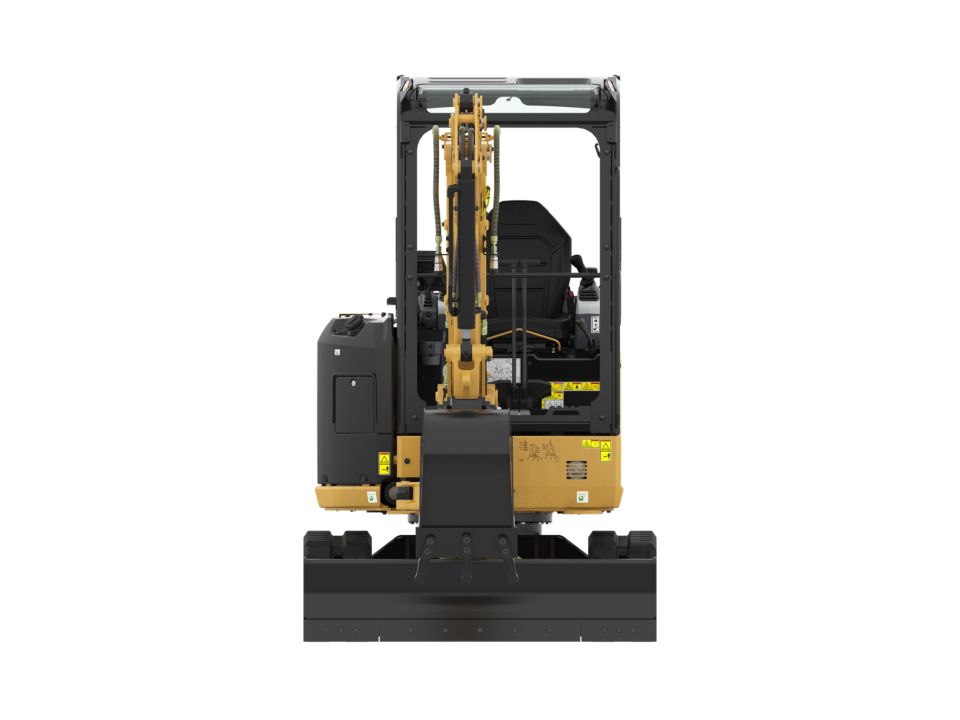

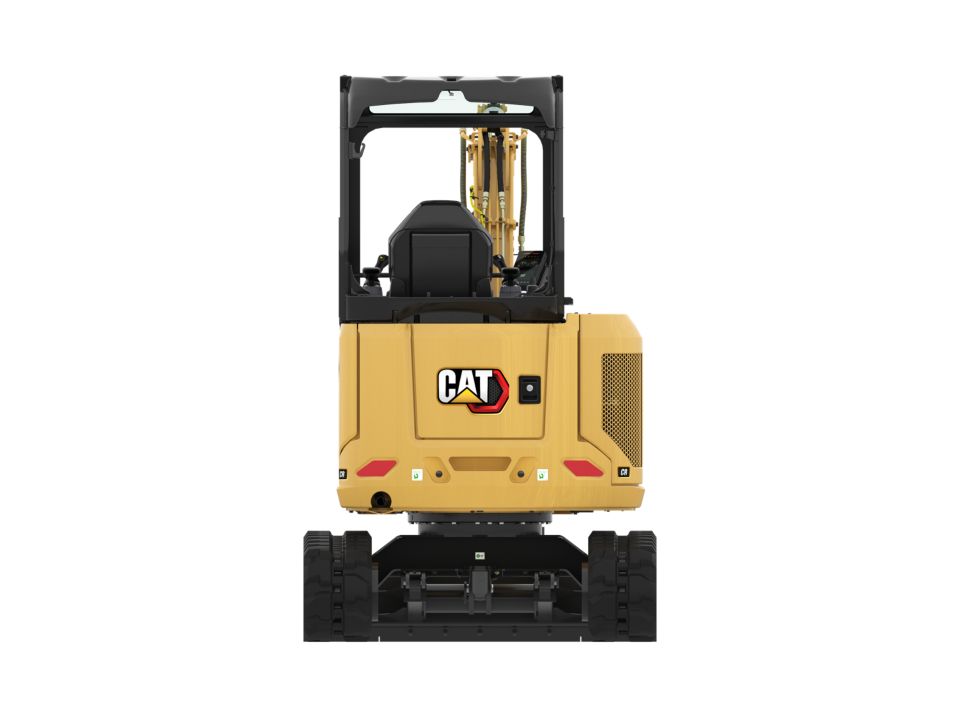

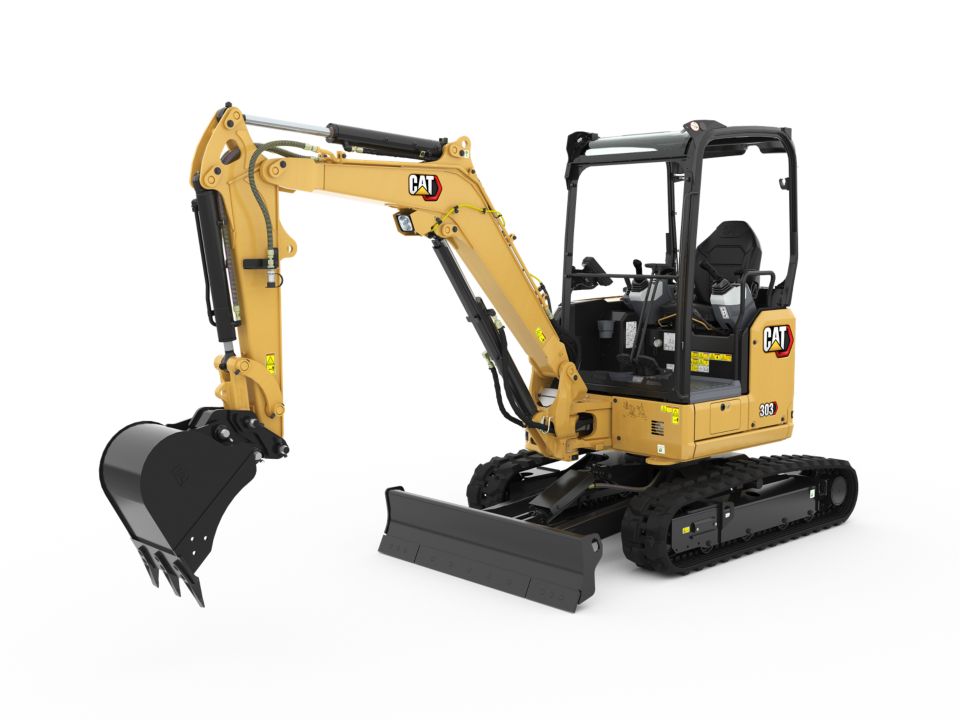

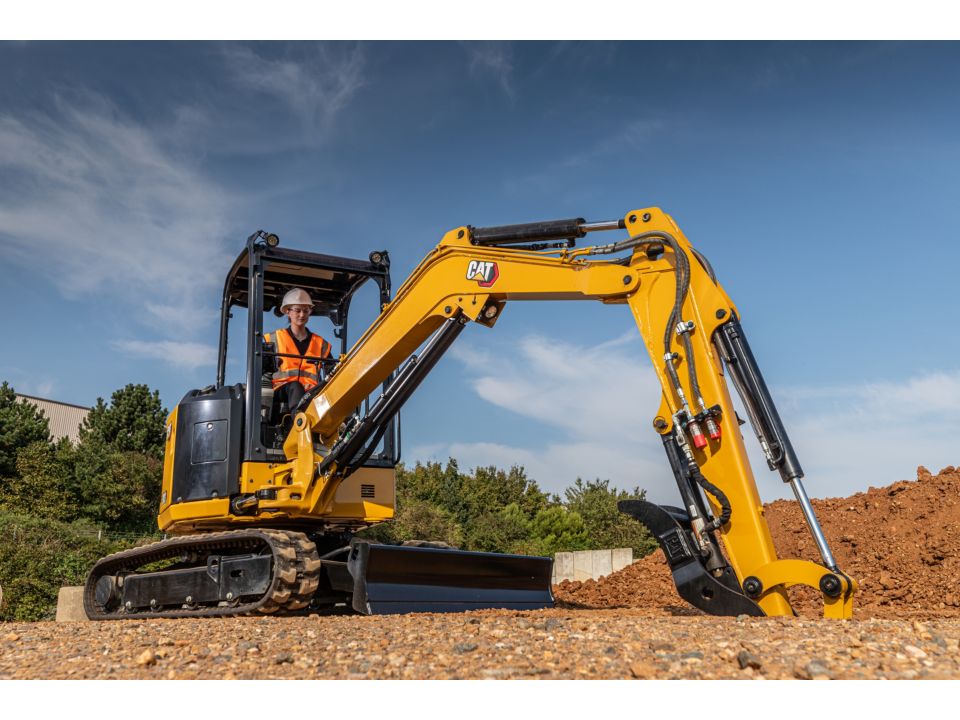

303 CR

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"4"}

Blade

Width

61 in 1550 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"61","MetricUnit":"mm","MetricValue":"1550","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"4"}
Height

13.8 in 350 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"13.8","MetricUnit":"mm","MetricValue":"350","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"5"}

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)

ISO 12117-2:2008
{"Name":"Roll Over Protective Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 12117-2:2008","EnglishUnit":"lb","EnglishValue":"6670","MetricUnit":"kg","MetricValue":"3025","Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"4"}
Tip Over Protective Structure (TOPS)

ISO 12117:1997
{"Name":"Tip Over Protective Structure (TOPS)","SpecificationId":null,"TextValue":"ISO 12117:1997","EnglishUnit":"gal (US)","EnglishValue":"1.1","MetricUnit":"l","MetricValue":"4","Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"5"}
Top Guard

ISO 10262:1998 (Level I)
{"Name":"Top Guard","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":"dB(A)","EnglishValue":"78","MetricUnit":"dB(A)","MetricValue":"78","Type":"text","SpecificationGroup":"Certification - Cab and Canopy","SortOrder":"6"}

Dimensions - Long Stick

Dig Depth

116.1 in 2950 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"116.1","MetricUnit":"mm","MetricValue":"2950","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"3"}
Vertical Wall

81.5 in 2070 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"81.5","MetricUnit":"mm","MetricValue":"2070","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"5"}
Maximum Reach - Ground Level

201.2 in 5110 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"201.2","MetricUnit":"mm","MetricValue":"5110","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"6"}
Maximum Reach

206.3 in 5240 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"206.3","MetricUnit":"mm","MetricValue":"5240","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"7"}
Maximum Dig Height

183.1 in 4650 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"183.1","MetricUnit":"mm","MetricValue":"4650","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"8"}
Maximum Dump Clearance

130.3 in 3310 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"130.3","MetricUnit":"mm","MetricValue":"3310","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"9"}
Boom In Reach

74.2 in 1910 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.2","MetricUnit":"mm","MetricValue":"1910","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"10"}
Tail Swing without Counterweight

30.5 in 775 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.5","MetricUnit":"mm","MetricValue":"775","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"11"}
Tail Swing - with Extra Counterweight

35 in 890 mm
{"Name":"Tail Swing - with Extra Counterweight","SpecificationId":null,"TextValue":"ISO 12117:1997","EnglishUnit":"in","EnglishValue":"35","MetricUnit":"mm","MetricValue":"890","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"12"}
Maximum Blade Depth

21.1 in 535 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.1","MetricUnit":"mm","MetricValue":"535","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"13"}
Maximum Blade Height

15.2 in 385 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"15.2","MetricUnit":"mm","MetricValue":"385","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"14"}
Boom Height - Shipping Position

75.6 in 1920 mm
{"Name":"Boom Height - Shipping Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"75.6","MetricUnit":"mm","MetricValue":"1920","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"15"}
O/A Shipping Height

97.6 in 2480 mm
{"Name":"O/A Shipping Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"97.6","MetricUnit":"mm","MetricValue":"2480","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"16"}
Swing Bearing - Height

22.4 in 570 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":"in","EnglishValue":"22.4","MetricUnit":"mm","MetricValue":"570","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"17"}
O/A Undercarriage Length

81.5 in 2070 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"81.5","MetricUnit":"mm","MetricValue":"2070","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"18"}
Overall Shipping Length*

179.5 in 4560 mm
{"Name":"Overall Shipping Length*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"179.5","MetricUnit":"mm","MetricValue":"4560","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"19"}
Boom Swing - Right

34.3 in 870 mm
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":"in","EnglishValue":"34.3","MetricUnit":"mm","MetricValue":"870","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"20"}
Boom Swing - Left

25.2 in 640 mm
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"25.2","MetricUnit":"mm","MetricValue":"640","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"21"}
Track Belt/Shoe Width

11.8 in 300 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.8","MetricUnit":"mm","MetricValue":"300","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"22"}
Track Width

61 in 1550 mm
{"Name":"Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"61","MetricUnit":"mm","MetricValue":"1550","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"23"}
Stick Length

61.4 in 1560 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"61.4","MetricUnit":"mm","MetricValue":"1560","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"24"}
Minimum Ground Clearance Below Undercarriage

12.2 in 310 mm
{"Name":"Minimum Ground Clearance Below Undercarriage","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12.2","MetricUnit":"mm","MetricValue":"310","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"24"}
Note

*Overall Shipping Length depends on blade position during shipment.
{"Name":"Note","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":"in","EnglishValue":"49.6","MetricUnit":"mm","MetricValue":"1260","Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"26"}

Dimensions - Standard Stick

Dig Depth

104.3 in 2650 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"104.3","MetricUnit":"mm","MetricValue":"2650","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"4"}
Vertical Wall

71.7 in 1820 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":"in","EnglishValue":"71.7","MetricUnit":"mm","MetricValue":"1820","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"5"}
Maximum Reach - Ground Level

190.2 in 4830 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"190.2","MetricUnit":"mm","MetricValue":"4830","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"6"}
Maximum Reach

196.1 in 4980 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"196.1","MetricUnit":"mm","MetricValue":"4980","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"7"}
Maximum Dig Height

177.6 in 4510 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"177.6","MetricUnit":"mm","MetricValue":"4510","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"8"}
Maximum Dump Clearance

124.8 in 3170 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"124.8","MetricUnit":"mm","MetricValue":"3170","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"9"}
Boom In Reach

68.9 in 1750 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68.9","MetricUnit":"mm","MetricValue":"1750","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"10"}
Tail Swing without Counterweight

30.5 in 775 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.5","MetricUnit":"mm","MetricValue":"775","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"11"}
Tail Swing with Extra Counterweight

35 in 890 mm
{"Name":"Tail Swing with Extra Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"35","MetricUnit":"mm","MetricValue":"890","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"12"}
Maximum Blade Depth

21.1 in 535 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":"in","EnglishValue":"21.1","MetricUnit":"mm","MetricValue":"535","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"13"}
Maximum Blade Height

15.2 in 385 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"15.2","MetricUnit":"mm","MetricValue":"385","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"14"}
Boom Height - Shipping Position

63 in 1600 mm
{"Name":"Boom Height - Shipping Position","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"63","MetricUnit":"mm","MetricValue":"1600","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"15"}
O/A Shipping Height

97.6 in 2480 mm
{"Name":"O/A Shipping Height","SpecificationId":null,"TextValue":"***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.","EnglishUnit":"in","EnglishValue":"97.6","MetricUnit":"mm","MetricValue":"2480","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"16"}
Swing Bearing - Height

22.4 in 570 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22.4","MetricUnit":"mm","MetricValue":"570","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"17"}
O/A Undercarriage Length

81.5 in 2070 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"81.5","MetricUnit":"mm","MetricValue":"2070","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"18"}
Overall Shipping Length*

177.6 in 4510 mm
{"Name":"Overall Shipping Length*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"177.6","MetricUnit":"mm","MetricValue":"4510","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"19"}
Boom Swing - Right

34.3 in 870 mm
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"34.3","MetricUnit":"mm","MetricValue":"870","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"20"}
Boom Swing - Left

25.2 in 640 mm
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"25.2","MetricUnit":"mm","MetricValue":"640","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"21"}
Track Belt/Shoe Width

11.8 in 300 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.8","MetricUnit":"mm","MetricValue":"300","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"22"}
Minimum Ground Clearance Below Undercarriage

12.2 in 310 mm
{"Name":"Minimum Ground Clearance Below Undercarriage","SpecificationId":null,"TextValue":"European Union Directive “2000/14/EC”","EnglishUnit":"in","EnglishValue":"12.2","MetricUnit":"mm","MetricValue":"310","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"24"}
Stick Length

49.6 in 1260 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"49.6","MetricUnit":"mm","MetricValue":"1260","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"25"}
Note

*Overall Shipping Length depends on blade position during shipment.
{"Name":"Note","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"26"}

Engine

Net Power

23.6 hp 17.6 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"23.6","MetricUnit":"kW","MetricValue":"17.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

C1.1 Turbo
{"Name":"Engine Model","SpecificationId":null,"TextValue":"C1.1 Turbo","EnglishUnit":"lb","EnglishValue":"7817","MetricUnit":"kg","MetricValue":"3545","Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC

23.6 hp 17.6 kW
{"Name":"Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"23.6","MetricUnit":"kW","MetricValue":"17.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power - ISO 9249

24.7 hp 18.4 kW
{"Name":"Net Power - ISO 9249","SpecificationId":null,"TextValue":"C1.1 Turbo","EnglishUnit":"hp","EnglishValue":"24.7","MetricUnit":"kW","MetricValue":"18.4","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Bore

3 in 77 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"77","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Stroke

3.2 in 81 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"81","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Displacement

69 in³ 1.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"69","MetricUnit":"l","MetricValue":"1.1","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Emissions

Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.","EnglishUnit":"°","EnglishValue":"50","MetricUnit":"°","MetricValue":"50","Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Note

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":"in","EnglishValue":"177.6","MetricUnit":"mm","MetricValue":"4510","Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note (1)

Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.","EnglishUnit":"in","EnglishValue":"81.5","MetricUnit":"mm","MetricValue":"2070","Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}

Hydraulic System

Type

Load Sensing Hydraulics with Variable Displacement Piston Pump
{"Name":"Type","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"4"}
Pump Flow at 2,400 rpm

26 gpm 100 L/min
{"Name":"Pump Flow at 2,400 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"26","MetricUnit":"L/min","MetricValue":"100","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"5"}
Operating Pressure - Equipment

3553 psi 245 bar
{"Name":"Operating Pressure - Equipment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"6"}
Operating Pressure - Travel

3553 psi 245 bar
{"Name":"Operating Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"7"}
Operating Pressure - Swing

2553 psi 176 bar
{"Name":"Operating Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2553","MetricUnit":"bar","MetricValue":"176","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"8"}
Auxiliary Circuit - Primary - Flow

17 gpm 65 L/min
{"Name":"Auxiliary Circuit - Primary - Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"17","MetricUnit":"L/min","MetricValue":"65","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"9"}
Auxiliary Circuit - Primary - Pressure

3553 psi 245 bar
{"Name":"Auxiliary Circuit - Primary - Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"10"}
Auxiliary Circuit - Secondary - Flow

7 gpm 25 L/min
{"Name":"Auxiliary Circuit - Secondary - Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"7","MetricUnit":"L/min","MetricValue":"25","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"11"}
Auxiliary Circuit - Secondary - Pressure

3553 psi 245 bar
{"Name":"Auxiliary Circuit - Secondary - Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3553","MetricUnit":"bar","MetricValue":"245","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"12"}
Digging Force - Stick - Standard

3732 lbf 16.6 kN
{"Name":"Digging Force - Stick - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"3732","MetricUnit":"kN","MetricValue":"16.6","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"13"}
Digging Force - Stick - Long

3327 lbf 14.8 kN
{"Name":"Digging Force - Stick - Long","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"3327","MetricUnit":"kN","MetricValue":"14.8","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"14"}
Digging Force - Bucket

6385 lbf 28.4 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"6385","MetricUnit":"kN","MetricValue":"28.4","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"15"}
Note

* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
{"Name":"Note","SpecificationId":null,"TextValue":"* Flow and pressure are not combinable. Under load, as flow rises pressure goes down.","EnglishUnit":"mile/h","EnglishValue":"1.6","MetricUnit":"km/h","MetricValue":"2.6","Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"16"}

Service Refill Capacities

Cooling System

1.1 gal (US) 4 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.1","MetricUnit":"l","MetricValue":"4","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"4"}
Engine Oil

1.1 gal (US) 4 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.1","MetricUnit":"l","MetricValue":"4","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"5"}
Fuel Tank

11.9 gal (US) 45 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11.9","MetricUnit":"l","MetricValue":"45","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"6"}
Hydraulic Tank

4.8 gal (US) 18 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"4.8","MetricUnit":"l","MetricValue":"18","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"7"}
Hydraulic System

9.2 gal (US) 35 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9.2","MetricUnit":"l","MetricValue":"35","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"8"}

Sound

Operator Sound Pressure (ISO 6396:2008)

78 dB(A) 78 dB(A)
{"Name":"Operator Sound Pressure (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"78","MetricUnit":"dB(A)","MetricValue":"78","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"4"}
Average Exterior Sound Pressure (ISO 6395:2008)

94 dB(A) 94 dB(A)
{"Name":"Average Exterior Sound Pressure (ISO 6395:2008)","SpecificationId":null,"TextValue":"*Overall Shipping Length depends on blade position during shipment.","EnglishUnit":"dB(A)","EnglishValue":"94","MetricUnit":"dB(A)","MetricValue":"94","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"5"}
Note

European Union Directive “2000/14/EC”
{"Name":"Note","SpecificationId":null,"TextValue":"European Union Directive “2000/14/EC”","EnglishUnit":"hp","EnglishValue":"24.7","MetricUnit":"kW","MetricValue":"18.4","Type":"text","SpecificationGroup":"Sound","SortOrder":"6"}

Sustainability

Recyclability

95%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"95%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"4"}

Swing System

Machine Swing Speed

9 r/min 9 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"9","MetricUnit":"r/min","MetricValue":"9","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"4"}
Boom Swing - Left

75 ° 75 °
{"Name":"Boom Swing - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"75","MetricUnit":"°","MetricValue":"75","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"5"}
Boom Swing - Right

50 ° 50 °
{"Name":"Boom Swing - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"50","MetricUnit":"°","MetricValue":"50","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"6"}

Travel System

Travel Speed - High

2.8 mile/h 4.5 km/h
{"Name":"Travel Speed - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"2.8","MetricUnit":"km/h","MetricValue":"4.5","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"4"}
Travel Speed - Low

1.6 mile/h 2.6 km/h
{"Name":"Travel Speed - Low","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.6","MetricUnit":"km/h","MetricValue":"2.6","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"5"}
Maximum Traction Force - High Speed

3305 lbf 14.7 kN
{"Name":"Maximum Traction Force - High Speed","SpecificationId":null,"TextValue":"*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.","EnglishUnit":"lbf","EnglishValue":"3305","MetricUnit":"kN","MetricValue":"14.7","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"6"}
Maximum Traction Force - Low Speed

7059 lbf 31.4 kN
{"Name":"Maximum Traction Force - Low Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"7059","MetricUnit":"kN","MetricValue":"31.4","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"7"}
Ground Pressure - Minimum Weight

4 psi 27.6 kPa
{"Name":"Ground Pressure - Minimum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4","MetricUnit":"kPa","MetricValue":"27.6","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"8"}
Ground Pressure - Maximum Weight

4.7 psi 32.3 kPa
{"Name":"Ground Pressure - Maximum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4.7","MetricUnit":"kPa","MetricValue":"32.3","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"9"}
Gradeability - Maximum

30 degrees
{"Name":"Gradeability - Maximum","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":"in","EnglishValue":"34.3","MetricUnit":"mm","MetricValue":"870","Type":"text","SpecificationGroup":"Travel System","SortOrder":"10"}

Weight Increase from Minimum Configuration

Cab

254 lb 115 kg
{"Name":"Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"254","MetricUnit":"kg","MetricValue":"115","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"4"}
Counterweight

221 lb 100 kg
{"Name":"Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"221","MetricUnit":"kg","MetricValue":"100","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"5"}
Extra Counterweight

551 lb 250 kg
{"Name":"Extra Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"551","MetricUnit":"kg","MetricValue":"250","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"6"}
Long Stick

55 lb 25 kg
{"Name":"Long Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"55","MetricUnit":"kg","MetricValue":"25","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"7"}
Steel Tracks

276 lb 125 kg
{"Name":"Steel Tracks","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"276","MetricUnit":"kg","MetricValue":"125","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"8"}

Weights

Operating Weight

7817 lb 3545 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7817","MetricUnit":"kg","MetricValue":"3545","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Minimum Operating Weight with Canopy*

6670 lb 3025 kg
{"Name":"Minimum Operating Weight with Canopy*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6670","MetricUnit":"kg","MetricValue":"3025","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"4"}
Maximum Operating Weight with Canopy**

7552 lb 3425 kg
{"Name":"Maximum Operating Weight with Canopy**","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":"lb","EnglishValue":"7552","MetricUnit":"kg","MetricValue":"3425","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"5"}
Minimum Operating Weight with Cab*

6924 lb 3140 kg
{"Name":"Minimum Operating Weight with Cab*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6924","MetricUnit":"kg","MetricValue":"3140","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"6"}
Maximum Operating Weight with Cab**

7817 lb 3545 kg
{"Name":"Maximum Operating Weight with Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7817","MetricUnit":"kg","MetricValue":"3545","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"7"}
EU: CE Plate Weight with Canopy***

6791 lb 3080 kg
{"Name":"EU: CE Plate Weight with Canopy***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6791","MetricUnit":"kg","MetricValue":"3080","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"8"}
EU: CE Plate Weight with Cab***

7012 lb 3180 kg
{"Name":"EU: CE Plate Weight with Cab***","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7012","MetricUnit":"kg","MetricValue":"3180","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"9"}
Note (1)

*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, no bucket and extra counterweight.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, no bucket and extra counterweight.","EnglishUnit":"gal (US)","EnglishValue":"1.1","MetricUnit":"l","MetricValue":"4","Type":"text","SpecificationGroup":"Weights","SortOrder":"10"}
Note (2)

**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, no bucket and extra counterweight.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, no bucket and extra counterweight.","EnglishUnit":"in","EnglishValue":"35","MetricUnit":"mm","MetricValue":"890","Type":"text","SpecificationGroup":"Weights","SortOrder":"11"}
Note (3)

***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.","EnglishUnit":"in","EnglishValue":"177.6","MetricUnit":"mm","MetricValue":"4510","Type":"text","SpecificationGroup":"Weights","SortOrder":"12"}

Benefits

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab or canopy lets you reach additional service areas when needed.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Equipment Info
