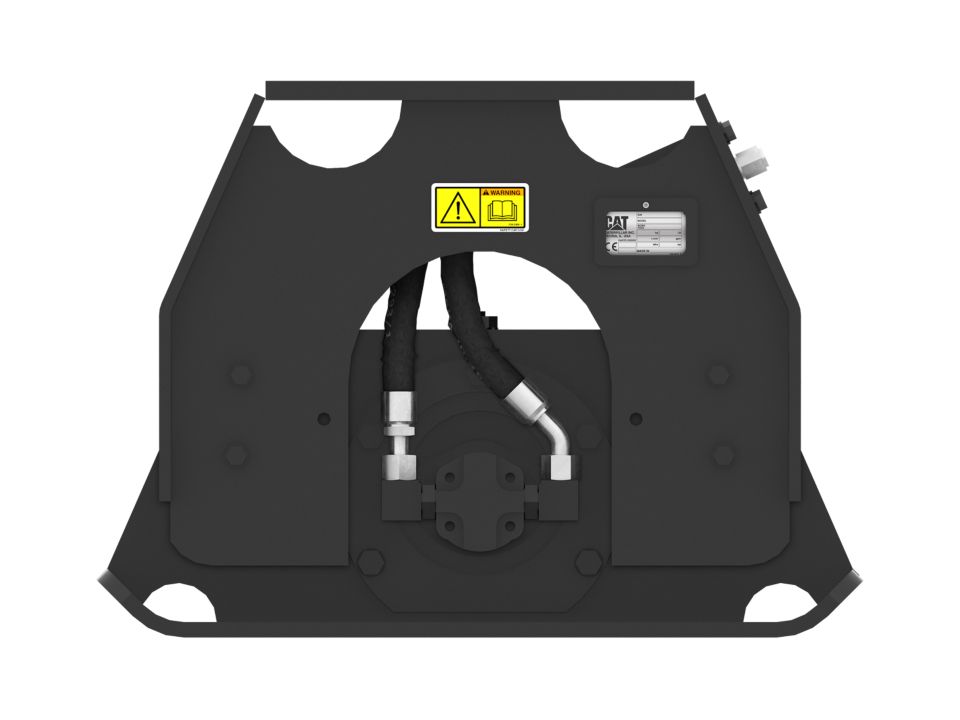

CVP16
Cat® Vibratory Plate Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
CVP16
Cat® Vibratory Plate Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
Product Brochures
Specifications
-
Impulse Force3641.91 lb 16.2 kN
-
Impact Frequency2200 bpm
-
Base Plate Width12 in 305 mm
-
Compaction Area2 ft² 0.19 m²
-
Base Plate Pressure12.8 psi 88 kPa
-
Base Plate Length24 in 610 mm
-
Optimal Hydraulic Flow10 gpm 38 L/min
-
Minimum Operating Pressure1599.8 psi 11030 kPa
-
Weight476.2 lb 216 kg
Benefits
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Performance-Matched
Cat® Compactors are performance-matched to Cat machines and integrate closely with the Cat Hammer line. Brackets and hydraulic kits are interchangeable between hammers and compactors. Compactors can be used with Pin Grabber Couplers, Dedicated Hydraulic Couplers or Pin Lock Couplers.
Protected Hydraulics
Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way — even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug and can be changed while the compactor is installed.
Optional Backfill Blade
An optional bolt-on backfill blade can be mounted on both front and back of the compactor.
