BU115

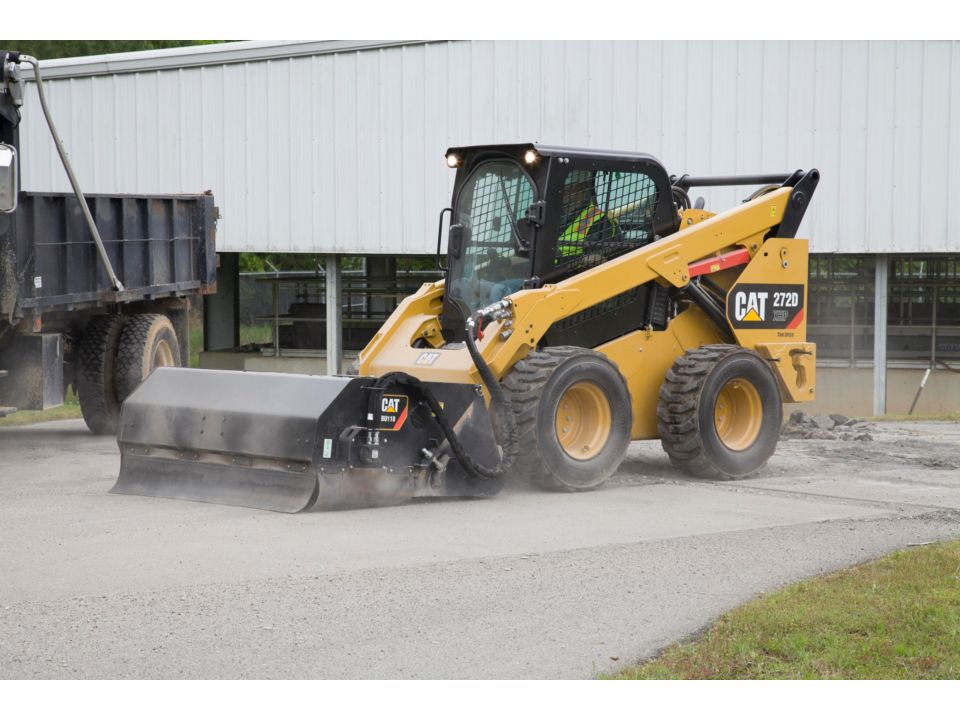

Cat® Utility Brooms sweep and collect debris on smooth surfaces in forward or reverse travel. The Utility Broom is recommended for spoil removal during cold planing applications. The Utility Broom can be adjusted for greater bristle down-force in tough applications such as sweeping course material out of a cold planer cut.
BU115
Cat® Utility Brooms sweep and collect debris on smooth surfaces in forward or reverse travel. The Utility Broom is recommended for spoil removal during cold planing applications. The Utility Broom can be adjusted for greater bristle down-force in tough applications such as sweeping course material out of a cold planer cut.
Product Brochures
Specifications
-
Overall Width71.3 in 1810 mm
-
Sweeping Width59.4 in 1510 mm
-
Brush Diameter26 in 660 mm
-
Required HydraulicsStandard Flow
-
Height31.2 in 793 mm
-
Length58.7 in 1490 mm
-
Weight948 lb 430 kg
-
Optimal Hydraulic Flow30-83 L/min (8-22 gpm)
-
Optimal Hydraulic Pressure145-227 bar (2100-3300 psi)
-
Motor Displacement24 in³/rev 393 cm³/rev
-
Brush Speed at Maximum Flow190 rpm
-
Drive MethodDirect Drive
Benefits
Application
Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.
Bi-Directional Sweeping
Utility Brooms have the ability to sweep and collect light debris on smooth surfaces in both forward or reverse.
Large Hopper Capacity
Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening with bolt-on, replaceable cutting edge permits fast, efficient dumping.
Rubber Boots
Rubber boots on front and sides of broom aid in containing debris and airborne contaminants during sweeping.
Optional Dust Control
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.
Broom Material Options
Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.
