1000 mm (39 in), 56 L (2 ft3), Pin On, 30 mm (1.2 in)

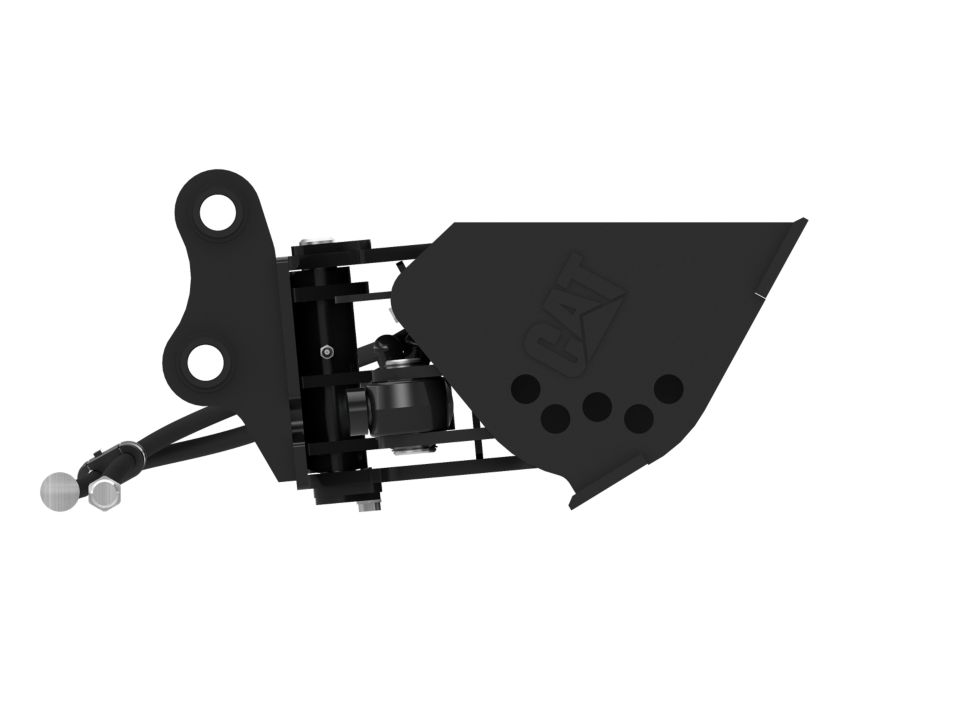

Tilting Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
1000 mm (39 in), 56 L (2 ft3), Pin On, 30 mm (1.2 in)
Tilting Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
Product Brochures
Specifications
-
Width39.4 in 1000 mm
-
Capacity2 ft³ 56 l
-
Weight114.6 lb 52 kg
-
Base Edge Thickness0.4 in 10 mm
-
Tip Radius19.5 in 496 mm
-
Interface TypePin On (Pin Grabber)
Benefits
Application
Ideal for cleaning wide trenches, loading materials, slope-cutting and profiling, grading and finishing work in construction, landscaping and road maintenance applications.
Drain Holes
Standard drain holes allow water drainage from the bucket when working in mucky, wet conditions.
Spill Guard
Spill guards help prevent material from flowing over bucket into cylinder and causing damage.
Bucket Support Ribs
Two bucket stiffeners from top torque tube to base edge provides additional support during backwards grading, as well as overall bucket longevity.
Integrated Rear Cutting Edge
Rear cutting edge allows for back dragging applications.
