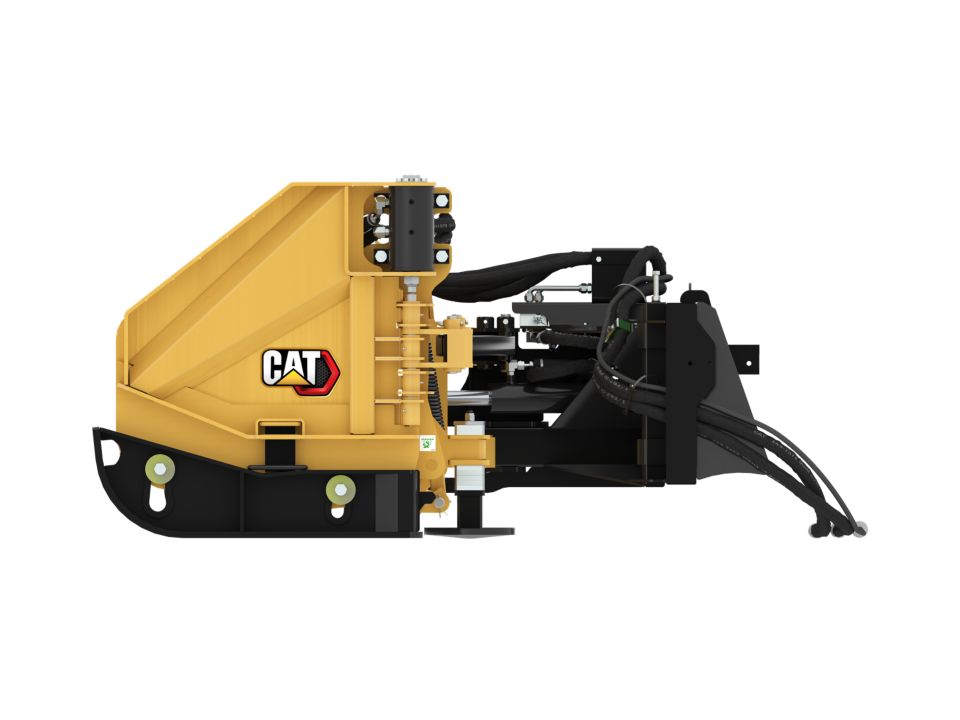

2.8 m (9 ft), Skid Steer Coupler
Cat® Snow Wings are designed with versatility in mind. With independently controlled wings and angling capability, the attachment can be configured to suit the needs of any job and continue to adapt to ever changing needs by being able to hydraulically configure for plowing, pushing, and backdraging to enable cleaning and maintaining roadways, sidewalks and other passages for safe passage in winter conditions.
2.8 m (9 ft), Skid Steer Coupler
Cat® Snow Wings are designed with versatility in mind. With independently controlled wings and angling capability, the attachment can be configured to suit the needs of any job and continue to adapt to ever changing needs by being able to hydraulically configure for plowing, pushing, and backdraging to enable cleaning and maintaining roadways, sidewalks and other passages for safe passage in winter conditions.
Product Brochures
Specifications
-
Working Width (Wings Closed)108.5 in 2756 mm
-
Overall Width (Wings Closed)116.2 in 2951 mm
-
Overall Width (Wings Open)173.7 in 4411 mm
-
Working Width (Wings Open)173.7 in 4411 mm
-
Weight1951.1 lb 885 kg
-
Length67.1 in 1705 mm
-
Overall Height36 in 915 mm
-
Hydraulic Angling - Left/Right of Center±35 Degrees
-
Float±5 Degrees
-
Wing Rotation180 Degrees
-
Optimal Hydraulic Flow76-87 L/min (20-23 gpm)
-
Optimal Hydraulic Pressure200-230 bar (2800-3300 psi)
-
Interface TypeSkid Steer Coupler
-
Trip Edge TypeSteel
-
Trip Edge Height5.1 in 130 mm
-
Trip Edge Quantity1
-
Required HydraulicsStandard Flow w/14 pin Electrical
Benefits
Curved Moldboard
Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.
Adjustable Rear Skid Shoes
Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.
Lateral Float
Lateral float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.
Adjustable Trip Edges
Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the wing and machine.
Bolt-On Serrated Step
Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.
Rotary Actuators
Allows 180 degrees of rotation for each wing for maximum versatility. Both wings are independently controlled. The use of actuators rather than cylinders also keeps the components better protected from damage.
Wing Stops
Stops on the attachment keep the wings from contacting the tires or tracks of the machine regardless of plow angle to prevent damage.
Up to 35 Degree Angle
Plow can angle left or right 35 degrees allowing the operator more control over direction of the snow.
Reversible Cutting Edge
Cutting edge is easy to replace, and can be reversed when dull to get another life.
Floating End Plate Edge
Follow surface contour for more consistent snow clearing.
Adjustable Crossover Relief Valve
Crossover relief allows plow to angle if it impacts a solid object. This helps prevent damage to the attachment in extreme conditions.
Tool Mounted OMM Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
