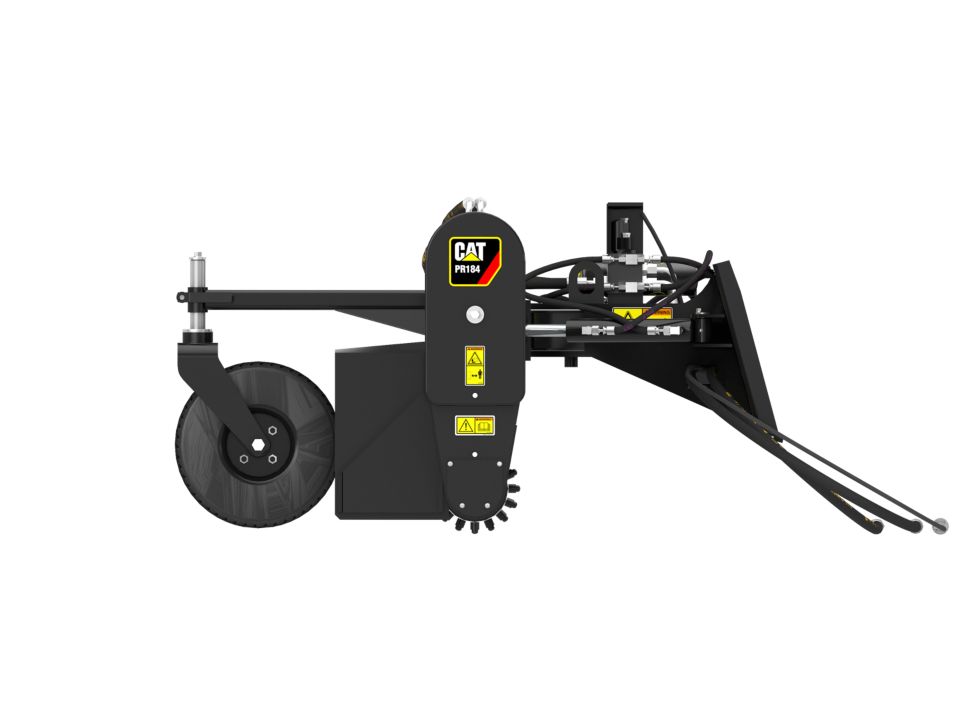

PR184 Hydraulic Angle
Cat® Power Box Rakes are ideal for clearing and preparing soil in general construction trench restoration, golf course construction and athletic field maintenance. They offer the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool. Its angling ability allows the operator to windrow collected debris for easy pickup and removal. The consistent milling action creates an ideal seedbed for excellent germination results, laying the groundwork for a perfect lawn. Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.
PR184 Hydraulic Angle
Cat® Power Box Rakes are ideal for clearing and preparing soil in general construction trench restoration, golf course construction and athletic field maintenance. They offer the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool. Its angling ability allows the operator to windrow collected debris for easy pickup and removal. The consistent milling action creates an ideal seedbed for excellent germination results, laying the groundwork for a perfect lawn. Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.
Product Brochures
Specifications
-
Roller Width84 in 2134 mm
-
Overall Width93 in 2362 mm
-
Maximum Angle - Right or Left20 degrees
-
Raking Width at Maximum Angle79 in 2007 mm
-
Overall Length64 in 1626 mm
-
Overall Height33.3 in 847 mm
-
Weight1049.4 lb 476 kg
-
Required HydraulicsStandard Flow
-
Optimal Hydraulic Flow57-86 L/min (15-23 gpm)
-
Optimal Hydraulic Pressure230 bar (3335.9 psi)
Benefits
Application
Offers the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool.
Angling Ability
Angling ability allows the operator to windrow collected debris for easy pickup and removal.
Milling Action
Consistent milling action creates an ideal seedbed for great germination results, laying the groundwork for a perfect lawn.
Manual or Hydraulic Angling
Manual or hydraulic angling up to 20 degrees right or left of center. Hydraulic angling option allows the operator to control the power box rake angle from the operator compartment.
Adjustable Gauge Wheels
Dual independently adjustable gauge wheels allow for skim passes for over-seeding or adjust to cut drainage grades.
Two-Position Winged Endplates
Two-position winged endplates allow close raking to side walks or foundations. They can remain parallel, even during angling, for smoother plowing.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
