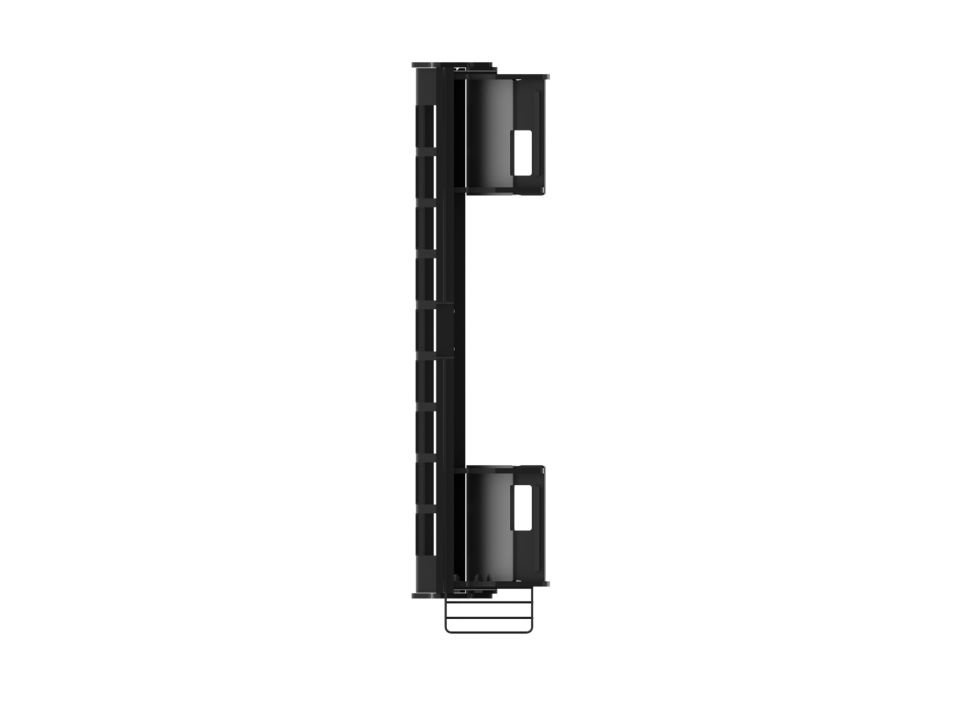

1209 mm (48 in), Skid Steer Coupler, Class III
Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
1209 mm (48 in), Skid Steer Coupler, Class III
Cat® Pallet Fork Carriages for are designed to meet a wide variety of material handling needs. Use carriages with different length fork tines for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Product Brochures
Specifications
-
Height36.4 in 925 mm
-
Width48 in 1209 mm
-
Overall Width51.2 in 1300 mm
-
Weight332.9 lb 151 kg
-
Length12.3 in 312 mm
-
Tine Spacing250-1018 mm (10-40 in) centerline to centerline
-
Interface TypeSkid Steer Coupler
Benefits
Full Backrest
The large backrest structure is functional, durable, and easy to see through.
Fork Positioning
Provides for multiple positions to secure fork tine, allowing several different configurations for your specific needs.
Serrated Step
Serrated step provides safe access in and out of cab for operator's safety.
