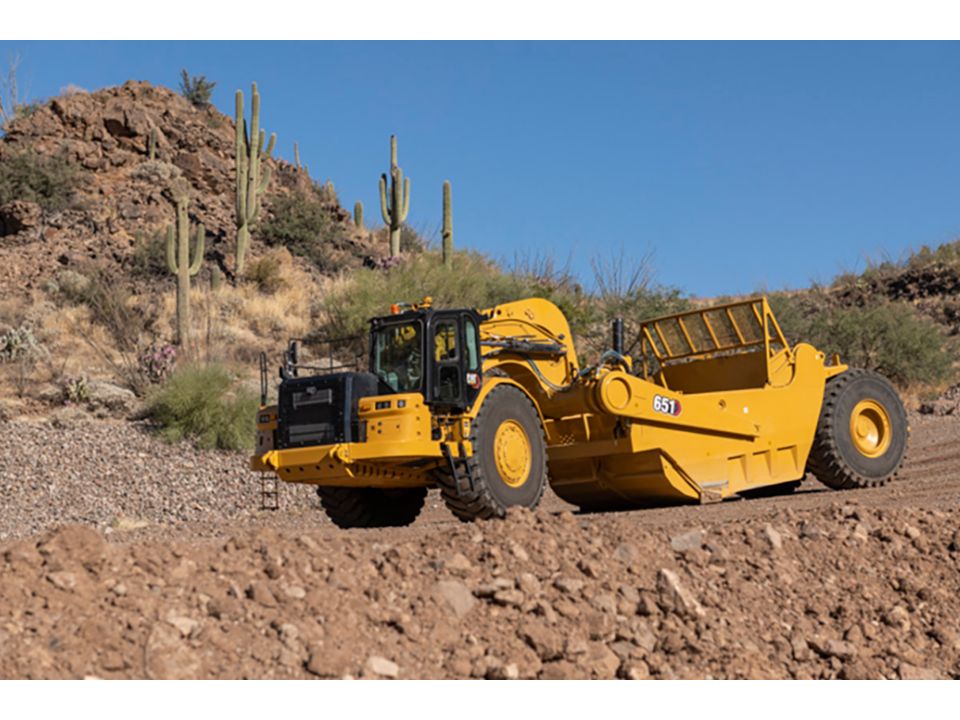

651 | Toromont Cat

Request a Quote (416) 667-5511

Product Brochures

Product Brochure #1

Product Brochure #2

Specifications

Dimensions

Width - Overall Machine

14.3 ft 4.36 m
Width - Tractor

11.87 ft 3.62 m
Width - Rear Tire Center Lines

9.21 ft 2.81 m
Width - Inside of Bowl

12.07 ft 3.68 m
Width - Outside Bowl - Shipping Width

12.98 ft 3.91 m
Height - Overall Shipping

15.29 ft 4.42 m
Height - Top of Cab

12.77 ft 3.89 m
Ground Clearance - Tractor

2.3 ft 0.7 m
Front of Tractor to Front Axle

14.93 ft 3.88 m
Axle to Vertical Hitch Pin

1.8 ft 0.55 m
Height - Scraper Blade Maximum

2.17 ft 0.66 m
Wheel Base

32.68 ft 9.96 m
Length - Overall Machine

58.96 ft 17.97 m
Rear Axle - Rear of Machine

8.07 ft 2.46 m

Engine

Tractor Engine

Cat® C18

Hydraulics

Bowl Cylinder Bore

7.08 in 180 mm
Bowl Cylinder Stroke

37.4 in 950 mm
Apron Cylinder Bore

7.08 in 180 mm
Apron Cylinder Stroke

29.92 in 759.5 mm
Steering Circuit (@ High Idle)

76.08 gpm 288 L/min
Cushion Hitch Circuit

19.54 gpm 74 L/min
Secondary Steering Circuit

14.52 gal/hr 55 l/hr
Relief Valve - Steering Circuit

1959 psi 13500 kPa
Relief Valve - Implement Circuit

1999 psi 13780 kPa
Compensator Settings - Cushion Hitch Circuit

3002 psi 20700 kPa

Scraper Bowl

Scraper Capacity - Heaped

44 yd³ 33.6 m³
Rated Load

104000 lb 47174 kg
Capacity - Struck

32 yd³ 24.5 m³
Depth of Cut - Maximum

17.3 in 417 mm
Width - Cut - To Router Bits

12.5 ft 3.8 m
Ground Clearance - Maximum

2.3 ft 0.7 m
Depth of Spread - Maximum

26 in 660 mm
Apron Opening

92 in 2337 mm
Apron Closure Force

39200 lb 176 kN
Hyd. Penetration Force - 657G

121000 lb 542 kN

Service Refill Capacities - Scraper

Crankcase

8.9 gal (US) 34 l
Transmission

31.9 gal (US) 121 l
Cooling System

16.6 gal (US) 63.2 l
Final Drive - Each

7.8 gal (US) 30 l
Fuel Tank

430 gal (US) 1628 l
Differential

44 gal (US) 168 l

Service Refill Capacities - Tractor

Crankcase

13.7 gal (US) 52 l
Transmission

35.9 gal (US) 136 l
Differential

36 gal (US) 136 l
Final Drive - Each

6.3 gal (US) 24 l
Cooling System

23.4 gal (US) 88.6 l
Hydraulic Reservoir

39.6 gal (US) 150 l
Windshield Washer

0.5 gal (US) 5 l

Steering

Width - 180° Turn - Right

44.6 ft 13.6 m
Width - 180° Turn - Left

47.57 ft 14.5 m
Steering Angle - Right

90
Steering Angle - Left

85

Tractor Engine

Flywheel Power - Tractor/Scraper

469kW (629 hp)
Bore

5.7 in 145 mm
Stroke

7.2 in 183 mm
Displacement

1105 in³ 18.1 l
Net Power (SAE J1349/ISO 9249)

592 hp 436 kW
Gross Power (SAE J1995)

637 hp 475 kW
Net Power (ISO 14396)

585 hp 436 kW
Net Power

469 kW/629 hp (ISO 14369:2002)

Transmission

Top Speed - Loaded

34.9 mile/h 56.1 km/h
1 Forward

3.5 mile/h 5.7 km/h
2 Forward

6.5 mile/h 10.5 km/h
3 Forward

7.8 mile/h 12.5 km/h
4 Forward

10.6 mile/h 17 km/h
5 Forward

14.2 mile/h 22.8 km/h
6 Forward

19.2 mile/h 30.9 km/h
7 Forward

25.7 mile/h 41.4 km/h
8 Forward

34.9 mile/h 56.1 km/h
Reverse

6.7 mile/h 10.8 km/h

Weights - Push-Pull

Total Shipping

160505 lb 72804 kg
Tractor Shipping

93635 lb 42472 kg
Scraper Shipping

64068 lb 29061 kg
Total Operating - Empty

164244 lb 74500 kg
Front Axle

93842 lb 42566 kg
Rear Axle

66663 lb 30238 kg
Total Operating - Loaded

268302 lb 121700 kg
Front Axle - Loaded

134165 lb 60856 kg
Rear Axle - Loaded

130340 lb 59121 kg

Benefits

BE MORE PRODUCTIVE

The Advanced Productivity Electronic Control System (APECS) enables communication between the engine and transmission to optimize power and torque output effectively. This integration
results in enhanced efficiency with a net result of moving more
material.
Use Ground Speed Control to set the desired top speed, and the machine will find the gear that works best for the engine and the transmission, providing a lower fuel burn.
The machine speed limit feature allows the machine to maintain a
set the top speed instead of relying on top gear selector.
Auto-Stall assists in quickly bringing the transmission to an
operating temperature at start-up when the machine is working in a cold climate region.
Cat Payload for scrapers is an earthmoving solution for optimal payload and jobsite efficiency. Cat Payload achieves on-the-go
    weighing by using bowl lift cylinder pressure during the loaded haul segment. Cat Payload is optimized to be used with Sequence
    Assist, which provides increased productivity with less operator
    effort.

WORK IN COMFORT

Steer with less effort with the newly designed high-pressure steering system.
Reduce up to 14 individual operator commands per cycle with
Sequence Assist.
Enjoy interior improvements and a more ergonomic work environment
.
Intuitive, ergonomic controls with multifunction display keep operators
focused on their work.
Maintain desired cab temperature with automatic temperature control
.

DESIGNED FOR SAFETY

Get in and out of the cab easier with the powered access ladder system.
Enhance the operator’s awareness of site surroundings with the
Work Area Vision System (WAVS).
Convenient ground-level access to fuel fill and several maintenance points for easier
and safer service.
Seat belt indicator provides visual and audible alerts when the seat
belt is not in use.

EASY TO OPERATE

Cat Advanced Ride Management (ARM) seat suspension reduces end stroke movement of the load cylinder for a smoother ride.
Engine overspeed protection will automatically engage with no operator input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.
The spacious cab features easy, intuitive controls and excellent
visibility. The cab provides a comfortable working environment for
all-day operation.

INTEGRATED CAT TECHNOLOGIES

Access information anytime, anywhere with Vision Link™– use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your job site.
Product Link™
collects machine data that can be viewed online through
web and mobile applications (optional attachment).
Hit target grade faster and more accurately with Cat Grade
technologies. Finish jobs in fewer passes and with less operator
effort, saving you time and helping to increase profit.
Monitor, manage, and enhance jobsite operations.
Shorten the learning curve for inexperienced operators with
Sequence Assist.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, backup

OPERATOR ENVIRONMENT

Air Conditioner (includes heater and defroster)

POWER TRAIN

Tractor

OTHER STANDARD EQUIPMENT

Tractor
