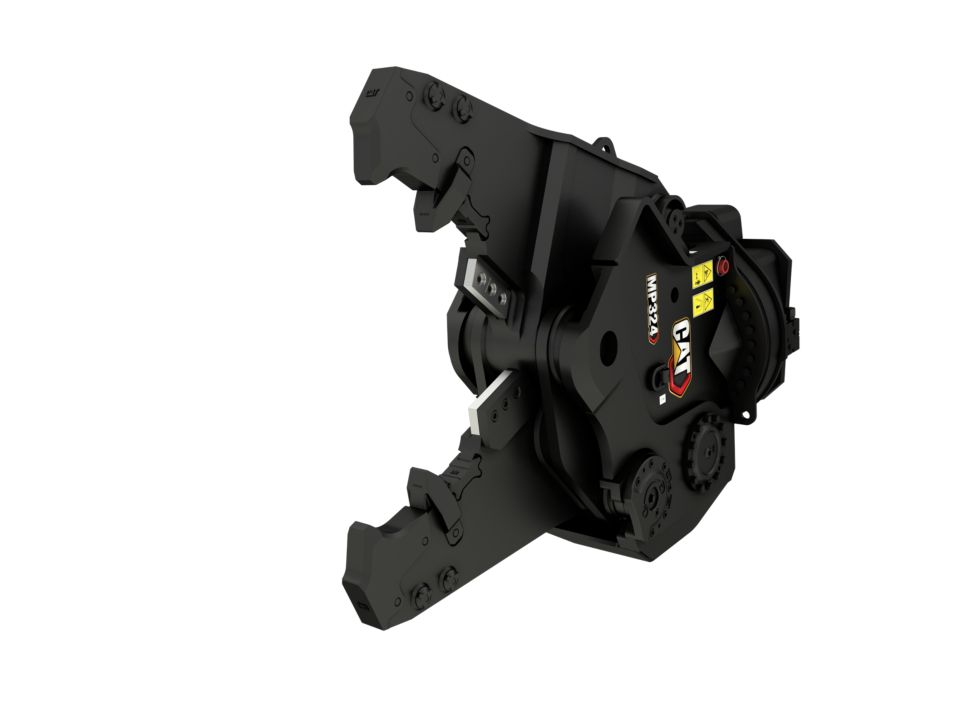

MP324 Demolition Jaw
Demolition jaws are designed to reduce any strength concrete in the largest concrete applications, whether with or without rebar. Concrete is reduced to large, manageable sized pieces while cutting rebar.
MP324 Demolition Jaw
Demolition jaws are designed to reduce any strength concrete in the largest concrete applications, whether with or without rebar. Concrete is reduced to large, manageable sized pieces while cutting rebar.
Specifications
Dimensions - Housing + Jaw
-
Length81.9 in 2079 mm
-
Height62.7 in 1593 mm
-
Width31.2 in 793 mm
Dimensions - Jaw
-
Jaw Depth29.8 in 756 mm
-
Cutter Length7.5 in 191 mm
-
Jaw Opening - Maximum35.6 in 903 mm
-
Jaw Width - Fixed5.2 in 132 mm
-
Jaw Width - Moveable5.2 in 132 mm
Hydraulic Requirements
-
Jaw Circuit - Max. Oil Pressure33000 bar 4786 psi
-
Jaw Circuit - Max. Oil Flow59.4 gpm 225 L/min
-
Rotation Circuit - Max. Oil Pressure14000 bar 2031 psi
-
Rotation Circuit - Max. Oil Flow40 L/min 10.6 gpm
Performance
-
Cycle Time - Open1.8 s 1.8 s
-
Cycle Time - Close1.2 s 1.2 s
-
Crushing Force - Primary Cutter423.4 Sh Ton 3767 kN
-
Crushing Force - Cutter Tip371.8 Sh Ton 3308 kN
-
Crushing Force - Tooth Tip112.6 Sh Ton 1002 kN
Recommended Carrier Weight
-
Excavator Minimum24 tons
-
Excavator Maximum35 tons
Benefits
Cycle Times are 50 Percent Faster
- New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
- You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
- Maximum crushing/cutting force is applied as soon as the jaw contacts material.
Up to 19 Percent More Force
- Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
- Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
- Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.
Change Jaws in 15 minutes
- Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
- Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.

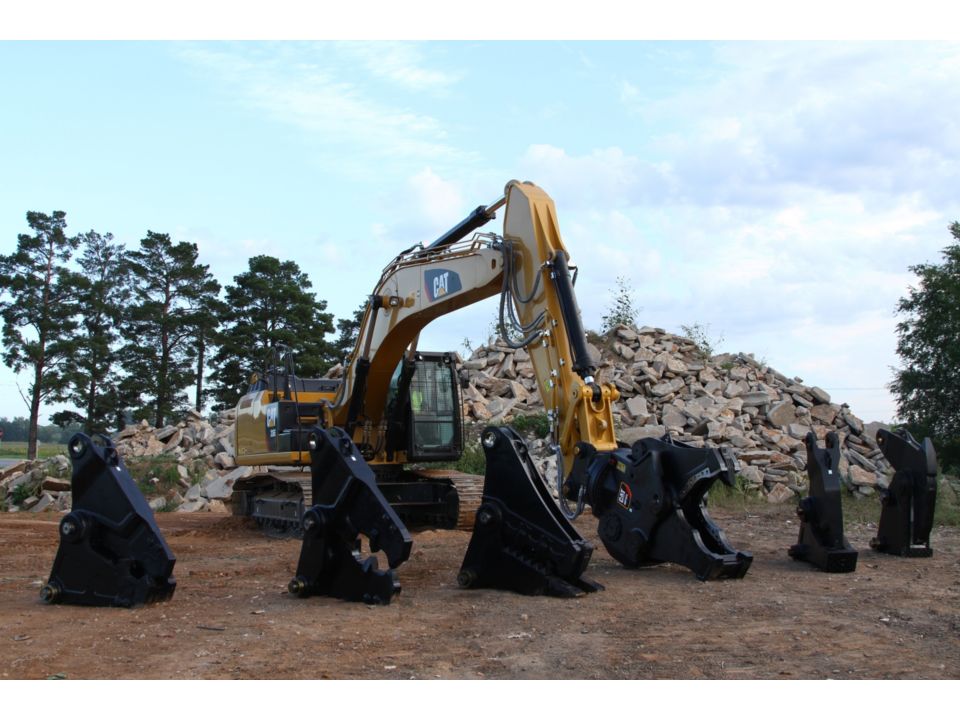

- MP324 accepts these jaw types:
- Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition – opens wide to crack the largest concrete structures
- Pulverizer – crushes concrete, separating the rebar
- Secondary Pulverizer – crushes concrete into finer particles; total rebar separation
- Shear – cuts structural steel, pipe, and cable
- Tank Shear – cuts at right angle on three sides, cleanly cutting tanks or plate steel
- Universal – innovative design cuts steel and crushes concrete
Durable and Maintainable
- Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
- Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
- Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.
