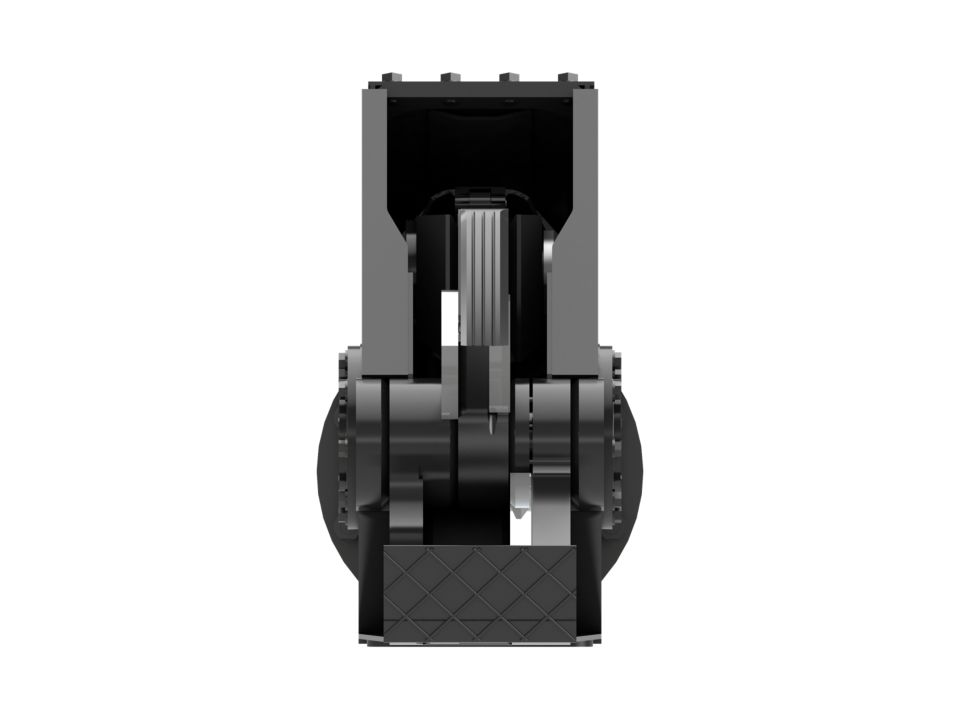

S305
Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.
S305
Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.
Product Brochures
Specifications
-
Tip Force43.3 Sh Ton 385 kN
-
Jaw Width - Moving2 in 60 mm
-
Rotation Circuit - Maximum Flow5.3 gpm 20 L/min
-
Cutting Circuit - Maximum Relief Pressure3625 psi 25000 kPa
-
Height26 in 660 mm
-
Jaw Width - Fixed9 in 230 mm
-
Cutting Circuit - Maximum Flow16 gpm 60 L/min
-
Jaw Depth11 in 290 mm
-
Throat Force203.7 Sh Ton 1812 kN
-
Apex Force73.4 Sh Ton 653 kN
-
Jaw Opening9.4 in 240 mm
-
Rotation Circuit - Maximum Relief Pressure1450 psi 10000 kPa
-
Length67 in 1709 mm
-
Width15 in 390 mm
-
Cycle Time - Close2.5 Seconds
-
Weight1212.5 lb 550 kg
Benefits
Jaw Design
Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.
360° Rotation
Operator can spin the jaws 360 degrees in either direction to quickly position the jaws for a cut.
Reversible Knives
The four main, side and front knives are fully reversible with four effective cutting edges.
Easy Maintenance
Large access panels on the top, bottom, and sides of the shear housing make it easier to service inside components.
Protected Cylinder
Design of the shear housing provides full protection of the cylinder throughout the complete cutting cycle.
Completely Cat®
Only Cat® offers an integrated machine-hydraulics-shear system supported by Cat from front to end, throughout the life of the system.
