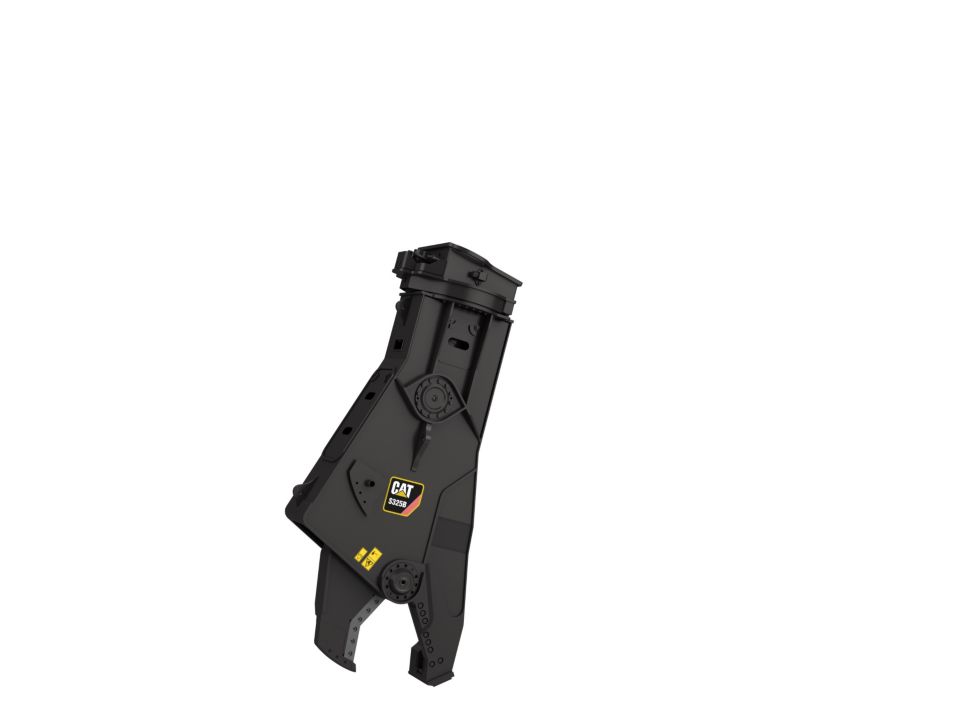

S320B
Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.
S320B
Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.
Product Brochures
Specifications
-
Cutting Circuit - Maximum Relief Pressure5075 psi 35000 kPa
-
Apex Force178 Sh Ton 1583 kN
-
Width31 in 792 mm
-
Tip Force100 Sh Ton 892 kN
-
Cutting Circuit - Maximum Flow40 gpm 150 L/min
-
Jaw Depth18 in 459 mm
-
Jaw Width - Moving3 in 90 mm
-
Throat Force417 Sh Ton 3706 kN
-
Length110 in 2792 mm
-
Weight - Stick Mount4774 lb 2165 kg
-
Weight - Boom Mount5666 lb 2570 kg
-
Jaw Width - Fixed12 in 304 mm
-
Height53 in 1340 mm
-
Jaw Opening16 in 409 mm
-
Rotation Circuit - Maximum Relief Pressure2030 psi 14000 kPa
-
Rotation Circuit - Maximum Flow10.6 gpm 40 L/min
-
Cycle Time - Close3 Seconds
Benefits
Jaw Design
Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.
360-degree Rotation
Operator can spin the jaws 360 degrees in either direction to quickly position the jaws for a cut.
Reversible Knives
The four main, side and front knives are fully reversible with four effective cutting edges.
Easy Maintenance
Large access panels on the top, bottom, and sides of the shear housing make it easier to service inside components.
Protected Cylinder
Design of the shear housing provides full protection of the cylinder throughout the complete cutting cycle.
Completely Cat
Only Caterpillar offers an integrated machine-hydraulics-shear system supported by Caterpillar from front to end, throughout the life of the system.
