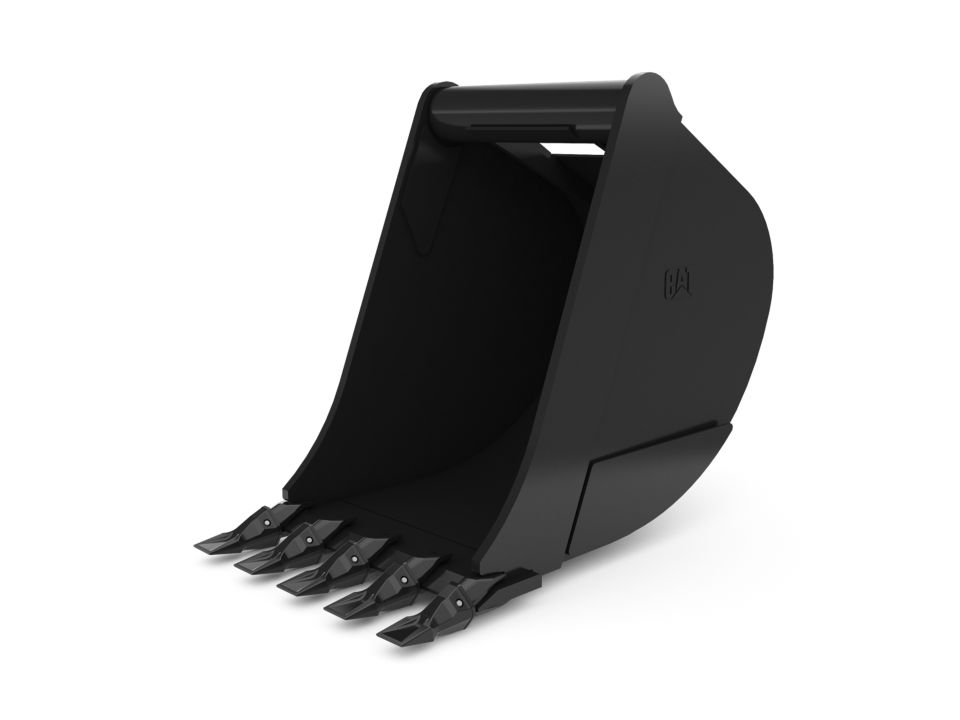

610 mm (24 in), 260 L (9.2 ft3), Pin Lock, Weld-On Adapters

High-Capacity Buckets for Cat® Backhoe Loaders are well suited for work in lower density soils and light materials.

610 mm (24 in), 260 L (9.2 ft3), Pin Lock, Weld-On Adapters

High-Capacity Buckets for Cat® Backhoe Loaders are well suited for work in lower density soils and light materials.

Product Brochures

Specifications
  • Width
    24 in 610 mm
  • Capacity
    9.2 ft³ 260 l
  • Weight
    427.7 lb 194 kg
  • Base Edge Thickness
    1 in 25 mm
  • Tip Radius
    42.7 in 1084 mm
  • Interface Type
    Pin Lock
Benefits

Application

Well suited for work in lower density soils and light materials. Cat® High Capacity Buckets have the same durable characteristics as heavy duty buckets but are capable of moving greater volumes.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat® Buckets are designed for superior productivity, reliability and long life.
