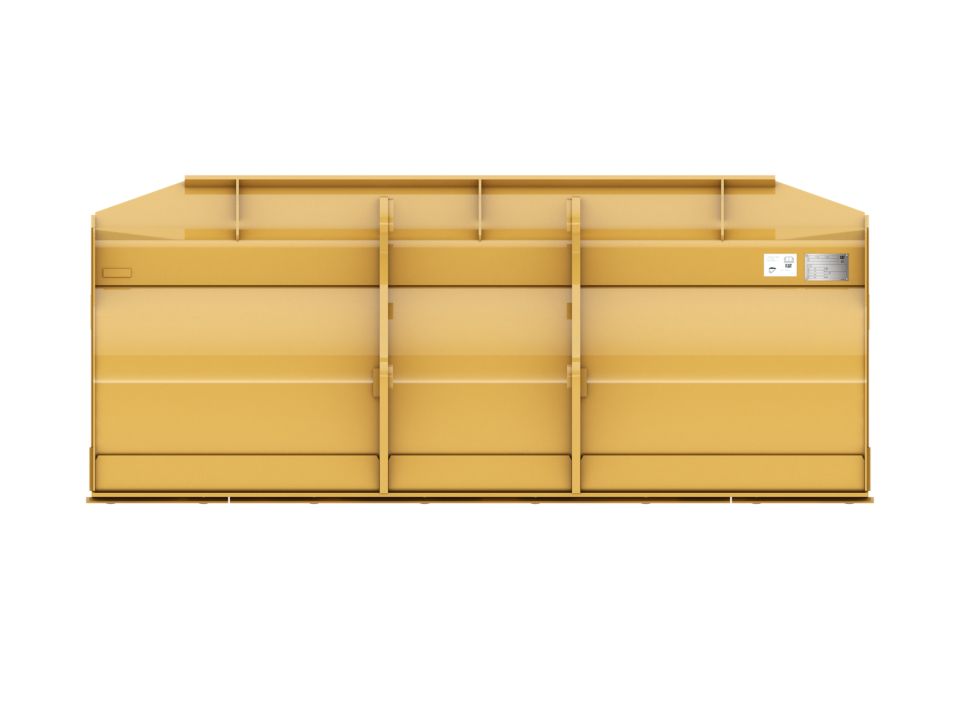

1.4 m3 (1.8 yd3), HPL-V Coupler, Bolt-On Cutting Edge
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
1.4 m3 (1.8 yd3), HPL-V Coupler, Bolt-On Cutting Edge
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
Product Brochures
Specifications
-
Width94.5 in 2401 mm
-
Weight1291 lb 585.6 kg
-
Height39.4 in 1000 mm
-
Length42 in 1068 mm
-
Capacity1.8 yd³ 1.4 m³
-
Base Edge Thickness0.7 in 19 mm
-
Cutting Edge Thickness0.7 in 19 mm
-
Interface TypeHPL-V Coupler
Benefits
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.
Superior Loading
Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.
Rugged Design
Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.
Strong and Durable
Hardened front base edge and side cutters provide excellent penetration, durability and wear life.
Ground Engaging Tool Options
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
