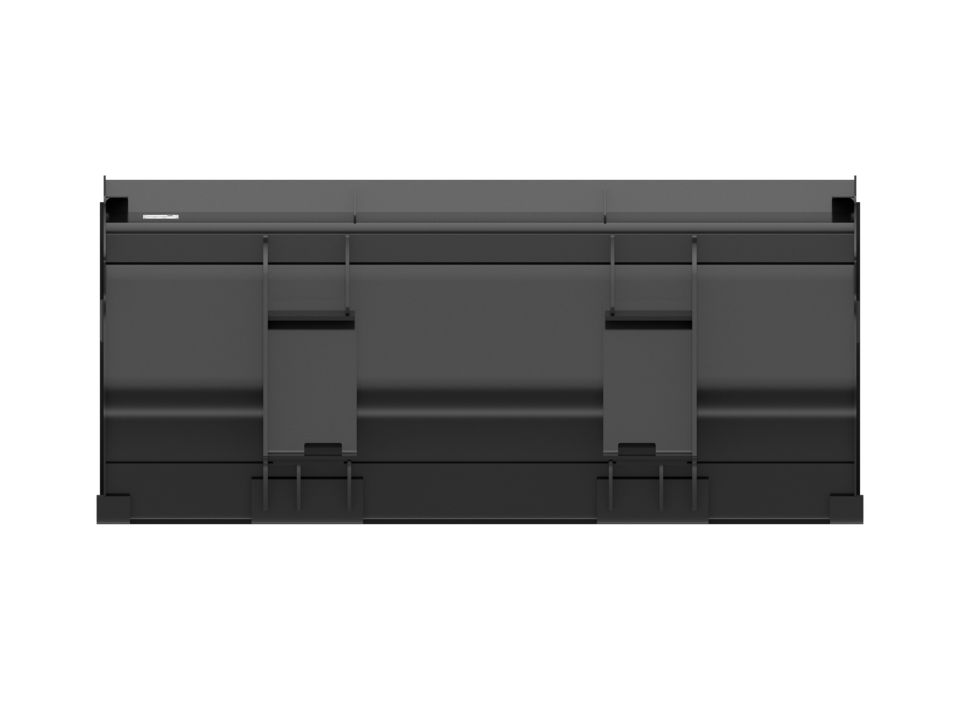

1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
1.1 m3 (1.4 yd3), Skid Steer Coupler, Bolt-On Teeth
Cat® General Purpose Buckets have been designed to optimize performance of the Cat Compact Wheel Loader when loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.
Product Brochures
Specifications
-
Width81.1 in 2060 mm
-
Weight924 lb 419.1 kg
-
Height36.9 in 937 mm
-
Length41.3 in 1050 mm
-
Capacity1.4 yd³ 1.1 m³
-
Base Edge Thickness0.8 in 20 mm
-
Interface TypeSkid Steer Coupler
Benefits
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.
Superior Loading
Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.
Rugged Design
Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.
Strong and Durable
Hardened front base edge and side cutters provide excellent penetration, durability and wear life.
Ground Engaging Tool Options
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
