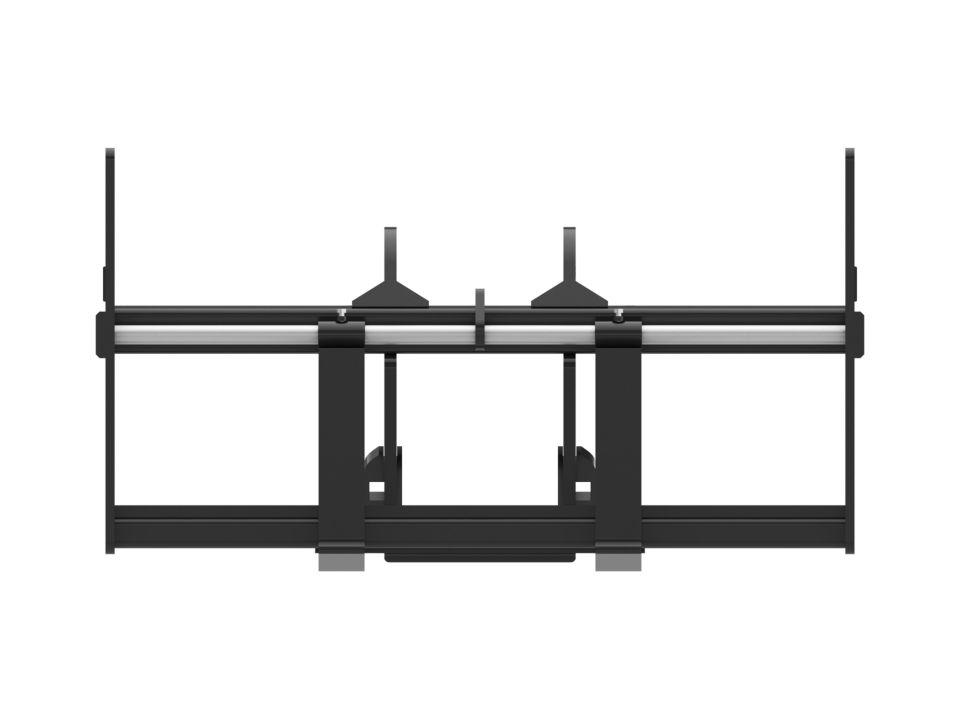

Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
1524 mm (60 in)
Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
Product Brochures
Specifications
-
Height54.1 in 1375 mm
-
Width96.1 in 2440 mm
-
Weight1206.4 lb 547.2 kg
-
Tine Length60 in 1524 mm
-
Tine Width5.9 in 150 mm
-
Tine Height30.2 in 768 mm
-
Tine Thickness2.8 in 70 mm
-
Tine Weight437.4 lb 198.4 kg
-
Combined Weight2081.2 lb 944 kg
-
Overall Length85.4 in 2168 mm
-
Interface TypeFusion™ Coupler
Benefits
Application
Construction Forks are a highly versatile and rugged tool, designed to move bulky palletized material, pipe and pole, liquid containers, and lumber.
High Back Support
Risers on the upper corners of the frame support oversize loads.
User-configurable
Forks can be configured to allow the tines to either swing or stay in a fixed position, using common hand tools.
