2134 mm (84 in)
Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
2134 mm (84 in)
Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
Product Brochures
Specifications
-
Blade Width84 in 2134 mm
-
Width - Fully Angled76.7 in 1949 mm
-
Maximum Blade Angle - Right/Left of Center30 degrees
-
Blade Height24.2 in 614 mm
-
Cutting Edge Width86.5 in 2198 mm
-
Length29.6 in 753 mm
-
Weight729.7 lb 331 kg
-
Cutting Edge Thickness0.6 in 16 mm
-
Optimal Hydraulic Flow42-86 L/min (11-23 gpm)
-
Optimal Hydraulic Pressure145-235 bar (2100-3400 psi)
-
Required HydraulicsStandard Flow
-
Interface TypeSkid Steer Coupler
Benefits
Application
Optional Non-Metallic Blade
Optional bolt-on, non-metallic edge reduces surface scratches or marring of concrete and asphalt surfaces.
Optional Snow Kit
Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware.
Adjustable Interface
Allows for proper ground interface with different hinge pin heights on compact wheel loaders, skid steer and compact track loaders.
Four Pre-loaded Springs
Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.

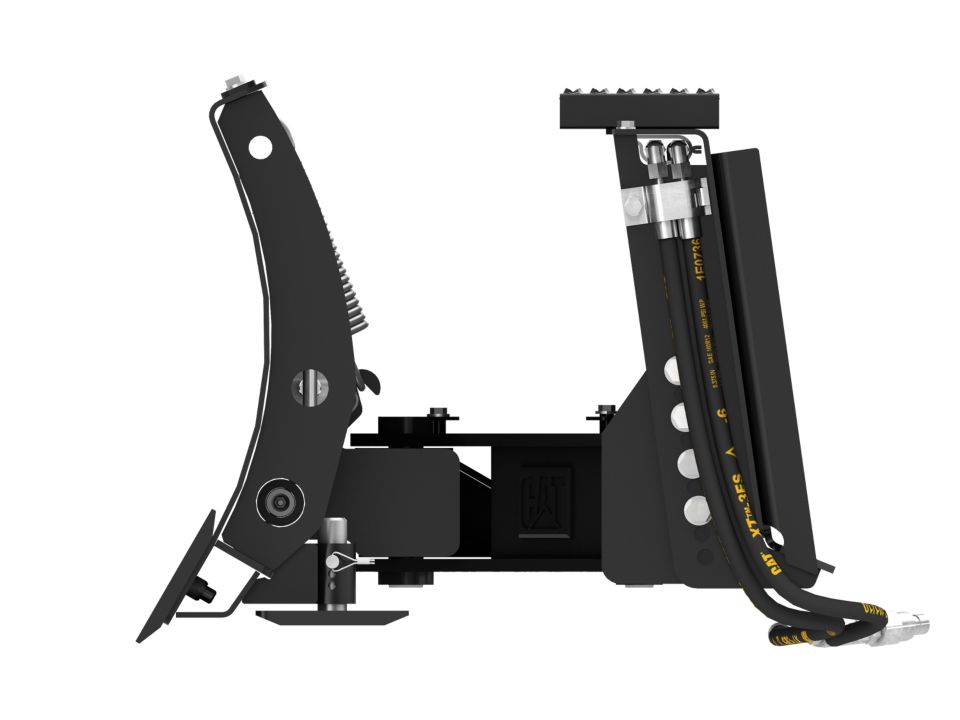

Spherical Rod Eye Cylinder
Spherical rod eye cylinder adds another degree of movement to jointed section for better impact protection.
Adjustable Skid Shoes
Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting-edge depth.

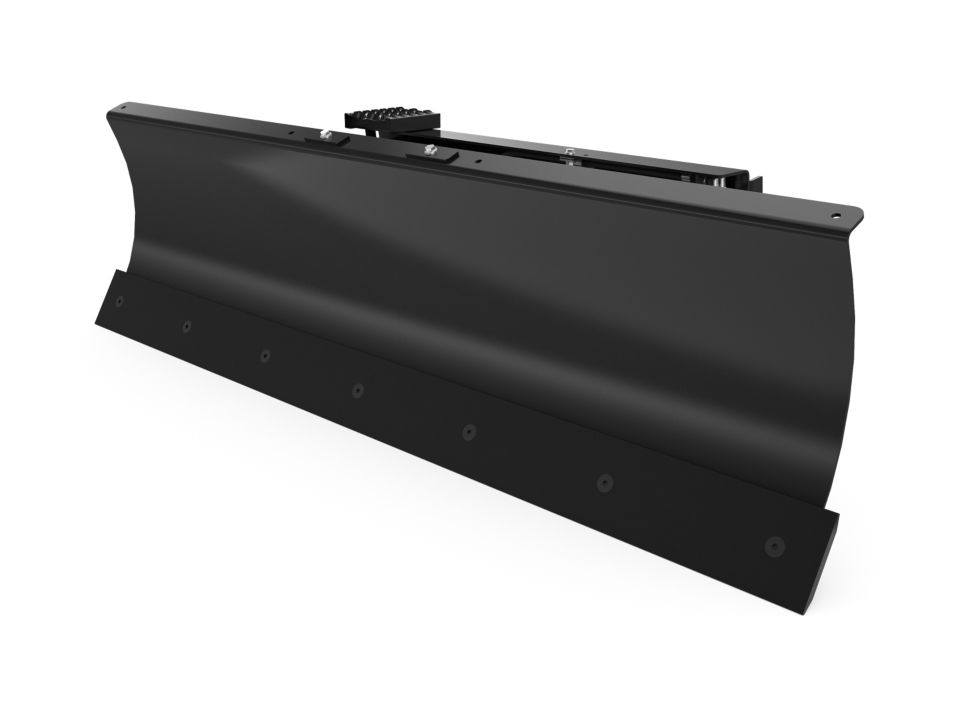

Curved Moldboard
Curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.
Angle Range
Blade angles +/- 30 degrees to assist in various tasks.
Two-Way Blade
Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.
Application
Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.
