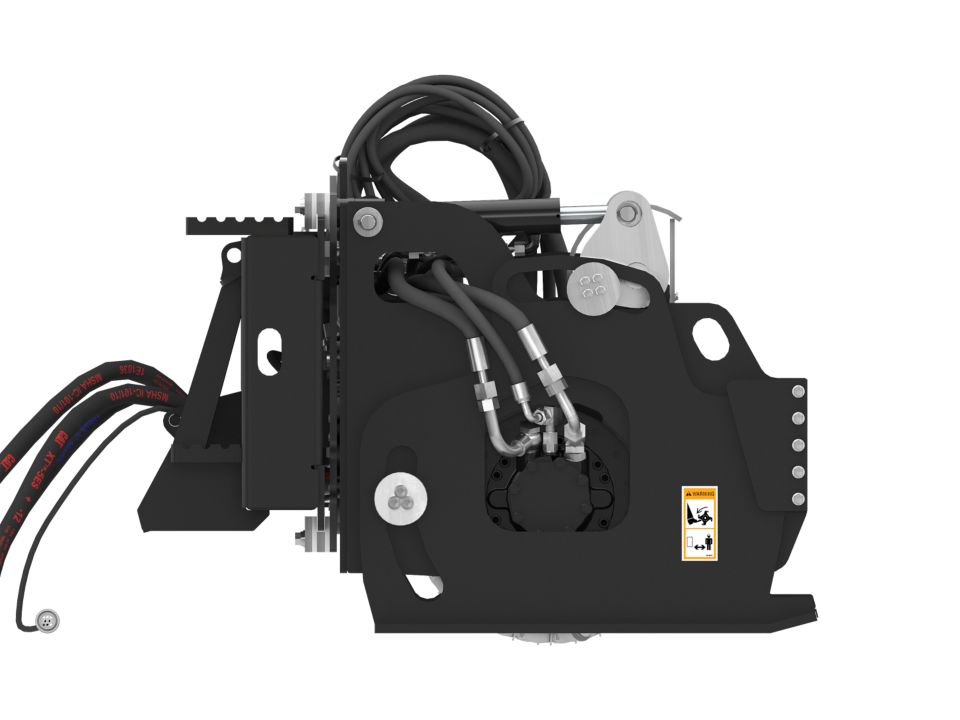

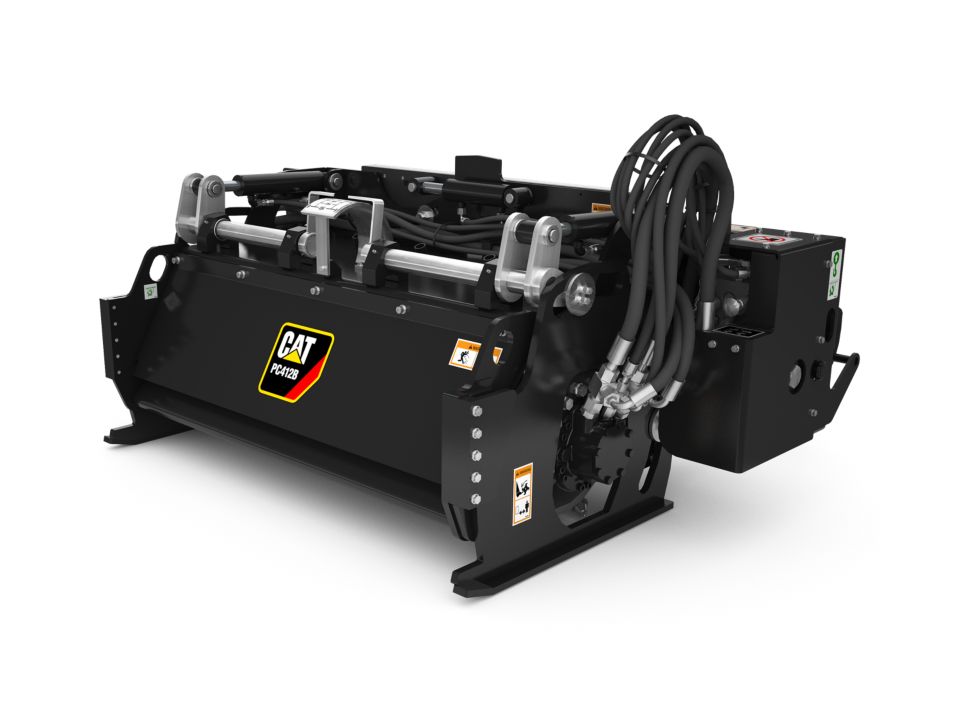

PC412B
Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.
PC412B
Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.
Product Brochures
Specifications
-
Working Width47.2 in 1200 mm
-
Maximum Cutting Depth5.1 in 130 mm
-
Required HydraulicsHigh Flow XHP
-
Overall Width73.1 in 1858 mm
-
Overall Length44.9 in 1140 mm
-
Overall Height38 in 965 mm
-
Weight2579.4 lb 1170 kg
-
Optimal Hydraulic Flow136-150 L/min (36-40 gpm)
-
Optimal Hydraulic Pressure250-280 bar (3630-4000 psi)
-
Drum Speed161 rpm
-
Tilt Angle Range6.5 degrees
-
Side Shift Travel21.7 in 550 mm
-
Conical Bits90
-
Standard Bit TypeAll Purpose
Benefits
Application
Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.
Self-leveling Design
Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.
Two Wear-Resistant Skid Plates
Two wear-resistant skid plates remain parallel to the ground for optimum stability.
Hydraulic Sideshift
Hydraulic sideshift permits close planing to curbs, walls and other obstructions.
Independent Left/Right Depth Control
Independent left/right depth control allows maximum drum depths to be adjusted independently on each skid. Gauges are easily viewable from the cab. Independent depth control is mechanical on the PC104B and PC205B models; hydraulic independent depth control is standard on the PC305B-PC412B models.
Max Pro Pressure Gauge
Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on XHP models.
Direct Drive System
Direct drive system on the standard flow models features a variable speed, uni-directional, gerotor style hydraulic motor. Direct drive system on high flow and XHP models features a hydraulic radial piston motor to ensure maximum cutting rate and drum torque for optimal production performance and efficiency.
Float, Spring Tilt and Hydraulic Tilt
Float enables planers to follow the contour of the surface. Float is activated by a knob and is only available on high flow and XHP planers. Spring tilt and hydraulic tilt enable planers to oscillate for angled cuts. Tilt is hydraulically controlled on high flow models and spring controlled on standard flow planers.
Bits and Water Sprinkler
All Purpose concrete bits are standard. Optional concrete bits, extreme life bits and water sprinkler kits are available for all models.
