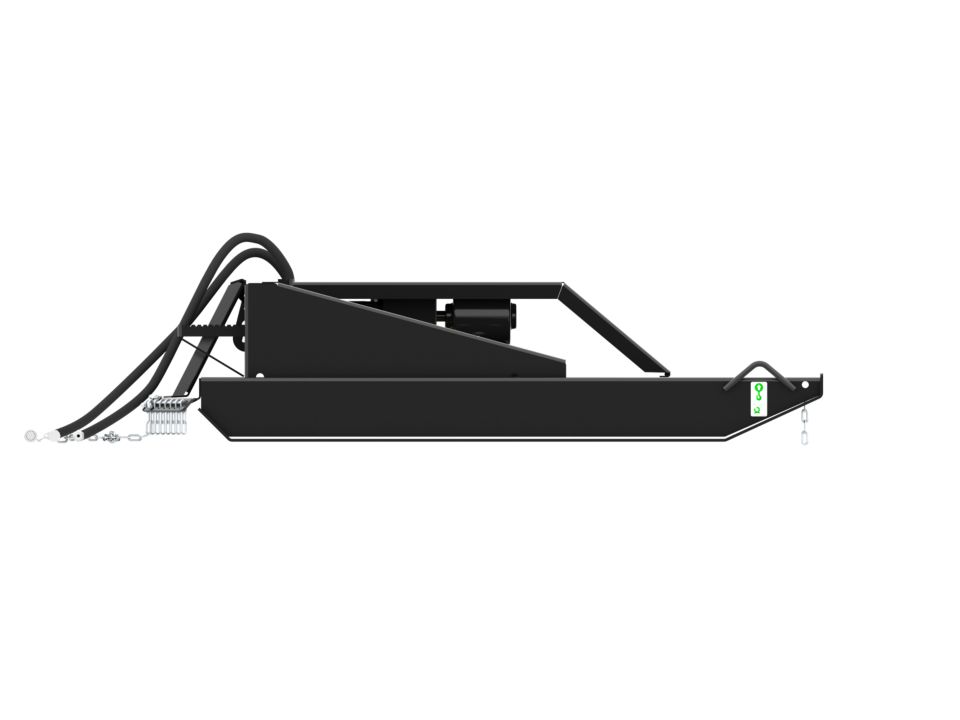

BR218
Cat® Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas. Cat® Industrial Brushcutters are designed for land management, utilities, site prep and maintenance work for brush, small trees, and dense vegetation.
BR218
Cat® Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas. Cat® Industrial Brushcutters are designed for land management, utilities, site prep and maintenance work for brush, small trees, and dense vegetation.
Product Brochures
Specifications
-
Overall Width74 in 1880 mm
-
Cutting Width72 in 1829 mm
-
Maximum Cutting Diameter3 in 76 mm
-
Required HydraulicsHigh Flow
-
Overall Length85 in 2159 mm
-
Overall Height20.4 in 518 mm
-
Weight1119.9 lb 508 kg
-
Optimal Hydraulic Flow76-100 L/min (20-26 gpm)
-
Optimal Hydraulic Pressure150-230 bar (2176-3340 psi)
-
Tip Speed (Depends On Flow)4,554-5,992 mpm (14,940-19,660 fpm)
-
Motor Displacement8.5 in³/rev 140 cm³/rev
-
Drive Shaft Torque217-329 N·m (160-243 lb/ft)
Benefits
Application
Cat® Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.
Blades and Blade Carriers
High strength blades deliver high cutting action, durability and also mulch overgrowth. Fully balanced blade carrier prevents unnecessary vibration. Tapered blade carrier allows cutter to ride up over stumps and rocks.
Long Life Motor and Gears
Long life motor deliver years of high-speed blade performance. Machined and heat-treated gears in sealed gearbox provide reliable, durable transfer of torque from motor to blade carrier.
Motor Protection Guard
Motor protection guard shields motor and gear box from debris. Removing a set of bolts allows this hinged guard to be moved away for easy access to motor and gearbox.
Galvanized Coil Chains
Galvanized coil chains (7.9 mm [5/16 in] proof) provide debris guarding in the front and rear areas to restrict flying debris and material.
Heavy-Duty Skids
Heavy-duty skids allow easy movement of the brushcutter through uneven terrain while maintaining stability of the work tool and machine.
