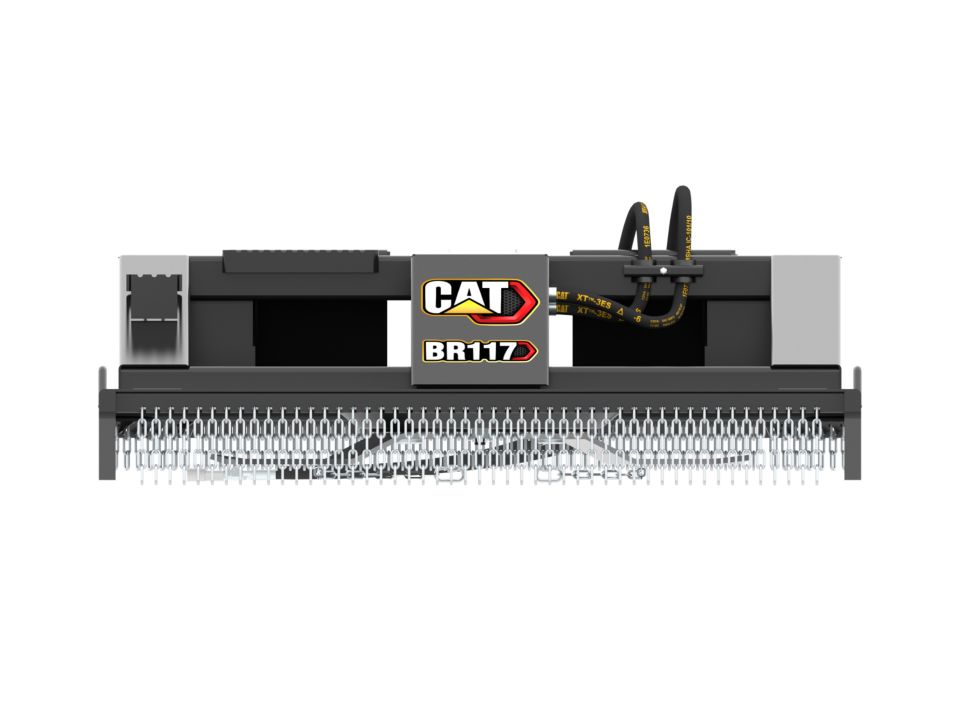

BR117

Request a Quote (416) 667-5511

Product Brochures

Product Brochure #1

Specifications

Overall Width

68 in 1727 mm
Cutting Width

66 in 1676 mm
Maximum Cutting Diameter

3 in 76 mm
Required Hydraulics

Standard Flow
Overall Length

79 in 2007 mm
Overall Height

21 in 533 mm
Weight

1049.4 lb 476 kg
Optimal Hydraulic Flow

57-80 L/min (15-21 gpm)
Optimal Hydraulic Pressure

150-230 bar (2176-3340 psi)
Tip Speed (Depends On Flow)

3,130-4,395 mpm (10,270-14,420 fpm)
Motor Displacement

8.5 in³/rev 140 cm³/rev
Drive Shaft Torque

217-329 N·m (160-243 lb/ft)

Benefits

Application

Cat® Brushcutters are used for clearing overgrowth from highway medians, utility easements and for initial land clearing for housing, parks and recreational areas.

Blades and Blade Carriers

High strength blades deliver high cutting action, durability and also mulch overgrowth. Fully balanced blade carrier prevents unnecessary vibration. Tapered blade carrier allows cutter to ride up over stumps and rocks.

Long Life Motor and Gears

Long life motor deliver years of high-speed blade performance. Machined and heat-treated gears in sealed gearbox provide reliable, durable transfer of torque from motor to blade carrier.

Motor Protection Guard

Motor protection guard shields motor and gear box from debris. Removing a set of bolts allows this hinged guard to be moved away for easy access to motor and gearbox.

Galvanized Coil Chains

Galvanized coil chains (7.9 mm [5/16 in] proof) provide debris guarding in the front and rear areas to restrict flying debris and material.

Heavy-Duty Skids

Heavy-duty skids allow easy movement of the brushcutter through uneven terrain while maintaining stability of the work tool and machine.
