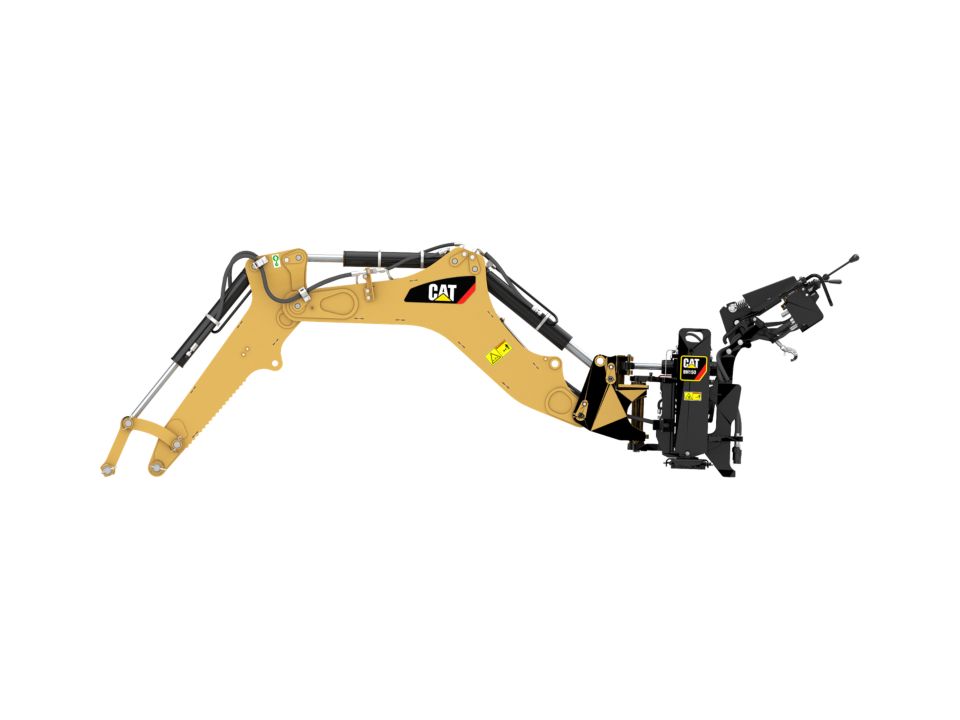

BH150

Cat® Backhoes are used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings. They are ideal for demolishing concrete when paired with Cat H45/H55/H65 hammers.

BH150

Cat® Backhoes are used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings. They are ideal for demolishing concrete when paired with Cat H45/H55/H65 hammers.

Product Brochures

Specifications
  • Maximum Digging Depth
    121 in 3074 mm
  • Operating Weight
    2255.3 lb 1023 kg
  • Overall Length
    109.3 in 2776 mm
  • Stabilizer Spread - Operating Position
    67.6 in 1716 mm
  • Digging Depth at 610 mm (2 ft)
    119.7 in 3040 mm
  • Digging Depth at 4220 mm (8 ft)
    102.1 in 2593 mm
  • Straight Wall Digging Depth
    81.3 in 2064 mm
  • Overall Operating Height
    135.5 in 3442 mm
  • Loading Height
    84.5 in 2147 mm
  • Loading Reach
    64.1 in 1628 mm
  • Reach From Swing Pivot at Ground Line
    155.7 in 3955 mm
  • Swing Arc
    180 degrees
  • Bucket Rotation
    192 degrees
  • Bucket Breakout Force
    7145.2 lb 3241 kg
  • Stick Breakout Force
    3439.2 lb 1560 kg
  • Boom Pivot Height
    16.7 in 425 mm
  • Ground Clearance
    3.4 in 85.69 mm
  • Transport Height
    92 in 2336 mm
  • Transport Width
    79.1 in 2008 mm
  • Required Hydraulics
    Standard Flow
  • Optimal Hydraulic Flow
    42-86 L/min (11-23 gpm)
  • Optimal Hydraulic Pressure
    145-235 bar (2100-3400 psi)
  • Total Side Shift Travel
    32.4 in 822 mm
  • Interface Type
    Skid Steer Coupler
Benefits

Application

Used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings.

"Best in Class" Comfort

Operators can dig, excavate, side-shift, and even re-position the machine and backhoe without ever leaving the seat. Operators can work for extended periods of time, with little fatigue since the cab offers comfort and cover from extreme temperatures or inclement weather conditions.

Manual Sideshift

Sideshift provides the ability to dig close to walls, exposing brick ledges, backfilling and widening trenches.

Productivity and Maneuverability

In-cab operation increases productivity by reducing the amount of time required to reposition compared to traditional skid steer loader backhoes, allowing for faster cycle times than competitive units. The compact package of the machine and backhoe allows the operator to maneuver more easily in confined areas and leaves more trailer space for other Cat Work Tools.

Optional Auxiliary Hydraulic Lines

Optional auxiliary hydraulic lines provide auxiliary flow to the end of the stick to operate Mini Hydraulic Excavator hammers, augers, ditch cleaning buckets, thumbs, and vibratory plate compactors.
