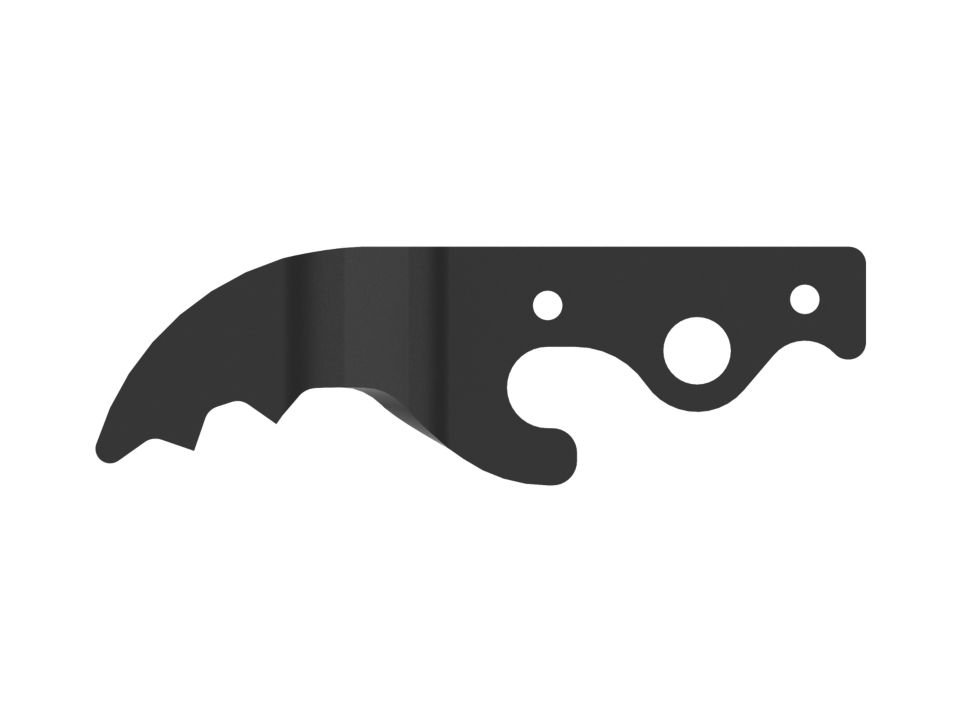

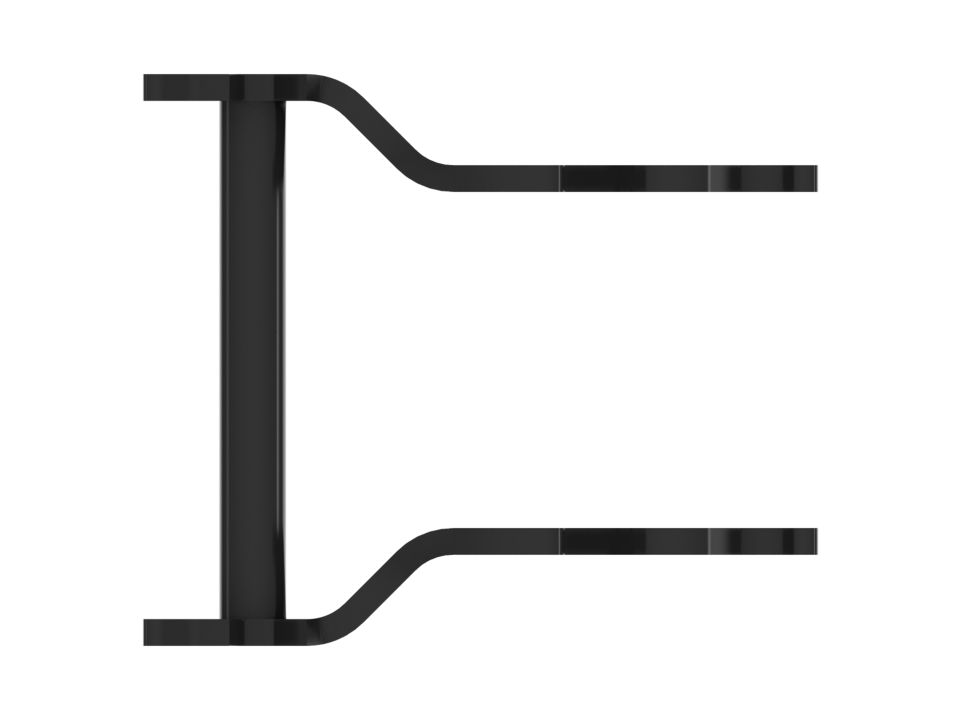

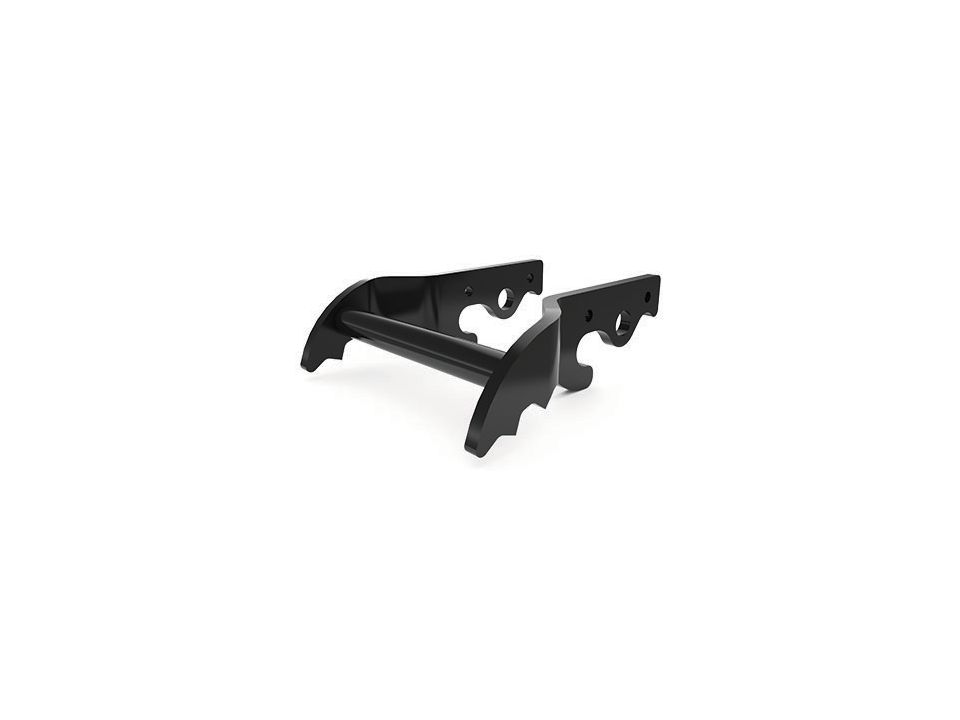

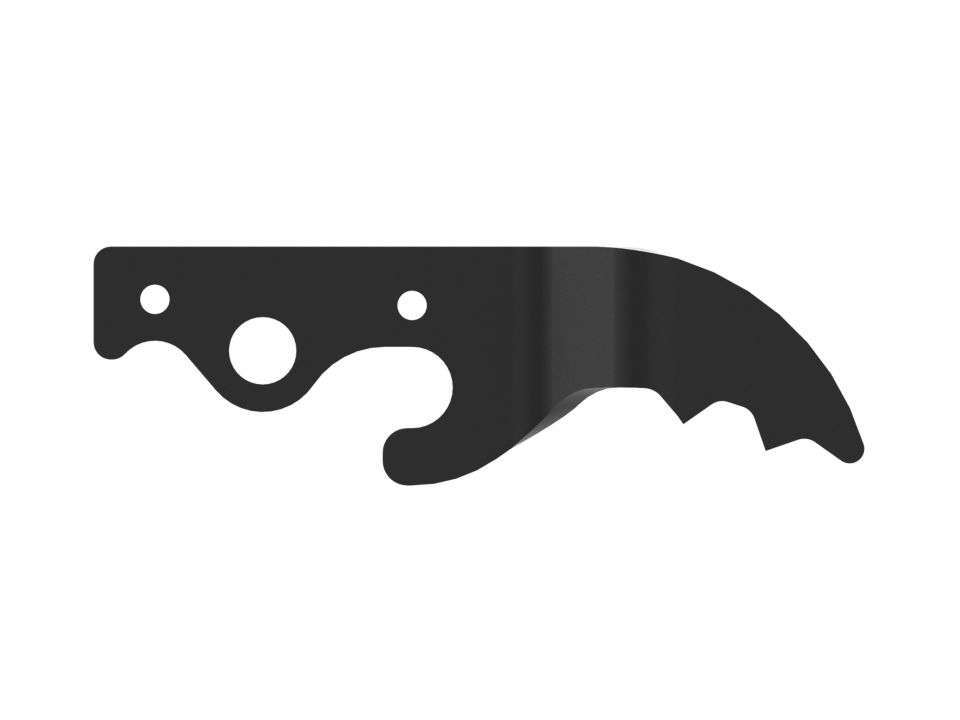

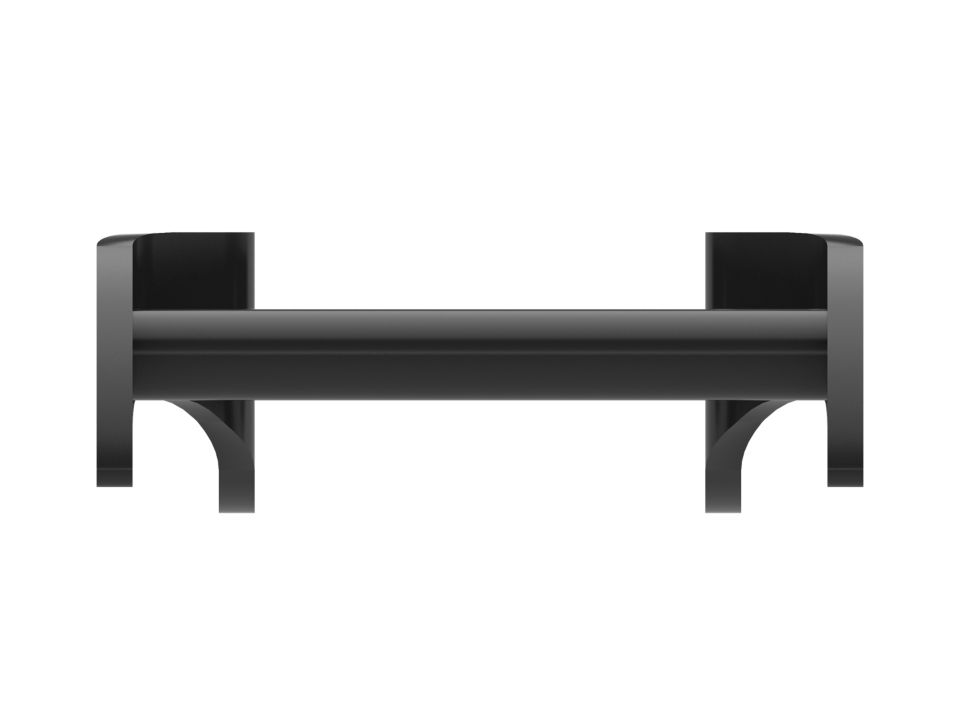

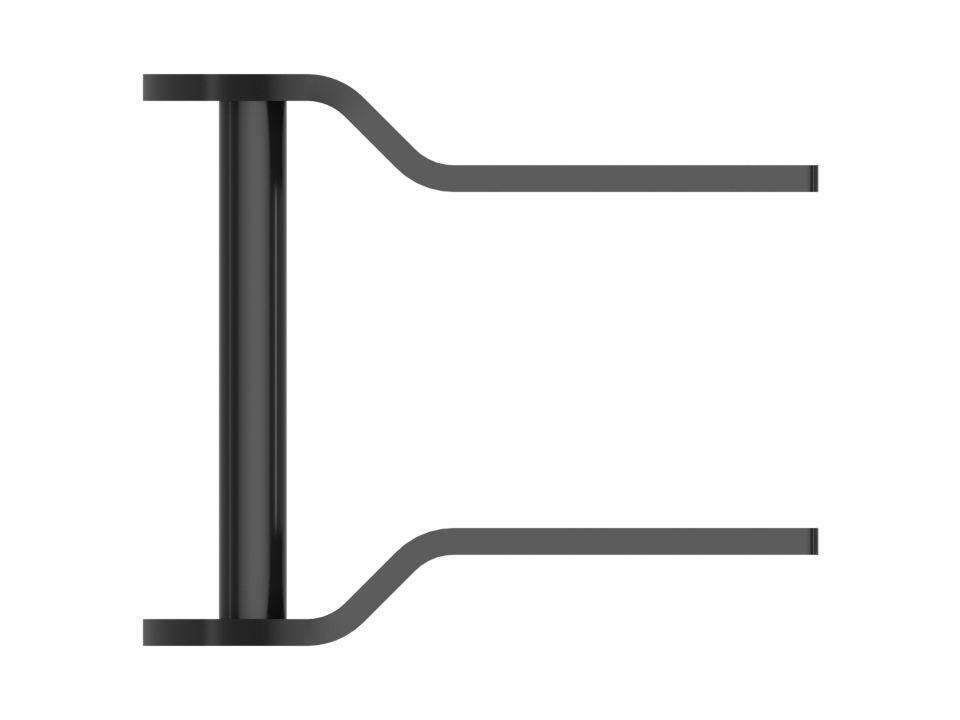

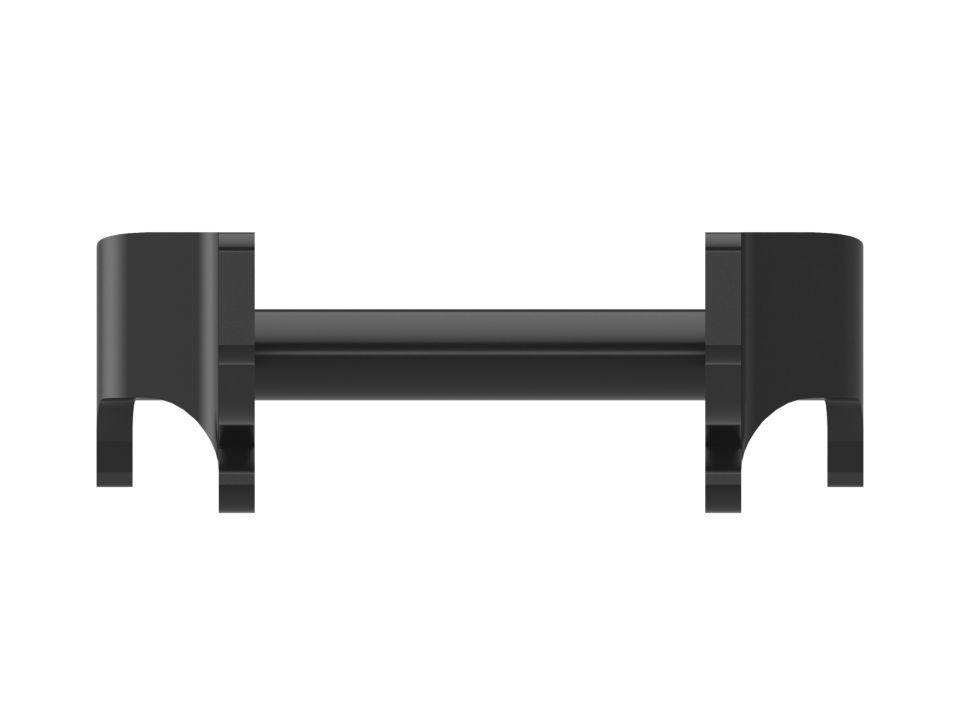

2 Tooth - B1 Thumb Tine Type

Cat® Thumb Tines for Backhoe Loaders are designed to resist bending and abrasion. Each Thumb Tine will work with a range of bucket widths. Consult your dealer to select the right tine/thumb combination for the types of buckets being used to ensure proper thumb operation.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Number of Teeth/Tines

2 Teeth/2 Tines
{"Name":"Number of Teeth/Tines","SpecificationId":null,"TextValue":"2 Teeth/2 Tines","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"1"}
Width

14.3 in 363 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.3","MetricUnit":"mm","MetricValue":"363","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Overall Length

24.8 in 629 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"24.8","MetricUnit":"mm","MetricValue":"629","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Overall Height

7.7 in 195 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.7","MetricUnit":"mm","MetricValue":"195","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Tine Spacing

19 in 483 mm
{"Name":"Tine Spacing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"19","MetricUnit":"mm","MetricValue":"483","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Tine Thickness

1 in 25 mm
{"Name":"Tine Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

83.3 lb 37.8 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"83.3","MetricUnit":"kg","MetricValue":"37.8","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Machine Class

415-444 Backhoe Loaders
{"Name":"Machine Class","SpecificationId":null,"TextValue":"415-444 Backhoe Loaders","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Thumb Tine Type

B1
{"Name":"Thumb Tine Type","SpecificationId":null,"TextValue":"B1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
