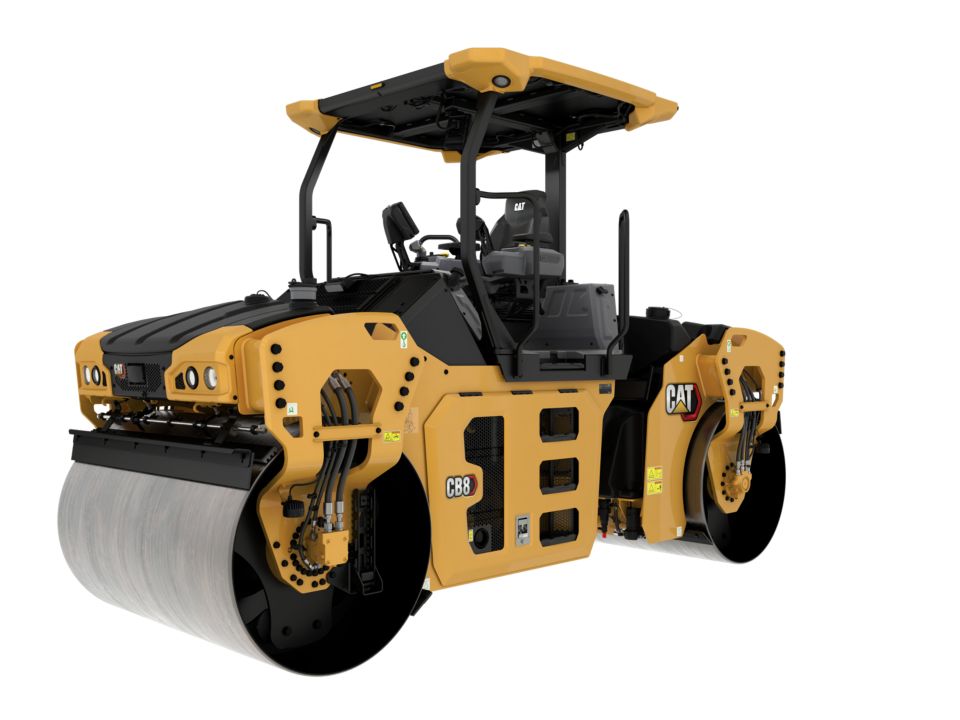

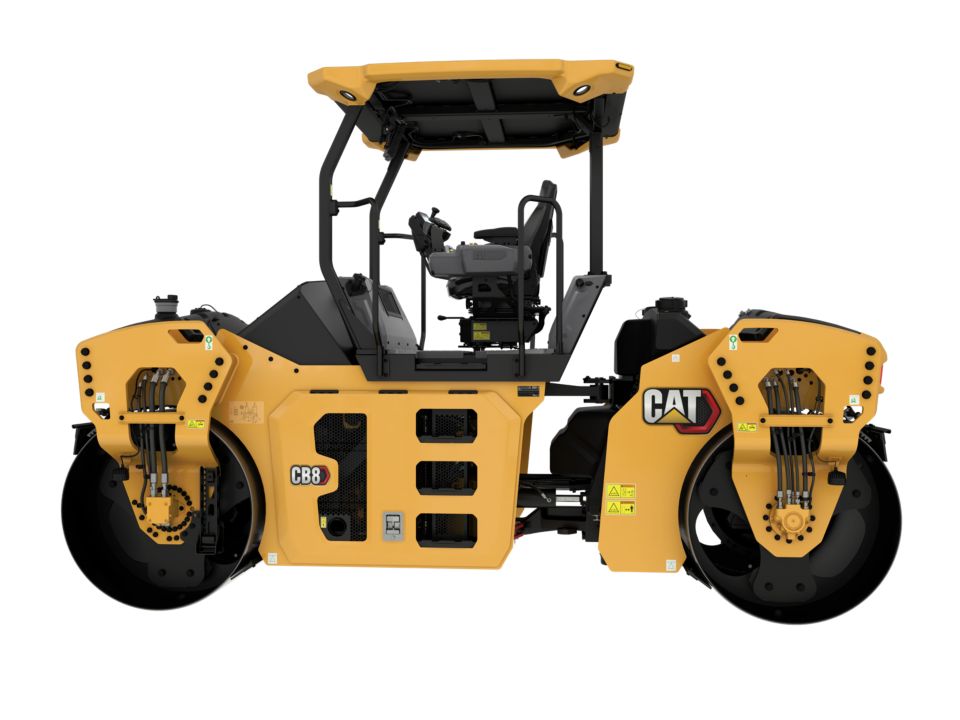

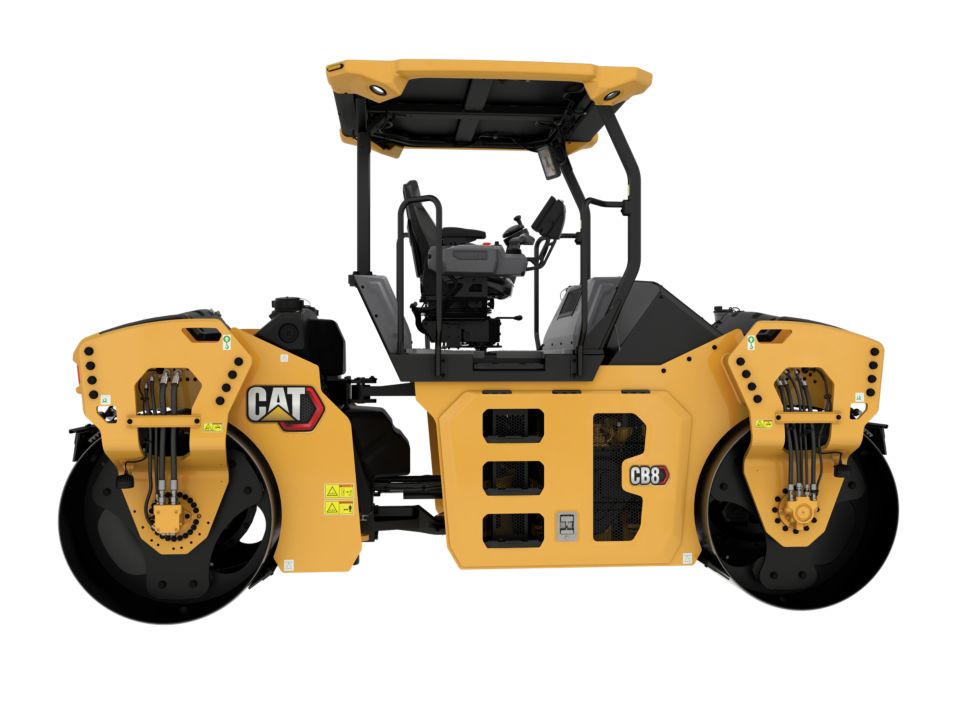

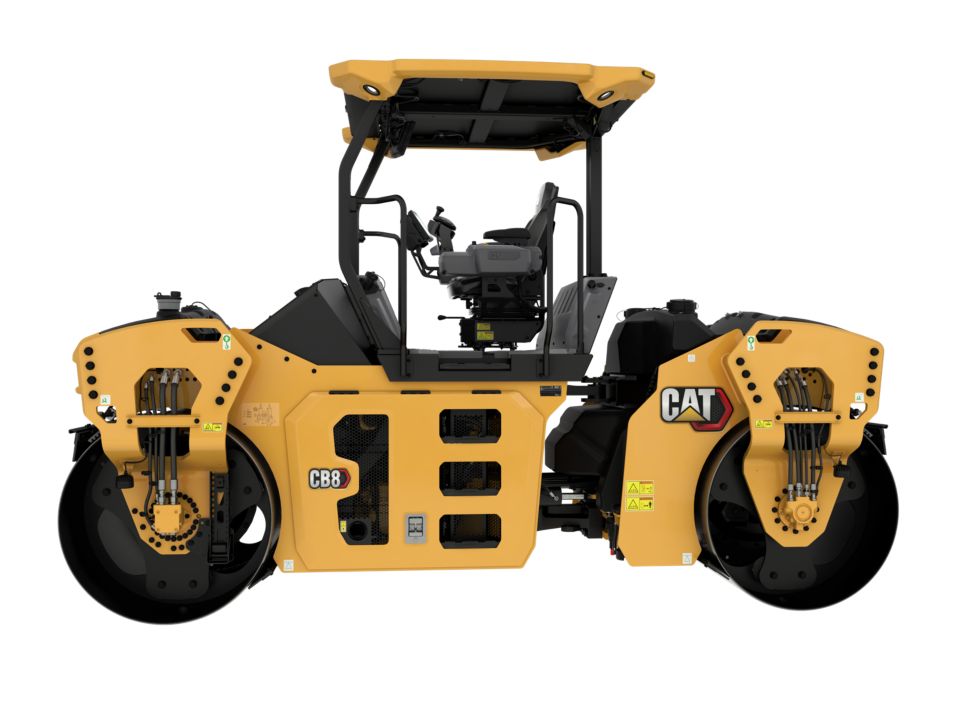

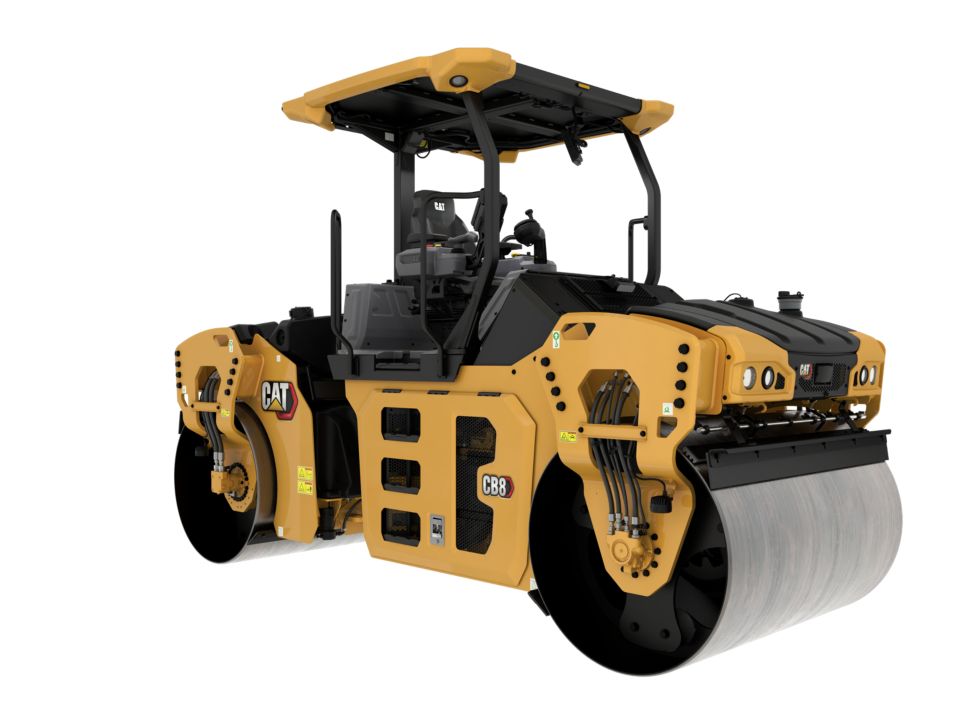

CB8
CB8
Get it dense and keep it smooth. Cat Tandem Vibratory Rollers do that and more. Caterpillar offers a vibratory system for every application. Most models have high frequency combined with low amplitude that match high paving speed on thin lifts as well as low frequency with high amplitude that match low paving speed on thick lifts of stiff material. As stand-alone units or as complements to high production tandem rollers, Cat Utility Rollers set the standards for versatility and reliability. A wide range of drum widths lets you precisely match the machine to the job requirements—whether it's a narrow shoulder, a patching project, a parking lot or a bicycle path. Vibratory systems are characterized by high frequency for fast working speed and high compaction energy for getting density in the fewest passes.
Book a Demo
Explore my deals
Specifications
Dimensions
-
Height - With ROPS/FOPS118 in 2984 mm
-
Wheel Base130 in 3300 mm
-
Drum Diameter44 in 1108 mm
-
Overall Length179 in 4558 mm
-
Overall Width78 in 1977 mm
Engine
-
Engine ModelCat C3.6
-
Gross Power100 hp 74.4 kW
Operating Specifications
-
Standard Compaction Width67 in 1700 mm
-
Static Linear Load161 lb/in 28.6 kg/cm
-
Maximum Compaction Width73 in 1870 mm
-
Travel Speed - Maximum7 mile/h 11 km/h
Service Refill Capacities
-
Fuel Tank Capacity36 gal (US) 137 l
-
Water Spray Tank Capacity195 gal (US) 740 l
Vibratory System
-
Drum Width67 in 1700 mm
-
Centrifugal Force per Drum - Maximum17018 lb 75.7 kN
-
Centrifugal Force per Drum - Minimum11285 lb 50.2 kN
-
Nominal Amplitude - High0.026 in 0.65 mm
-
Nominal Amplitude - Low0.012 in 0.31 mm
-
Vibration SelectionIndependent per drum, front only, rear only, both
-
Maximum Frequency3800 VPM 63.3 Hz
-
Minimum Frequency53.3 VPM 3200 Hz
Weights
-
Standard Operating Weight with ROPS20187 lb 9155 kg
-
Maximum Operating Weight with ROPS21003 lb 9525 kg
Benefits
Simple to Operate, Easy to Learn
- Large, full-color displays keep the operator informed of machine functions including water and fuel levels, impact spacing, and mat temperature.
- Innovative hand-wheel steering technology delivers precise control and good forward visibility.
- Easily activate the vibratory system, water spray system and drum offset with the multi-function propel handle.
- Machine functions with LED indicators have been independently grouped for simplified control and quick activation.
- Rotary dials with green light indicators provide a quick visual reference and fingertip feel for quick adjustment to speed control and water spray timers.
Better Fuel Economy
- Get up to 10% better fuel economy with the Cat C3.6 engine and standard Eco-mode.
- The C3.6 engine provides 74.4 kW (100 hp) of power and meets U.S. EPA Tier 4 Final emissions.
- Unique Eco-mode design modifies engine speed based on load requirements; high amplitude vibration utilizes higher engine speeds, while static rolling conserves fuel and operates at low engine speed with even lower sound levels.
Work Safer with Enhanced Visibility
- Optional top down, 360 viewing utilizes cameras mounted in each corner of the ROPS for excellent work-zone visibility. This option utilizes a high-definition display mounted to a swivel on the upper left side of the ROPS.
- Optional fore and aft cameras mounted in the front and rear bumpers provide outstanding visibility when approaching obstacles. The camera view is integrated into the main operating display.
- Optimize sight lines with 360 seating option; always face the direction of travel.
- LED Lighting delivers excellent job site illumination while conserving energy.
- Night-lighting option provides additional illumination to the ROPS, drum edges, and drum surfaces.
Easy Vibratory System Set-up
- Two-amplitude/two-frequency vibratory system automatically optimizes amplitude and frequency with a single switch for simple thin/thick lift operation.
- Reach compaction goals with automatic speed control; green indicators help ensure travel speed matches correct impact spacing.
- Built-in application profiles for thin lift or thick lift applications can be quickly activated through the operating display.
- Single touch vibratory system profiles for frequency and speed help ensure optimal impact spacing.
Ensure Mat Coverage with Compaction Control
- Pass-count and Temperature Mapping combines infrared temperature sensors with GPS mapping to keep the operator informed of current asphalt temperatures, machine position, pass-count, and layer coverage.
- Compaction Meter Value (CMV) utilizes a drum-mounted accelerometer to measure the combined stiffness of the asphalt layer, base layer, and sub-base layer to indicate road structure quality beneath the surface.
Prevent Build-Up, Keep the Drum Surfaces Wet
- High capacity water tank provides long duration between fills
- Dual water pumps provide back-up capability and alternate with direction of travel to maximize service life.
- Triple filtration prevents clogs with filters located at the fill point, water pumps, and spray nozzles.
- Simple rotary dial provides adjustable spray settings and intermittent modes that help conserve water.
- Integrated freeze protection kit (optional) provides protection in cold temperatures when machine is not in use.
Product Link™
- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs.
- Easily track location, machine hours, fuel usage, and idle time.
- Diagnostic codes are made available through online web applications.
- Remote flash works around your schedule to ensure your machine’s software is up to date for optimal performance
Equipment Info
Operating Environment
180° seat positioning w/ sliding station
Technology
Product Link™ PLE743
Powertrain
C3.6 4-cylinder
Electrical System
150 amp alternator
Vibratory System
Two amplitude/two frequency - both drums
Service and Maintenance
Maintenance-free hitch
Safety
Alarm, back up
