815

815

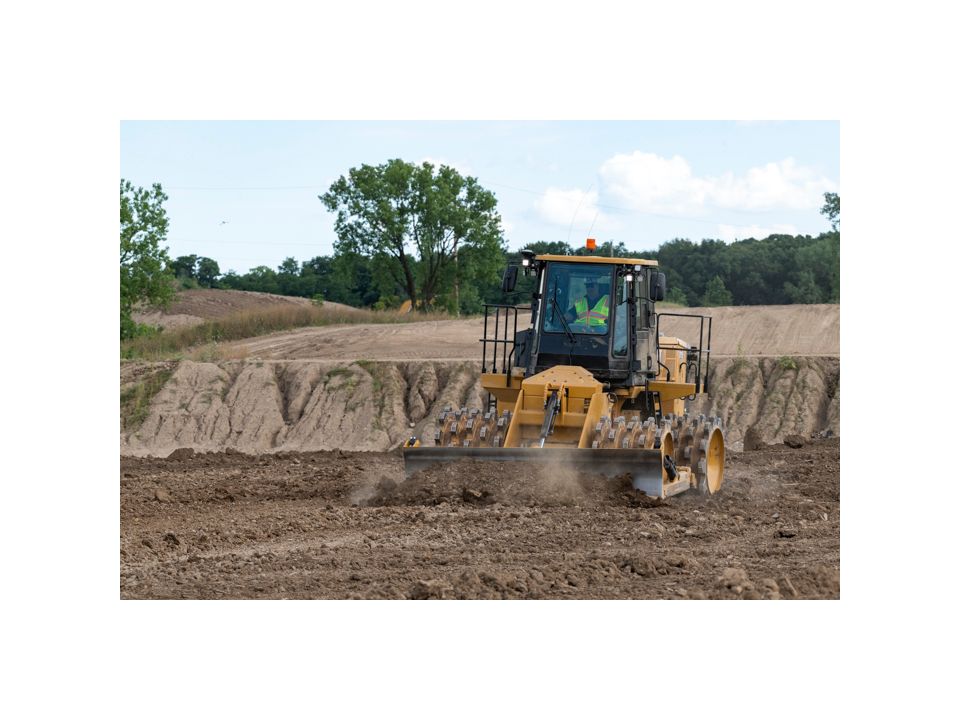

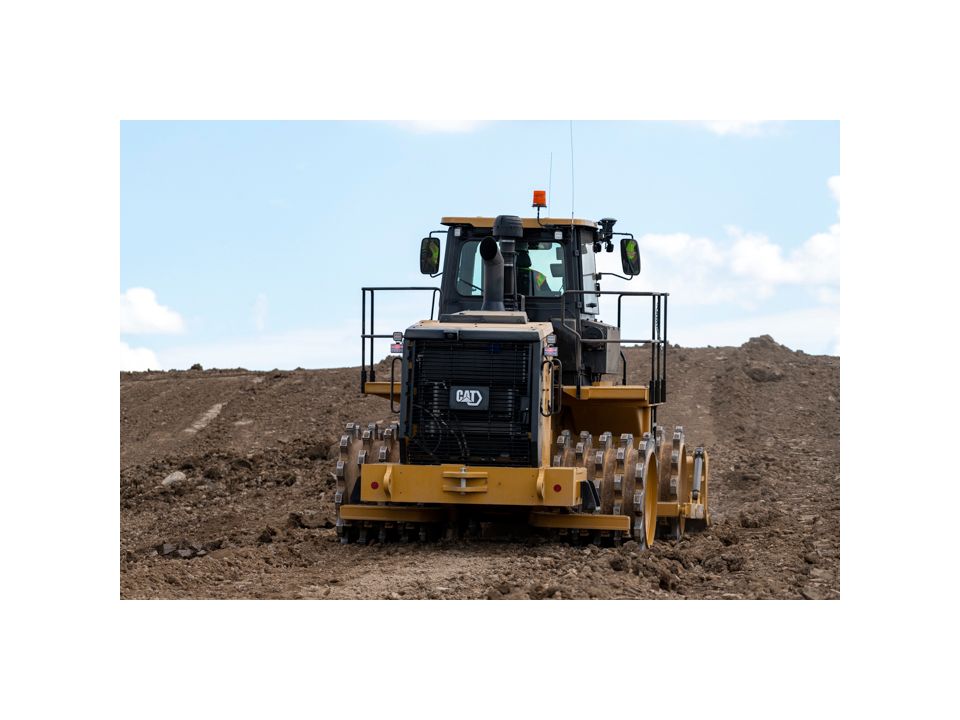

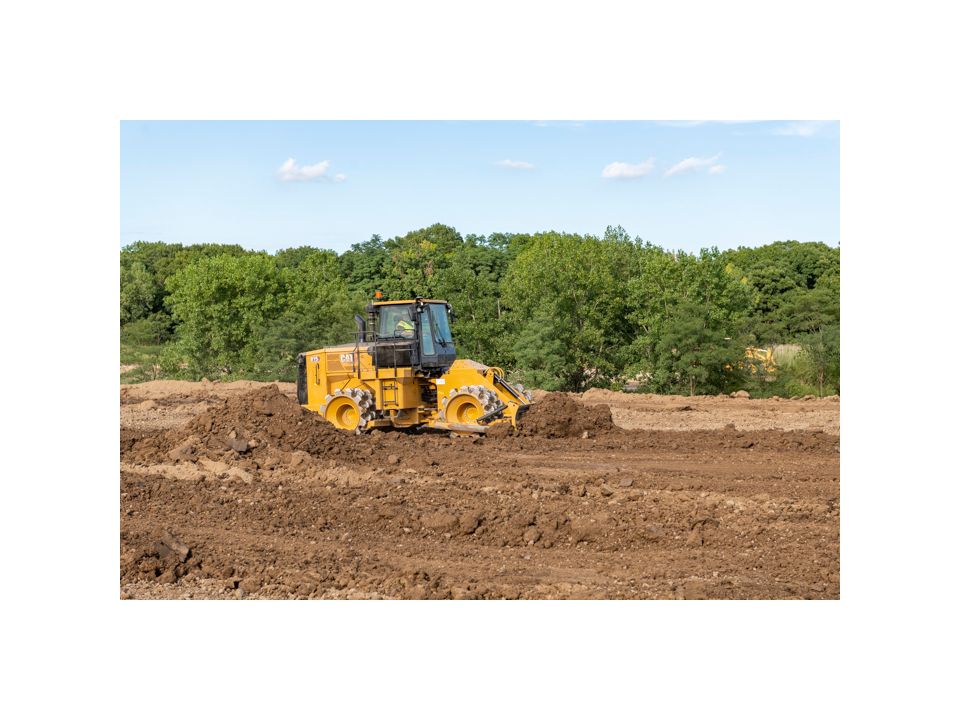

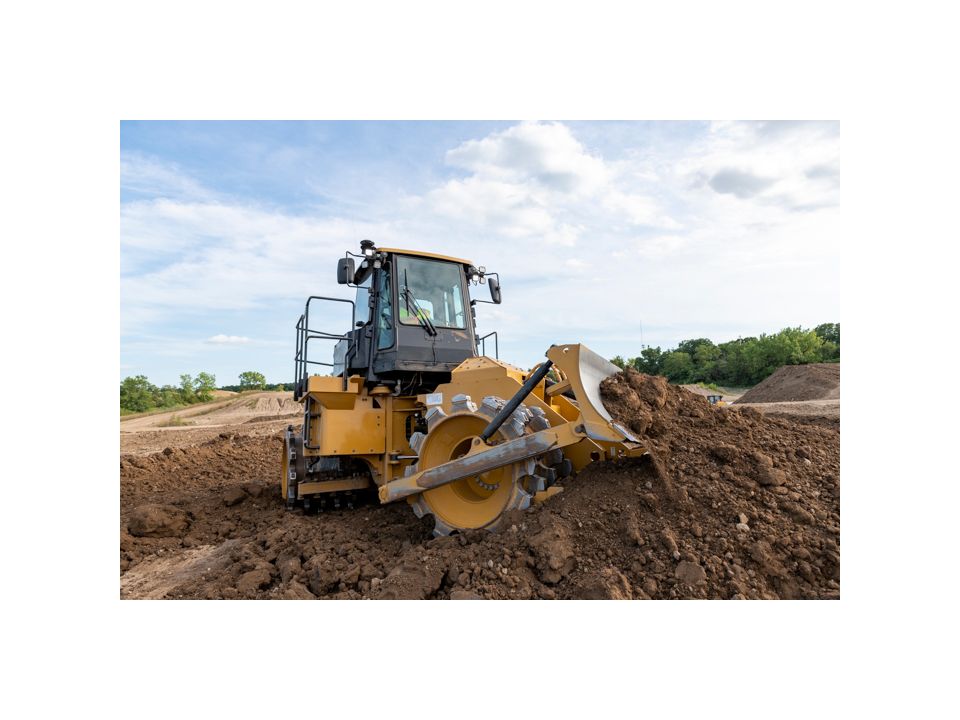

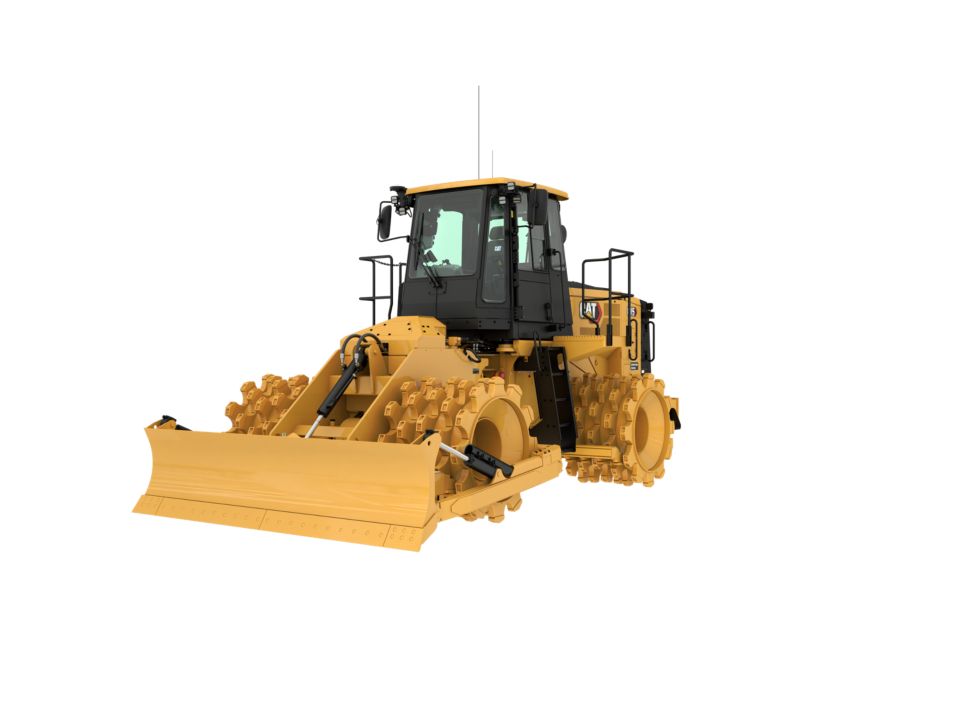

The purpose built Cat four wheel drive soil compactors maximize soil density through a tamping wheel tip design, machine weight impact and higher speeds for greater penetration.

Book a Demo
Explore my deals
Specifications
Air Conditioning System
  • Air Conditioning
    The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).
    {"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).","EnglishUnit":"ft","EnglishValue":"7.9","MetricUnit":"mm","MetricValue":"2405","Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"90"}
Axles
  • Front
    Planetary – Fixed
    {"Name":"Front","SpecificationId":null,"TextValue":"Planetary – Fixed","EnglishUnit":"ft","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"3344","Type":"text","SpecificationGroup":"Axles","SortOrder":"70"}
  • Rear
    Planetary – Oscillating
    {"Name":"Rear","SpecificationId":null,"TextValue":"Planetary – Oscillating","EnglishUnit":"gal (US)","EnglishValue":"21.4","MetricUnit":"l","MetricValue":"81","Type":"text","SpecificationGroup":"Axles","SortOrder":"71"}
  • Oscillation Angle
    ±10
    {"Name":"Oscillation Angle","SpecificationId":null,"TextValue":"±10","EnglishUnit":"gal (US)","EnglishValue":"19.3","MetricUnit":"l","MetricValue":"73","Type":"text","SpecificationGroup":"Axles","SortOrder":"72"}
Blades
  • Capacity
    2.69 yd³ 2.06 m³
    {"Name":"Capacity","SpecificationId":null,"TextValue":"Drum and Shoe, Spring Applied, Hydraulic Released","EnglishUnit":"yd³","EnglishValue":"2.69","MetricUnit":"m³","MetricValue":"2.06","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"110"}
  • Overall Width
    12.3 ft 3761 mm
    {"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.3","MetricUnit":"mm","MetricValue":"3761","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"111"}
  • Height
    2.8 ft 860 mm
    {"Name":"Height","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"ft","EnglishValue":"2.8","MetricUnit":"mm","MetricValue":"860","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"112"}
  • Digging Depth
    0.7 ft 222 mm
    {"Name":"Digging Depth","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"0.7","MetricUnit":"mm","MetricValue":"222","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"113"}
  • Ground Clearance
    2.6 ft 802 mm
    {"Name":"Ground Clearance","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"ft","EnglishValue":"2.6","MetricUnit":"mm","MetricValue":"802","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"114"}
  • Maximum Tilt
    1.1 ft 346 mm
    {"Name":"Maximum Tilt","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"ft","EnglishValue":"1.1","MetricUnit":"mm","MetricValue":"346","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"115"}
  • Turning Radius - Outside Corner of Blade
    21.1 ft 6437 mm
    {"Name":"Turning Radius - Outside Corner of Blade","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"21.1","MetricUnit":"mm","MetricValue":"6437","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"116"}
  • Turning Radius - Inside Face of Pusharm
    8.3 ft 2520 mm
    {"Name":"Turning Radius - Inside Face of Pusharm","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.3","MetricUnit":"mm","MetricValue":"2520","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"117"}
  • Weight
    1764 lb 800 kg
    {"Name":"Weight","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"lb","EnglishValue":"1764","MetricUnit":"kg","MetricValue":"800","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"118"}
  • Total Operating Weight
    49652 lb 22522 kg
    {"Name":"Total Operating Weight","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"lb","EnglishValue":"49652","MetricUnit":"kg","MetricValue":"22522","Type":"measurement","SpecificationGroup":"Blades","SortOrder":"119"}
Braking System
  • Service Brakes
    Single Disc Wet (Enclosed) 2 WHL
    {"Name":"Service Brakes","SpecificationId":null,"TextValue":"Single Disc Wet (Enclosed) 2 WHL","EnglishUnit":"ft","EnglishValue":"8.6","MetricUnit":"mm","MetricValue":"2616","Type":"text","SpecificationGroup":"Braking System","SortOrder":"80"}
  • Parking Brake
    Drum and Shoe, Spring Applied, Hydraulic Released
    {"Name":"Parking Brake","SpecificationId":null,"TextValue":"Drum and Shoe, Spring Applied, Hydraulic Released","EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"text","SpecificationGroup":"Braking System","SortOrder":"81"}
Dimensions (Approximate)
  • Height - Top of Beacon
    12.9 ft 3933 mm
    {"Name":"Height - Top of Beacon","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"12.9","MetricUnit":"mm","MetricValue":"3933","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"130"}
  • Height - Top of Cab Roof
    12 ft 3650 mm
    {"Name":"Height - Top of Cab Roof","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"12","MetricUnit":"mm","MetricValue":"3650","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"131"}
  • Height - Top of Exhaust Pipe
    11.1 ft 3394 mm
    {"Name":"Height - Top of Exhaust Pipe","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"ft","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"3394","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"132"}
  • Height - Top of Hood
    8.6 ft 2616 mm
    {"Name":"Height - Top of Hood","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"ft","EnglishValue":"8.6","MetricUnit":"mm","MetricValue":"2616","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"133"}
  • Height to Top of Radiator Guard
    7.9 ft 2405 mm
    {"Name":"Height to Top of Radiator Guard","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"7.9","MetricUnit":"mm","MetricValue":"2405","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"134"}
  • Ground Clearance to Hitch
    1.2 ft 365 mm
    {"Name":"Ground Clearance to Hitch","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"1.2","MetricUnit":"mm","MetricValue":"365","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"135"}
  • Ground Clearance to Transmission Guard
    1.2 ft 375 mm
    {"Name":"Ground Clearance to Transmission Guard","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"1.2","MetricUnit":"mm","MetricValue":"375","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"136"}
  • Ground Clearance to Bottom of Bumper
    2.2 ft 665 mm
    {"Name":"Ground Clearance to Bottom of Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.2","MetricUnit":"mm","MetricValue":"665","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"137"}
  • Centerline of Rear Axle to Bumper
    6.5 ft 1990 mm
    {"Name":"Centerline of Rear Axle to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"1990","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"138"}
  • Hitch to Centerline of Front Axle
    5.5 ft 1675 mm
    {"Name":"Hitch to Centerline of Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.5","MetricUnit":"mm","MetricValue":"1675","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"139"}
  • Wheel Base
    11 ft 3350 mm
    {"Name":"Wheel Base","SpecificationId":null,"TextValue":"12","EnglishUnit":"ft","EnglishValue":"11","MetricUnit":"mm","MetricValue":"3350","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"140"}
  • Width over Platform
    10.3 ft 3140 mm
    {"Name":"Width over Platform","SpecificationId":null,"TextValue":"12","EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3140","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"141"}
  • Height to Top of GPS Antenna
    12.1 ft 3701 mm
    {"Name":"Height to Top of GPS Antenna","SpecificationId":null,"TextValue":"60","EnglishUnit":"ft","EnglishValue":"12.1","MetricUnit":"mm","MetricValue":"3701","Type":"measurement","SpecificationGroup":"Dimensions (Approximate)","SortOrder":"142"}
Engine
  • Gross Power (SAE J1995:2014)
    284 hp 212 kW
    {"Name":"Gross Power (SAE J1995:2014)","SpecificationId":null,"TextValue":"Cat® C7.1: configured for two emissions options","EnglishUnit":"hp","EnglishValue":"284","MetricUnit":"kW","MetricValue":"212","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
  • Net Power (SAE J1349:2011)
    249 hp 186 kW
    {"Name":"Net Power (SAE J1349:2011)","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final/EU Stage V emission standards","EnglishUnit":"hp","EnglishValue":"249","MetricUnit":"kW","MetricValue":"186","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"2"}
  • Net Power (ISO 9249:2007)
    249 hp 186 kW
    {"Name":"Net Power (ISO 9249:2007)","SpecificationId":null,"TextValue":"52%","EnglishUnit":"hp","EnglishValue":"249","MetricUnit":"kW","MetricValue":"186","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"3"}
  • Engine Power (ISO 14396:2002)
    275 hp 205 kW
    {"Name":"Engine Power (ISO 14396:2002)","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final/EU Stage V emission standards","EnglishUnit":"hp","EnglishValue":"275","MetricUnit":"kW","MetricValue":"205","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
  • Emissions
    Option 1 - U.S. EPA Tier 4 Final/EU Stage V
    {"Name":"Emissions","SpecificationId":null,"TextValue":"Option 1 - U.S. EPA Tier 4 Final/EU Stage V","EnglishUnit":"r/min","EnglishValue":"2200","MetricUnit":"r/min","MetricValue":"2200","Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
  • Engine Model
    Cat® C7.1
    {"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C7.1","EnglishUnit":"HP","EnglishValue":"284","MetricUnit":"kW","MetricValue":"212","Type":"text","SpecificationGroup":"Engine","SortOrder":"6"}
  • Rated Speed
    2200 r/min 2200 r/min
    {"Name":"Rated Speed","SpecificationId":null,"TextValue":"26%","EnglishUnit":"r/min","EnglishValue":"2200","MetricUnit":"r/min","MetricValue":"2200","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
  • Torque Rise
    52%
    {"Name":"Torque Rise","SpecificationId":null,"TextValue":"52%","EnglishUnit":"lb-ft @ 1400 rpm","EnglishValue":"902","MetricUnit":"N·m","MetricValue":"1223","Type":"text","SpecificationGroup":"Engine","SortOrder":"9"}
  • Note (1)
    Net power available at flywheel when the engine is equipped with fan, air cleaner, aftertreatment, and alternator with engine speed at 2,200 rpm.
    {"Name":"Note (1)","SpecificationId":null,"TextValue":"Net power available at flywheel when the engine is equipped with fan, air cleaner, aftertreatment, and alternator with engine speed at 2,200 rpm.","EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
  • Emissions
    Option 2 - Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA
    {"Name":"Emissions","SpecificationId":null,"TextValue":"Option 2 - Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA","EnglishUnit":"in","EnglishValue":"4.1","MetricUnit":"mm","MetricValue":"105","Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
  • Rated Speed
    2200 r/min
    {"Name":"Rated Speed","SpecificationId":null,"TextValue":"2200 r/min","EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}
  • Net Power - ISO 9249:2007
    249 hp 186 kW
    {"Name":"Net Power - ISO 9249:2007","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"249","MetricUnit":"kW","MetricValue":"186","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"14"}
  • Gross Power - SAE J1995:2014
    286 hp 213 kW
    {"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":"Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA","EnglishUnit":"hp","EnglishValue":"286","MetricUnit":"kW","MetricValue":"213","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"15"}
  • Peak Torque ( 1,400 rpm )
    749 lbf·ft 1016 N·m
    {"Name":"Peak Torque ( 1,400 rpm )","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf·ft","EnglishValue":"749","MetricUnit":"N·m","MetricValue":"1016","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
  • Torque Rise
    26 % 26 %
    {"Name":"Torque Rise","SpecificationId":null,"TextValue":null,"EnglishUnit":"%","EnglishValue":"26","MetricUnit":"%","MetricValue":"26","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"18"}
  • Note (2)
    Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 2,200 rpm.
    {"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 2,200 rpm.","EnglishUnit":"ft","EnglishValue":"9842.5","MetricUnit":"m","MetricValue":"3000","Type":"text","SpecificationGroup":"Engine","SortOrder":"19"}
  • Bore
    4.1 in 105 mm
    {"Name":"Bore","SpecificationId":null,"TextValue":"Cat® C7.1: configured for two emissions options","EnglishUnit":"in","EnglishValue":"4.1","MetricUnit":"mm","MetricValue":"105","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"20"}
  • Stroke
    5.3 in 135 mm
    {"Name":"Stroke","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"in","EnglishValue":"5.3","MetricUnit":"mm","MetricValue":"135","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"21"}
  • Displacement
    427.8 in³ 7.01 l
    {"Name":"Displacement","SpecificationId":null,"TextValue":"Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA","EnglishUnit":"in³","EnglishValue":"427.8","MetricUnit":"l","MetricValue":"7.01","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"22"}
  • High Idle Speed
    2270 r/min 2270 r/min
    {"Name":"High Idle Speed","SpecificationId":null,"TextValue":"Pilot, Load Sensing","EnglishUnit":"r/min","EnglishValue":"2270","MetricUnit":"r/min","MetricValue":"2270","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"23"}
  • Low Idle Speed
    800 r/min 800 r/min
    {"Name":"Low Idle Speed","SpecificationId":null,"TextValue":"Piston – Variable Displacement","EnglishUnit":"r/min","EnglishValue":"800","MetricUnit":"r/min","MetricValue":"800","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"24"}
  • Maximum Altitude - Without Derating
    9842.5 ft 3000 m
    {"Name":"Maximum Altitude - Without Derating","SpecificationId":null,"TextValue":"84","EnglishUnit":"ft","EnglishValue":"9842.5","MetricUnit":"m","MetricValue":"3000","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"25"}
Hydraulic System - Lift/Tilt
  • Lift/Tilt System - Circuit
    Pilot operated Load Sensing valve with EH
    {"Name":"Lift/Tilt System - Circuit","SpecificationId":null,"TextValue":"Pilot operated Load Sensing valve with EH","EnglishUnit":"lb","EnglishValue":"49652","MetricUnit":"kg","MetricValue":"22522","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"40"}
  • Lift/Tilt System
    Variable displacement piston
    {"Name":"Lift/Tilt System","SpecificationId":null,"TextValue":"Variable displacement piston","EnglishUnit":"psi","EnglishValue":"4003","MetricUnit":"kPa","MetricValue":"27600","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"41"}
  • Maximum Flow at 2,200 rpm
    23.5 gal/min 89 l/min
    {"Name":"Maximum Flow at 2,200 rpm","SpecificationId":null,"TextValue":"84°","EnglishUnit":"gal/min","EnglishValue":"23.5","MetricUnit":"l/min","MetricValue":"89","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"42"}
  • Relief Valve Setting - Lift/Tilt
    3190 psi 22000 kPa
    {"Name":"Relief Valve Setting - Lift/Tilt","SpecificationId":null,"TextValue":"All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1.","EnglishUnit":"psi","EnglishValue":"3190","MetricUnit":"kPa","MetricValue":"22000","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"43"}
  • Cylinders, Double Acting: Lift, Bore, Stroke
    101.6 mm x 627 mm (4.0 in x 24.7 in)
    {"Name":"Cylinders, Double Acting: Lift, Bore, Stroke","SpecificationId":null,"TextValue":"101.6 mm x 627 mm (4.0 in x 24.7 in)","EnglishUnit":"mile/h","EnglishValue":"11.3","MetricUnit":"km/h","MetricValue":"18.2","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"44"}
  • Cylinders, Double Acting: Left and Right Tilt, Bore, Stroke
    101.6 mm x 167 mm (4.0 in x 6.6 in)
    {"Name":"Cylinders, Double Acting: Left and Right Tilt, Bore, Stroke","SpecificationId":null,"TextValue":"101.6 mm x 167 mm (4.0 in x 6.6 in)","EnglishUnit":"mile/h","EnglishValue":"4.5","MetricUnit":"km/h","MetricValue":"7.2","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"45"}
  • Pilot System
    Open center, fixed displacement gear
    {"Name":"Pilot System","SpecificationId":null,"TextValue":"Open center, fixed displacement gear","EnglishUnit":"mile/h","EnglishValue":"8.5","MetricUnit":"km/h","MetricValue":"12.4","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"46"}
  • Pilot Relief Valve Setting
    3046 psi 21000 kPa
    {"Name":"Pilot Relief Valve Setting","SpecificationId":null,"TextValue":"Planetary – Fixed","EnglishUnit":"psi","EnglishValue":"3046","MetricUnit":"kPa","MetricValue":"21000","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"47"}
Hydraulic System - Steering
  • Steering System - Circuit
    Pilot, Load Sensing
    {"Name":"Steering System - Circuit","SpecificationId":null,"TextValue":"Pilot, Load Sensing","EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"50"}
  • Steering System - Pump
    Piston – Variable Displacement
    {"Name":"Steering System - Pump","SpecificationId":null,"TextValue":"Piston – Variable Displacement","EnglishUnit":"gal (US)","EnglishValue":"14.8","MetricUnit":"l","MetricValue":"56","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"51"}
  • Maximum Flow at 2,200 rpm
    38.8 gal/min 147 l/min
    {"Name":"Maximum Flow at 2,200 rpm","SpecificationId":null,"TextValue":"Single Disc Wet (Enclosed) 2 WHL","EnglishUnit":"gal/min","EnglishValue":"38.8","MetricUnit":"l/min","MetricValue":"147","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"52"}
  • Relief Valve Setting - Steering
    4003 psi 27600 kPa
    {"Name":"Relief Valve Setting - Steering","SpecificationId":null,"TextValue":"Drum and Shoe, Spring Applied, Hydraulic Released","EnglishUnit":"psi","EnglishValue":"4003","MetricUnit":"kPa","MetricValue":"27600","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"53"}
  • Total Steering Angle
    84°
    {"Name":"Total Steering Angle","SpecificationId":null,"TextValue":"84°","EnglishUnit":"gal (US)","EnglishValue":"19.8","MetricUnit":"l","MetricValue":"75","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"54"}
  • Steering Cycle Times - High Idle
    3 s 3 s
    {"Name":"Steering Cycle Times - High Idle","SpecificationId":null,"TextValue":"Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.","EnglishUnit":"s","EnglishValue":"3","MetricUnit":"s","MetricValue":"3","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"55"}
  • Steering Cycle Times - Low Idle
    8.2 s 8.2 s
    {"Name":"Steering Cycle Times - Low Idle","SpecificationId":null,"TextValue":"Pilot, Load Sensing","EnglishUnit":"s","EnglishValue":"8.2","MetricUnit":"s","MetricValue":"8.2","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"56"}
Operating Specifications
  • Operating Weight (Tier 4 Final/Stage V)
    49652 lb 22522 kg
    {"Name":"Operating Weight (Tier 4 Final/Stage V)","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"49652","MetricUnit":"kg","MetricValue":"22522","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"20"}
  • Operating Weight (Tier 3/Stage IIIA equivalent)
    49013 lb 22232 kg
    {"Name":"Operating Weight (Tier 3/Stage IIIA equivalent)","SpecificationId":null,"TextValue":"26%","EnglishUnit":"lb","EnglishValue":"49013","MetricUnit":"kg","MetricValue":"22232","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
Service Refill Capacities
  • Fuel Tank
    132.1 gal (US) 500 l
    {"Name":"Fuel Tank","SpecificationId":null,"TextValue":"Piston – Variable Displacement","EnglishUnit":"gal (US)","EnglishValue":"132.1","MetricUnit":"l","MetricValue":"500","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"60"}
  • Diesel Exhaust Fluid Tank
    4.2 gal (US) 16 l
    {"Name":"Diesel Exhaust Fluid Tank","SpecificationId":null,"TextValue":"±10","EnglishUnit":"gal (US)","EnglishValue":"4.2","MetricUnit":"l","MetricValue":"16","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"61"}
  • Cooling Systems - Tier 4 Final/EU Stage V
    21.4 gal (US) 81 l
    {"Name":"Cooling Systems - Tier 4 Final/EU Stage V","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"gal (US)","EnglishValue":"21.4","MetricUnit":"l","MetricValue":"81","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"62"}
  • Cooling System - Tier 3/Stage IIIA Equivalent
    19.3 gal (US) 73 l
    {"Name":"Cooling System - Tier 3/Stage IIIA Equivalent","SpecificationId":null,"TextValue":"84","EnglishUnit":"gal (US)","EnglishValue":"19.3","MetricUnit":"l","MetricValue":"73","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"63"}
  • Engine Crankcase
    5.3 gal (US) 20 l
    {"Name":"Engine Crankcase","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"gal (US)","EnglishValue":"5.3","MetricUnit":"l","MetricValue":"20","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"64"}
  • Transmission
    14.8 gal (US) 56 l
    {"Name":"Transmission","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"gal (US)","EnglishValue":"14.8","MetricUnit":"l","MetricValue":"56","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"65"}
  • Differential - Final Drives - Front
    17.2 gal (US) 65 l
    {"Name":"Differential - Final Drives - Front","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"gal (US)","EnglishValue":"17.2","MetricUnit":"l","MetricValue":"65","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"66"}
  • Differential - Final Drives - Rear
    17.2 gal (US) 65 l
    {"Name":"Differential - Final Drives - Rear","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"gal (US)","EnglishValue":"17.2","MetricUnit":"l","MetricValue":"65","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"67"}
  • Hydraulic Tank Only
    19.8 gal (US) 75 l
    {"Name":"Hydraulic Tank Only","SpecificationId":null,"TextValue":"Single Disc Wet (Enclosed) 2 WHL","EnglishUnit":"gal (US)","EnglishValue":"19.8","MetricUnit":"l","MetricValue":"75","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"68"}
  • Note
    Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.
    {"Name":"Note","SpecificationId":null,"TextValue":"Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.","EnglishUnit":"ft","EnglishValue":"12","MetricUnit":"mm","MetricValue":"3650","Type":"text","SpecificationGroup":"Service Refill Capacities","SortOrder":"69"}
Sound Performance - Tier 3 / Stage IIIA
  • Operator Sound Pressure Level (ISO 6396:2008)
    72 dB(A) 72 dB(A)
    {"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"111"}
  • Machine Sound Power Level (ISO 6395:2008)
    112 dB(A) 112 dB(A)
    {"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"112","MetricUnit":"dB(A)","MetricValue":"112","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"112"}
  • Operator Sound Pressure Level (ISO 6396:2008)***
    70 dB(A) 70 dB(A)
    {"Name":"Operator Sound Pressure Level (ISO 6396:2008)***","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"dB(A)","EnglishValue":"70","MetricUnit":"dB(A)","MetricValue":"70","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"113"}
  • Machine Sound Power Level (ISO 6395:2008)***
    110 dB(A) 110 dB(A)
    {"Name":"Machine Sound Power Level (ISO 6395:2008)***","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"114"}
  • Note (1)
    ***Sound suppression equipped
    {"Name":"Note (1)","SpecificationId":null,"TextValue":"***Sound suppression equipped","EnglishUnit":"dB(A)","EnglishValue":"70","MetricUnit":"dB(A)","MetricValue":"70","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"115"}
  • Note (2)
    The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.
    {"Name":"Note (2)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"11.1","MetricUnit":"mm","MetricValue":"3344","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"116"}
  • Note (3)
    The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.
    {"Name":"Note (3)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"116"}
  • Note (4)
    Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
    {"Name":"Note (4)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"ft","EnglishValue":"8.6","MetricUnit":"mm","MetricValue":"2616","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"117"}
Sound Performance - Tier 4 Final / Stage V
  • Operator Sound Pressure Level (ISO 6396:2008)
    72 dB(A) 72 dB(A)
    {"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"100"}
  • Machine Sound Power Level (ISO 6395:2008)
    112 dB(A) 112 dB(A)
    {"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"dB(A)","EnglishValue":"112","MetricUnit":"dB(A)","MetricValue":"112","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"101"}
  • Machine Sound Power Level (ISO 6395:2008)***
    109 dB(A) 109 dB(A)
    {"Name":"Machine Sound Power Level (ISO 6395:2008)***","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"109","MetricUnit":"dB(A)","MetricValue":"109","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"102"}
  • Operator Sound Pressure Level (ISO 6396:2008)*,***
    70 dB(A) 70 dB(A)
    {"Name":"Operator Sound Pressure Level (ISO 6396:2008)*,***","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"70","MetricUnit":"dB(A)","MetricValue":"70","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"103"}
  • Machine Sound Power Level (ISO 6395:2008)**
    107 dB(A) 107 dB(A)
    {"Name":"Machine Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"dB(A)","EnglishValue":"107","MetricUnit":"dB(A)","MetricValue":"107","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"104"}
  • Note (1)
    * For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”
    {"Name":"Note (1)","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives”","EnglishUnit":"ft","EnglishValue":"2.2","MetricUnit":"mm","MetricValue":"665","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"105"}
  • Note (2)
    ** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701
    {"Name":"Note (2)","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC.” and UK Noise Regulation 2001 No. 1701","EnglishUnit":"ft","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"1990","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"106"}
  • Note (3)
    ***Sound suppression equipped
    {"Name":"Note (3)","SpecificationId":null,"TextValue":"***Sound suppression equipped","EnglishUnit":"ft","EnglishValue":"5.5","MetricUnit":"mm","MetricValue":"1675","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"107"}
  • Note (4)
    The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.
    {"Name":"Note (4)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.","EnglishUnit":"gal (US)","EnglishValue":"19.8","MetricUnit":"l","MetricValue":"75","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"108"}
  • Note (5)
    The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.
    {"Name":"Note (5)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 100 percent of the maximum engine cooling fan speed.","EnglishUnit":"yd³","EnglishValue":"2.69","MetricUnit":"m³","MetricValue":"2.06","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"109"}
  • Note (6)
    Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
    {"Name":"Note (6)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"ft","EnglishValue":"11","MetricUnit":"mm","MetricValue":"3350","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"110"}
Transmission
  • Transmission Type
    Cat Planetary Power Shift
    {"Name":"Transmission Type","SpecificationId":null,"TextValue":"Cat Planetary Power Shift","EnglishUnit":"in³","EnglishValue":"4.1","MetricUnit":"mm","MetricValue":"105","Type":"text","SpecificationGroup":"Transmission","SortOrder":"30"}
  • Travel Speeds - Forward - First
    3.9 mile/h 6.3 km/h
    {"Name":"Travel Speeds - Forward - First","SpecificationId":null,"TextValue":"60","EnglishUnit":"mile/h","EnglishValue":"3.9","MetricUnit":"km/h","MetricValue":"6.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"31"}
  • Travel Speeds - Forward - Second
    6.7 mile/h 10.8 km/h
    {"Name":"Travel Speeds - Forward - Second","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.7","MetricUnit":"km/h","MetricValue":"10.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"32"}
  • Travel Speeds - Forward - Third
    11.3 mile/h 18.2 km/h
    {"Name":"Travel Speeds - Forward - Third","SpecificationId":null,"TextValue":"Open center, fixed displacement gear","EnglishUnit":"mile/h","EnglishValue":"11.3","MetricUnit":"km/h","MetricValue":"18.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"33"}
  • Travel Speeds - Reverse - First
    4.5 mile/h 7.2 km/h
    {"Name":"Travel Speeds - Reverse - First","SpecificationId":null,"TextValue":"Pilot, Load Sensing","EnglishUnit":"mile/h","EnglishValue":"4.5","MetricUnit":"km/h","MetricValue":"7.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"34"}
  • Travel Speeds - Reverse - Second
    7.7 mile/h 12.4 km/h
    {"Name":"Travel Speeds - Reverse - Second","SpecificationId":null,"TextValue":"Pilot, Load Sensing","EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"35"}
  • Travel Speeds - Reverse - Third
    11.4 mile/h 18.4 km/h
    {"Name":"Travel Speeds - Reverse - Third","SpecificationId":null,"TextValue":"Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.","EnglishUnit":"mile/h","EnglishValue":"11.4","MetricUnit":"km/h","MetricValue":"18.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"36"}
Wheels
  • Weight
    9720 lb 4409 kg
    {"Name":"Weight","SpecificationId":null,"TextValue":"The operator sound pressure level uncertainty is ± 2 dB(A)","EnglishUnit":"lb","EnglishValue":"9720","MetricUnit":"kg","MetricValue":"4409","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"120"}
  • Outside Diameter
    55.6 in 1412 mm
    {"Name":"Outside Diameter","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"in","EnglishValue":"55.6","MetricUnit":"mm","MetricValue":"1412","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"121"}
  • Drum Diameter
    40.5 in 1029 mm
    {"Name":"Drum Diameter","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"in","EnglishValue":"40.5","MetricUnit":"mm","MetricValue":"1029","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"122"}
  • Drum Width
    39 in 991 mm
    {"Name":"Drum Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"39","MetricUnit":"mm","MetricValue":"991","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"123"}
  • Tips per Row
    12
    {"Name":"Tips per Row","SpecificationId":null,"TextValue":"12","EnglishUnit":"dB(A)","EnglishValue":"112","MetricUnit":"dB(A)","MetricValue":"112","Type":"text","SpecificationGroup":"Wheels","SortOrder":"124"}
  • Tips per Wheel
    60
    {"Name":"Tips per Wheel","SpecificationId":null,"TextValue":"60","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Wheels","SortOrder":"125"}
  • Replaceable
    Weld On
    {"Name":"Replaceable","SpecificationId":null,"TextValue":"Weld On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Wheels","SortOrder":"126"}
  • Width - Over Drums
    127.7 in 3243 mm
    {"Name":"Width - Over Drums","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"in","EnglishValue":"127.7","MetricUnit":"mm","MetricValue":"3243","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"127"}
  • Width Between Drums
    49.6 in 1261 mm
    {"Name":"Width Between Drums","SpecificationId":null,"TextValue":"The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.","EnglishUnit":"in","EnglishValue":"49.6","MetricUnit":"mm","MetricValue":"1261","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"128"}
  • Tip Height
    7.5 in 192 mm
    {"Name":"Tip Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.5","MetricUnit":"mm","MetricValue":"192","Type":"measurement","SpecificationGroup":"Wheels","SortOrder":"129"}
Benefits

  • Improved ingress/egress with an improved cab with flip up armrest.
  • Keep your operators informed about machine conditions and operation with VIMS™ 3G machine monitoring system.
  • Safety and visibility enhanced with standard rearview camera.
  • Preferred temperature settings maintained with automatic climate control.
  • Premium plus seat with leather finish containing forced air heating and cooling, two-way thigh adjustment, power lumbar and back bolster adjustment, and dynamic end dampening.
  • Improved comfort with low operator sound levels.
  • Improved spectator sound levels and optional low sound packages.
  • Easier access and in a controlled environment; electronics bay is located inside the cab.
  • Focused on safety with ground level or platform access to most major components.
  • Ground level: emergency shutdown, battery disconnect, and jump start.
  • Quick visual inspection and minimize fluid contamination with sight gauges for coolant, transmission, and hydraulic oil.
  • Electronic air inlet restriction indicator.
  • Designed for ease of service and inspection.
    – Hydraulic oil cooler, fuel cooler, and condenser grouped together
    – Centralized grease points
  • Operators and technicians can resolve any problems before failure using Vital Information Management System (VIMS).
  • Powerful, responsive Cat® 7.1 engine is designed for maximum fuel economy and increased power density.
  • Reliable performance and low emissions.
  • High productivity with optional four-way tilting blade.
  • Two engine options available that meet U.S. EPA Tier 4 Final and EU Stage V emission standards or U.S. EPA Tier 3 and EU Stage IIIA equivalent.
  • For the Tier 4 Final and Stage V option, the Cat Clean Emissions Module contains a diesel oxidation catalyst, diesel particulate filter, and Cat Regeneration System, utilizing SCR technology.
  • Regeneration is completely automatic and does not interrupt the machine’s work cycle.
  • Experience maximum responsiveness and control with Steering and Transmission Integrated Control System (STIC™).
  • Conserve more fuel with the automatic engine and electrical system shutdown.
  • Achieve greater momentum on grades and fuel savings by carrying that momentum through the shift points with the all new Advanced Productivity Electronic Control System (APECS) transmission controls.
  • Operators experience less fatigue with throttle lock to maintain engine speed and reduce fuel burn.
  • Optional Cat Compact 3D mapping technology combines advanced compaction measurement, in-cab guidance, and reporting capabilities to help you consistently meet compaction targets fast, uniformly, and in fewer passes – saving on fuel and the cost of unnecessary rework.
  • Cat Compaction Control with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness.
  • Link technology (standard) provides access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes through the online VisionLink® interface.
  • Chevron tamping tip design provides greater ground pressure, more compaction, excellent traction, and a smooth ride.
  • Symmetrical tamping tip pattern results in equal compaction in forward or reverse. Tips are full perimeter and replaceable. The tip is welded to a base assembly, then welded directly to the drum.
  • Each wheel has two cleaner bars to keep the drums free of carryover dirt, regardless of rolling direction so efficiency is maximized.
  • The adjustable cleaner bar tips (standard or abrasive type) are heat-treated and direct-hardened cutting edge steel to increase wear life, which translates into lower operating costs.
Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

FUEL SYSTEMS

Fuel tank - non-fast

POWERTRAIN

Advanced Productivity Electronic Control System (APECS)

ELECTRICAL

Alarm, back-up

OPERATOR ENVIRONMENT

12V power port for mobile phone or laptop connection

WHEELS AND CLEANER BARS

Wheels, tamping foot

GUARDS

Guards, crankcase and powertrain

FLUIDS

Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)

OTHER STANDARD EQUIPMENT

Doors, service access (locking)

SPECIAL ARRANGEMENTS

Engine Precleaners - turbine
