1829 mm (72 in)

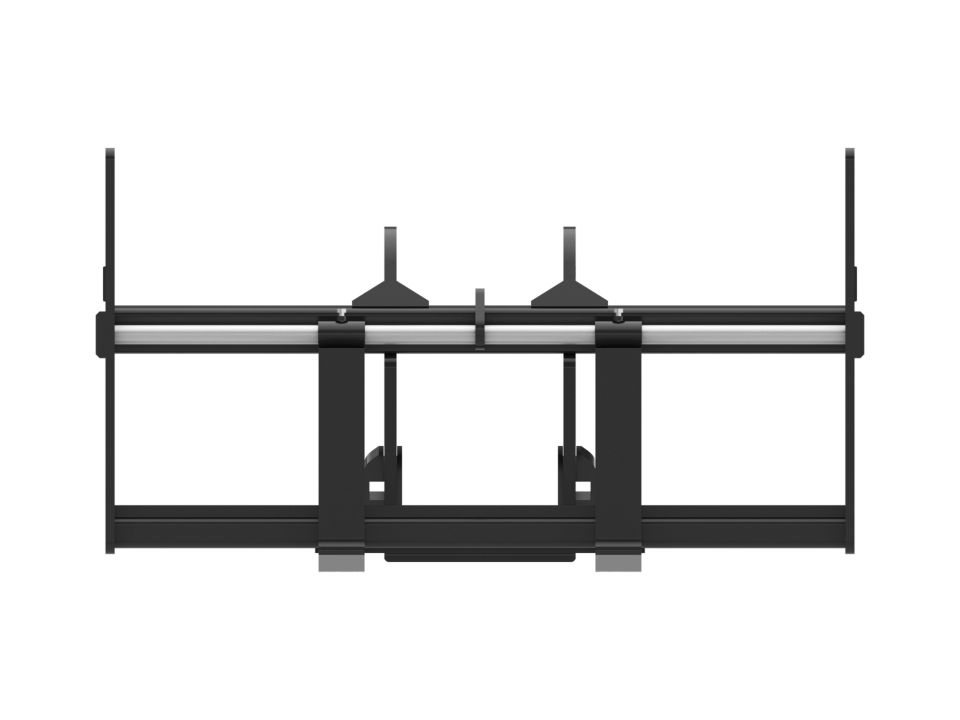

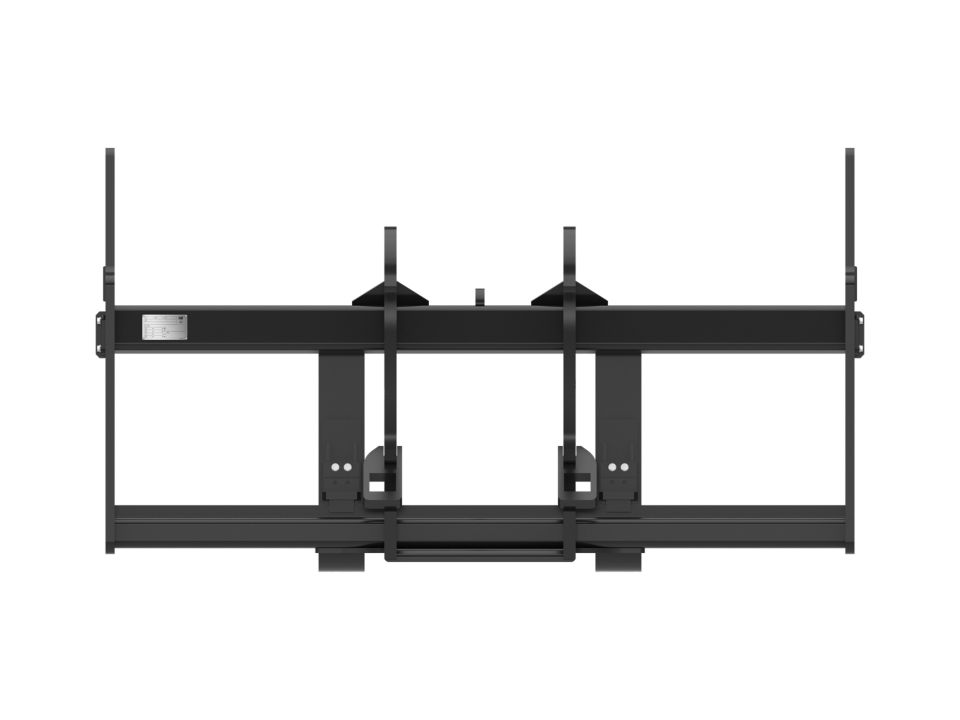

Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
1829 mm (72 in)
Cat® Construction Forks for Small Wheel Loaders are wider than pallet forks and designed for heavy duty applications. Fork tines can be configured to allow tines to either swing or stay in a fixed position.
Product Brochures
Specifications
-
Height54.1 in 1375 mm
-
Width98.3 in 2498 mm
-
Weight1352.3 lb 613.4 kg
-
Tine Length72 in 1829 mm
-
Tine Width5.9 in 150 mm
-
Tine Height30.2 in 768 mm
-
Tine Thickness2.8 in 70 mm
-
Tine Weight415.6 lb 188.5 kg
-
Combined Weight2183.5 lb 990.4 kg
-
Overall Length97.4 in 2473 mm
-
Interface TypeFusion™ Coupler
Benefits
Application
Construction Forks are a highly versatile and rugged tool, designed to move bulky palletized material, pipe and pole, liquid containers, and lumber.
High Back Support
Risers on the upper corners of the frame support oversize loads.
User-configurable
Forks can be configured to allow the tines to either swing or stay in a fixed position, using common hand tools.
