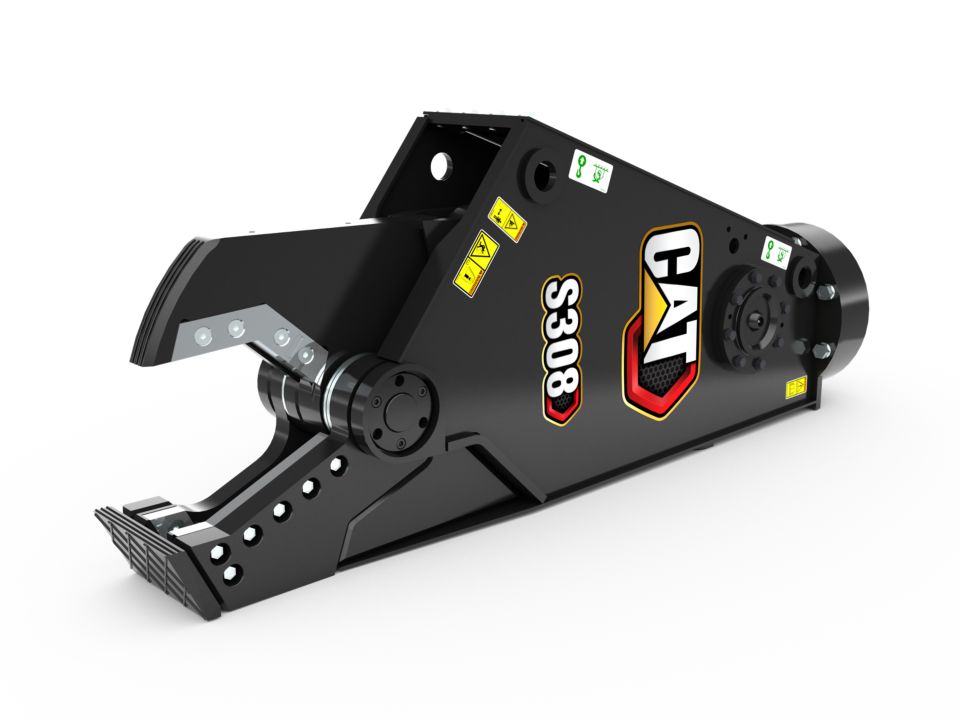

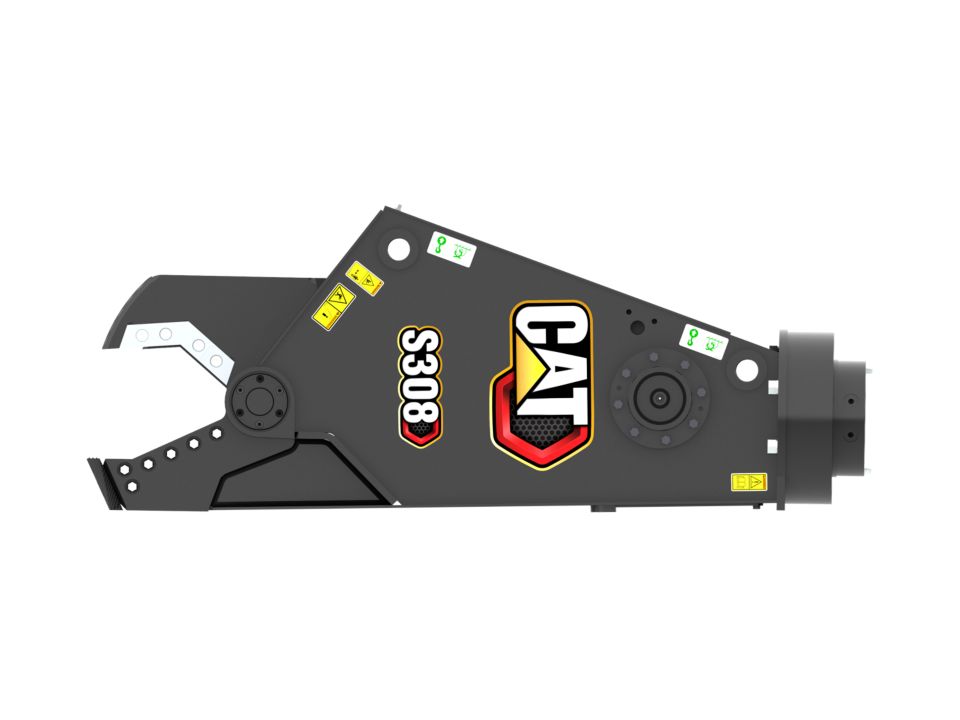

S308

Get in touch

Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Tip Force

43.3 Sh Ton 385 kN
{"Name":"Tip Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"43.3","MetricUnit":"kN","MetricValue":"385","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Rotation

360 Degrees
{"Name":"Rotation","SpecificationId":null,"TextValue":"360 Degrees","EnglishUnit":"in","EnglishValue":"2.4","MetricUnit":"mm","MetricValue":"60","Type":"text","SpecificationGroup":null,"SortOrder":"2"}
Jaw Opening

9.4 in 240 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.4","MetricUnit":"mm","MetricValue":"240","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Jaw Depth

11.4 in 290 mm
{"Name":"Jaw Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"11.4","MetricUnit":"mm","MetricValue":"290","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Jaw Width - Moving

2.4 in 60 mm
{"Name":"Jaw Width - Moving","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.4","MetricUnit":"mm","MetricValue":"60","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Jaw Width - Fixed

9.1 in 230 mm
{"Name":"Jaw Width - Fixed","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"9.1","MetricUnit":"mm","MetricValue":"230","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Cycle Time - Close

2.5 Seconds
{"Name":"Cycle Time - Close","SpecificationId":null,"TextValue":"2.5 Seconds","EnglishUnit":"gal/min","EnglishValue":"15.9","MetricUnit":"l/min","MetricValue":"60","Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Cycle Time - Open

3.5 Seconds
{"Name":"Cycle Time - Open","SpecificationId":null,"TextValue":"3.5 Seconds","EnglishUnit":"in","EnglishValue":"11.4","MetricUnit":"mm","MetricValue":"290","Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Rotation Circuit - Maximum Flow

5.3 gpm 20 L/min
{"Name":"Rotation Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"5.3","MetricUnit":"L/min","MetricValue":"20","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Rotation Circuit - Maximum Relief Pressure

2900.8 psi 20000 kPa
{"Name":"Rotation Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2900.8","MetricUnit":"kPa","MetricValue":"20000","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Cutting Circuit - Maximum Flow

15.9 gpm 60 L/min
{"Name":"Cutting Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"15.9","MetricUnit":"L/min","MetricValue":"60","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}
Cutting Circuit - Maximum Relief Pressure

3626 psi 25000 kPa
{"Name":"Cutting Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3626","MetricUnit":"kPa","MetricValue":"25000","Type":"measurement","SpecificationGroup":null,"SortOrder":"12"}
Throat Force

203.7 Sh Ton 1812 kN
{"Name":"Throat Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"203.7","MetricUnit":"kN","MetricValue":"1812","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Apex Force

73.4 Sh Ton 653 kN
{"Name":"Apex Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"73.4","MetricUnit":"kN","MetricValue":"653","Type":"measurement","SpecificationGroup":null,"SortOrder":"14"}
Weight

1212.5 lb 550 kg
{"Name":"Weight","SpecificationId":null,"TextValue":"2.5 Seconds","EnglishUnit":"lb","EnglishValue":"1212.5","MetricUnit":"kg","MetricValue":"550","Type":"measurement","SpecificationGroup":null,"SortOrder":"15"}
Height

26.3 in 667 mm
{"Name":"Height","SpecificationId":null,"TextValue":"3.5 Seconds","EnglishUnit":"in","EnglishValue":"26.3","MetricUnit":"mm","MetricValue":"667","Type":"measurement","SpecificationGroup":null,"SortOrder":"16"}
Length

67.3 in 1709 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"67.3","MetricUnit":"mm","MetricValue":"1709","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}
Width

15.4 in 390 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"15.4","MetricUnit":"mm","MetricValue":"390","Type":"measurement","SpecificationGroup":null,"SortOrder":"18"}

Benefits

Jaw Design

Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.

360° Rotation

Operator can spin the shear 360 degrees in either direction to quickly position the jaws for a cut.

Reversible Knives

The five main, side and front knives are fully reversible with four effective cutting edges.

Easy Maintenance

Large access panels on the top and bottom of the shear housing make it easier to service inside components.

Protected Cylinder

Design of the shear housing and cylinder rod guarding provides full protection of the cylinder throughout the complete cutting cycle.

Jaw Lockout Pin

Included with every shear to provide confidence that working in the jaw area is safe.

Speed Valve

Provides optimum flow regeneration to improve cycle times and machine productivity.

Mounting Options

Mounting options for the S308 Shear include a skid steer loader mounting bracket, a 7/8/9 ton stick mount, and a 5/6 ton boom mount bracket.

Included Service Kit

Each shear comes included with a service kit and tool box.
